LabGuy's World: Sony SV-300 Service Manual Insert
New Addition! 03.05.12
This page may take some time to download. Please, be patient. It is worth the wait. Feel free to save these files and print them out for your own personal use. If you would like to use these photos or text commercially or on your web site, please contact me first at [THIS ADDRESS].
Click to view full size. Back button to return.

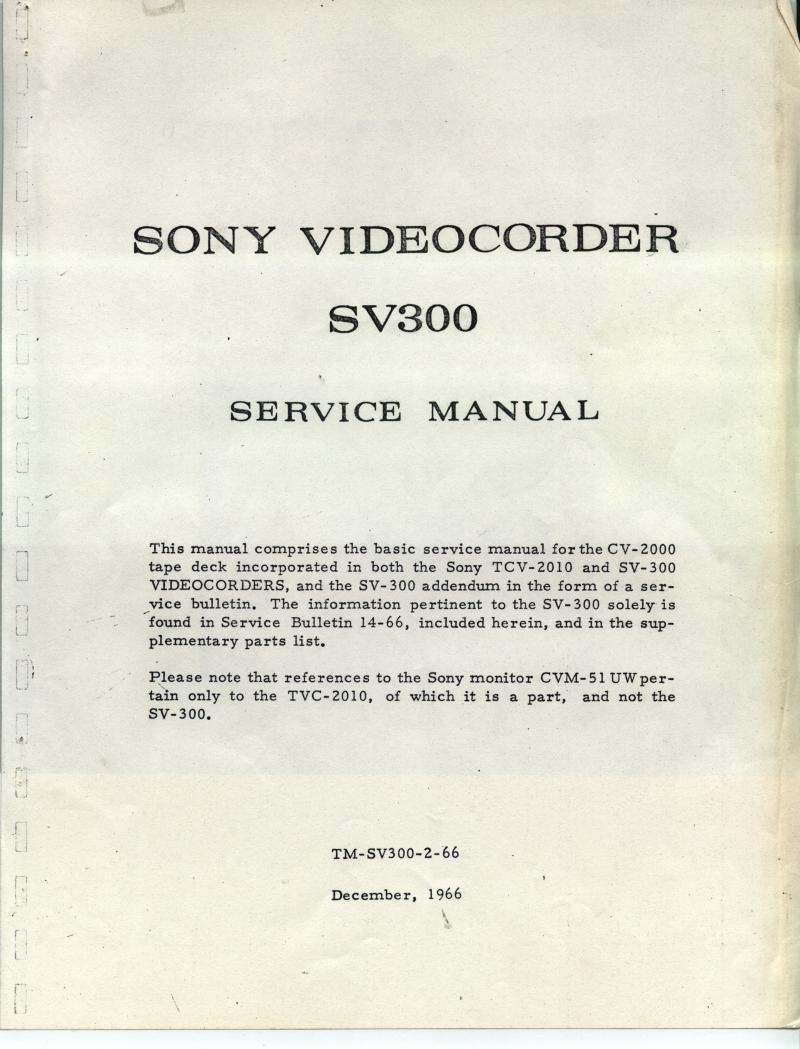

Front Cover		 Click to view full size. Back button to return.

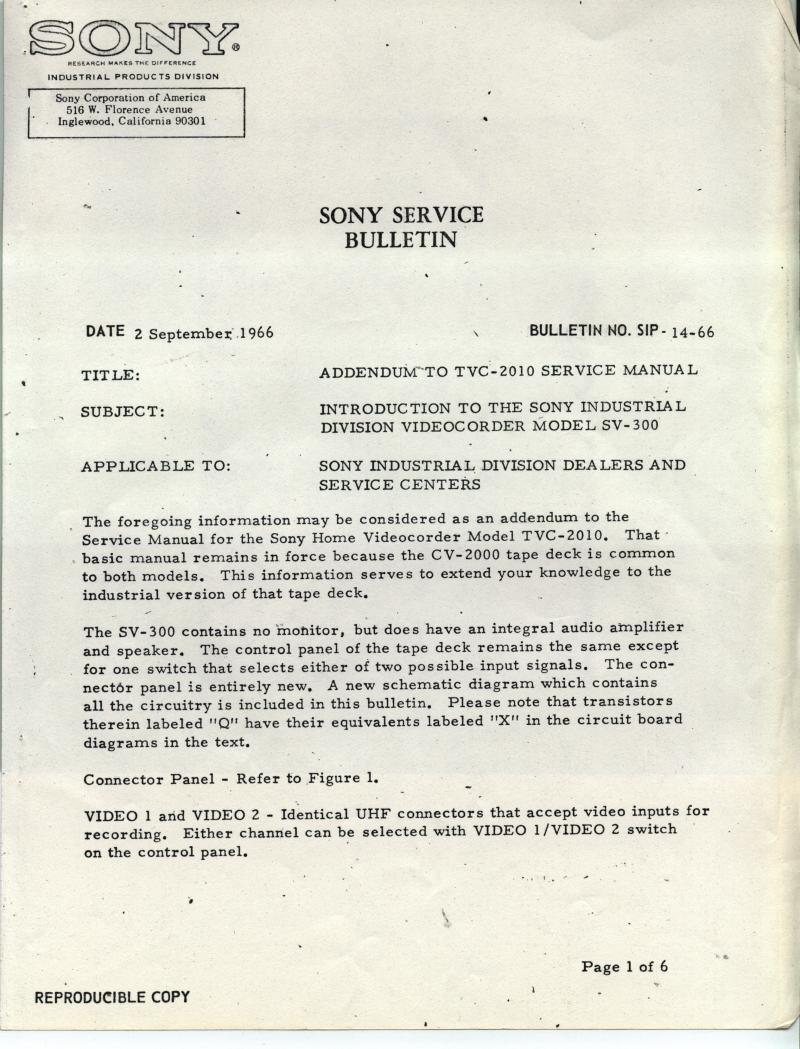

Page 1
Click to view full size. Back button to return.

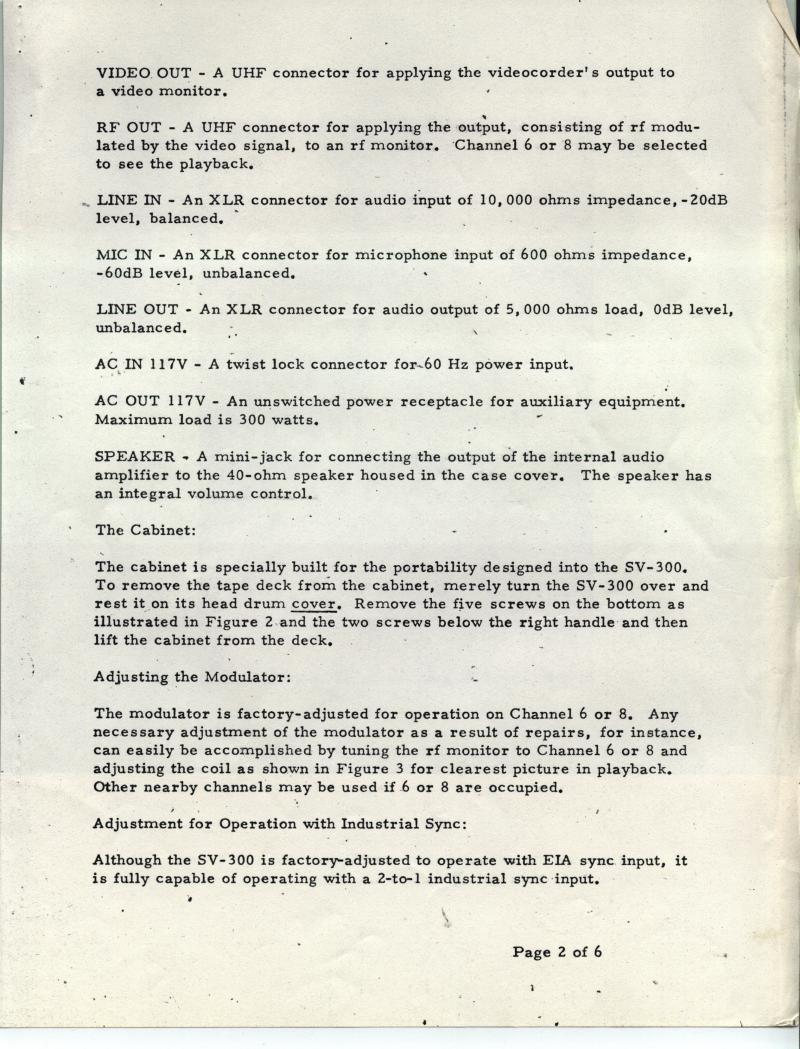

Page 2		 Click to view full size. Back button to return.

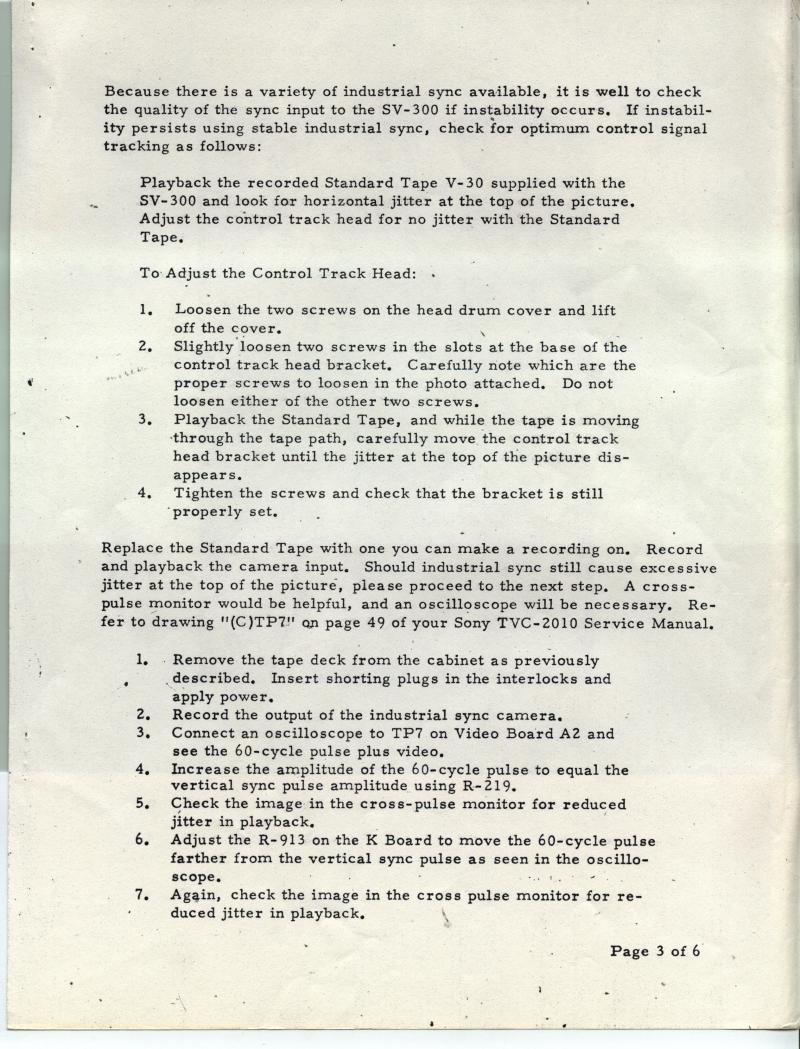

Page 3
Click to view full size. Back button to return.

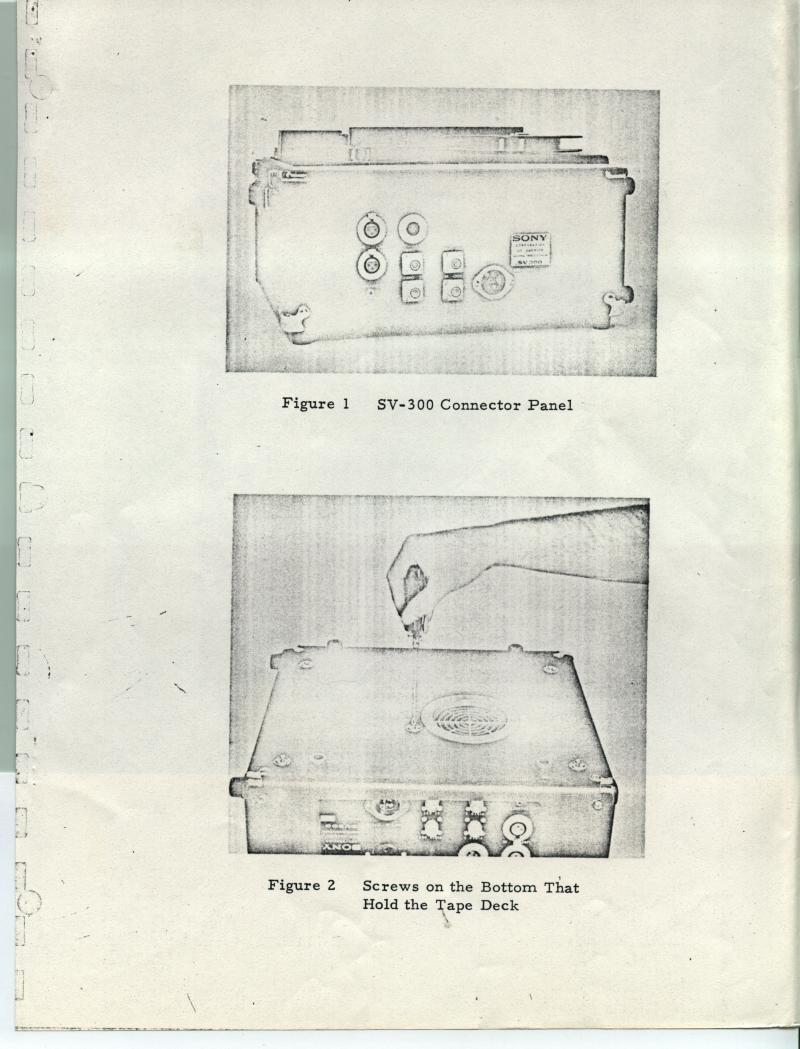

Page 4		 Click to view full size. Back button to return.

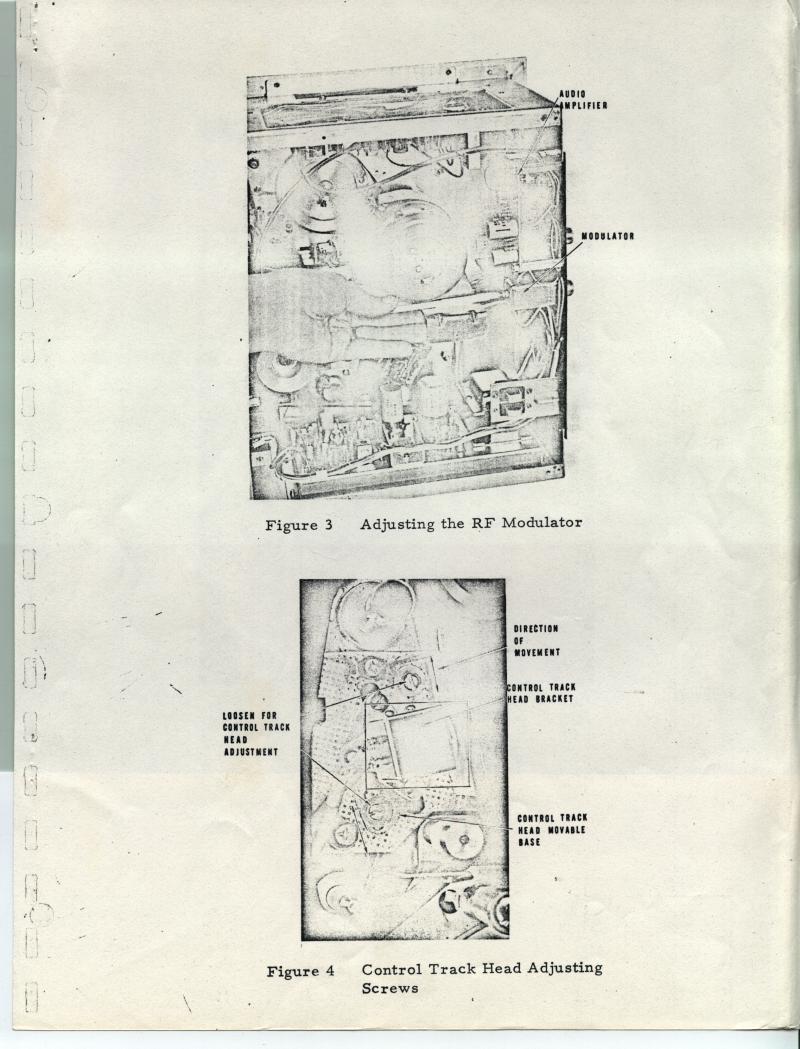

Page 5
Click to view full size. Back button to return.

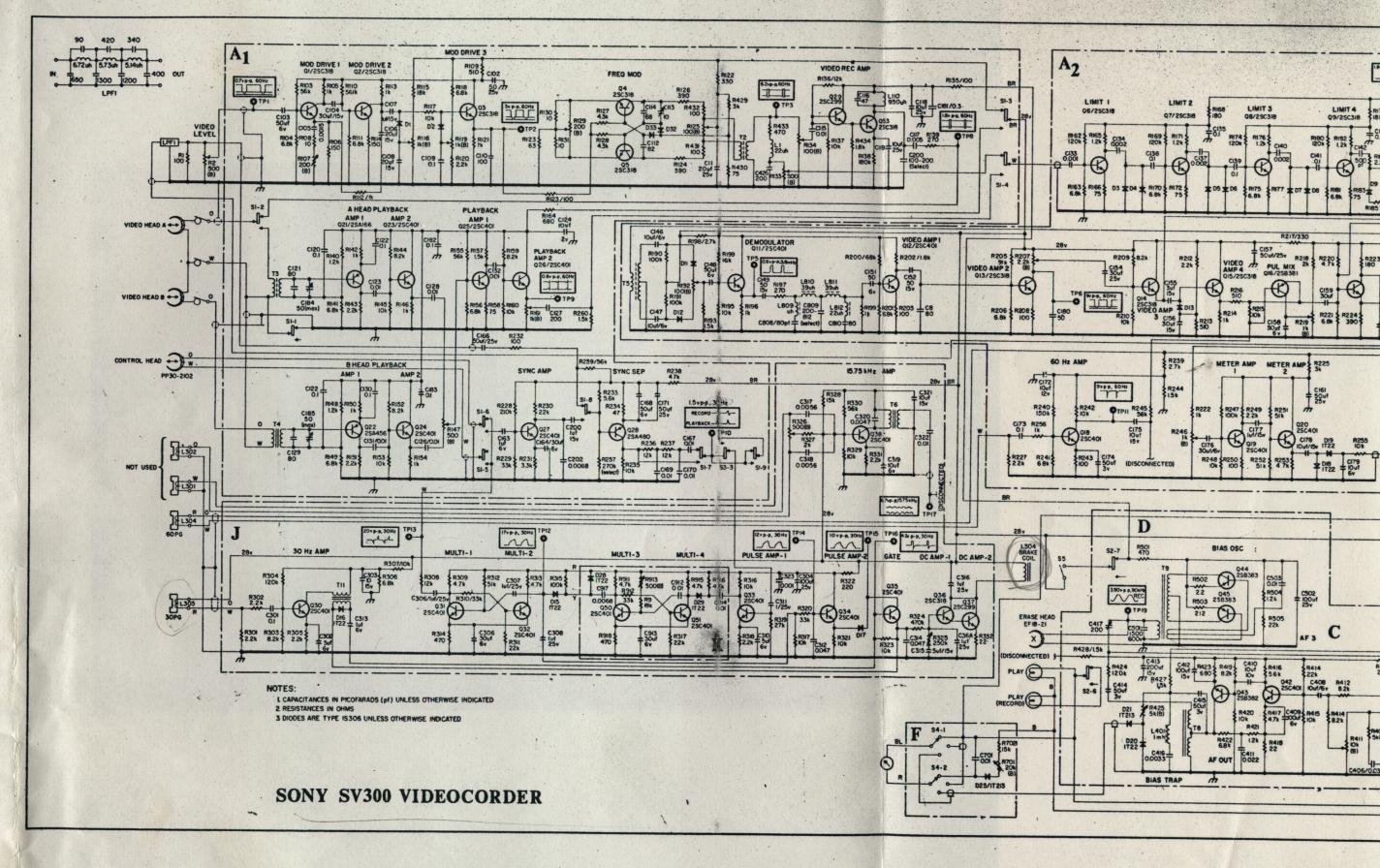

Schematic - Left Side		 Click to view full size. Back button to return.

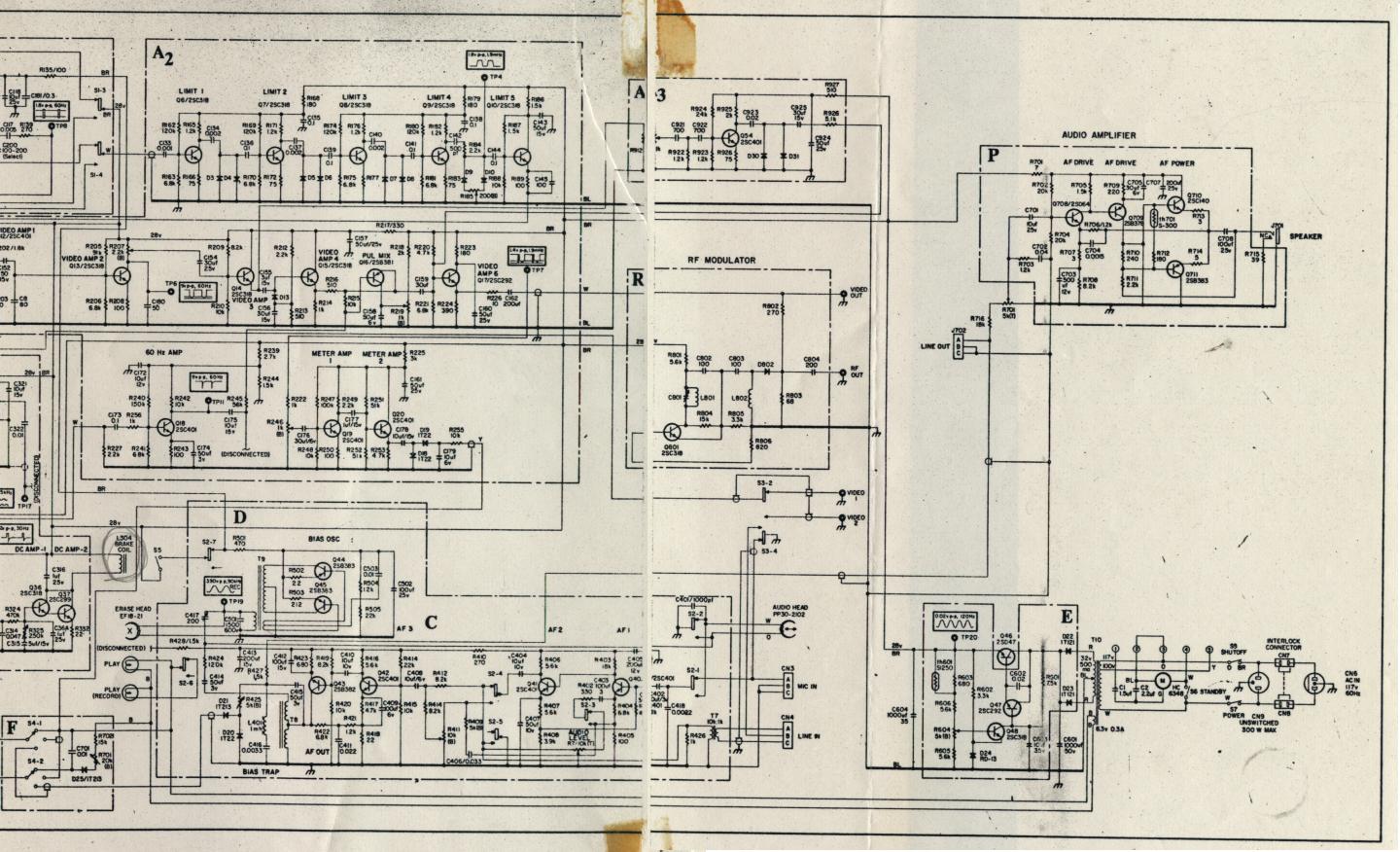

Schematic - Right Side
