LabGuy's World: IVC-9000 Broadcast Video Recorder: four technical papers
New Addition! 03.06.04

This page may take some time to download. Please, be patient. It is worth the wait. Feel free to save these files and print them out for your own personal use. If you would like to use these photos or text commercially or on your web site, please contact me first at [THIS ADDRESS]. This material was contributed by William Meyer.
Click to view full size. Back button to return.

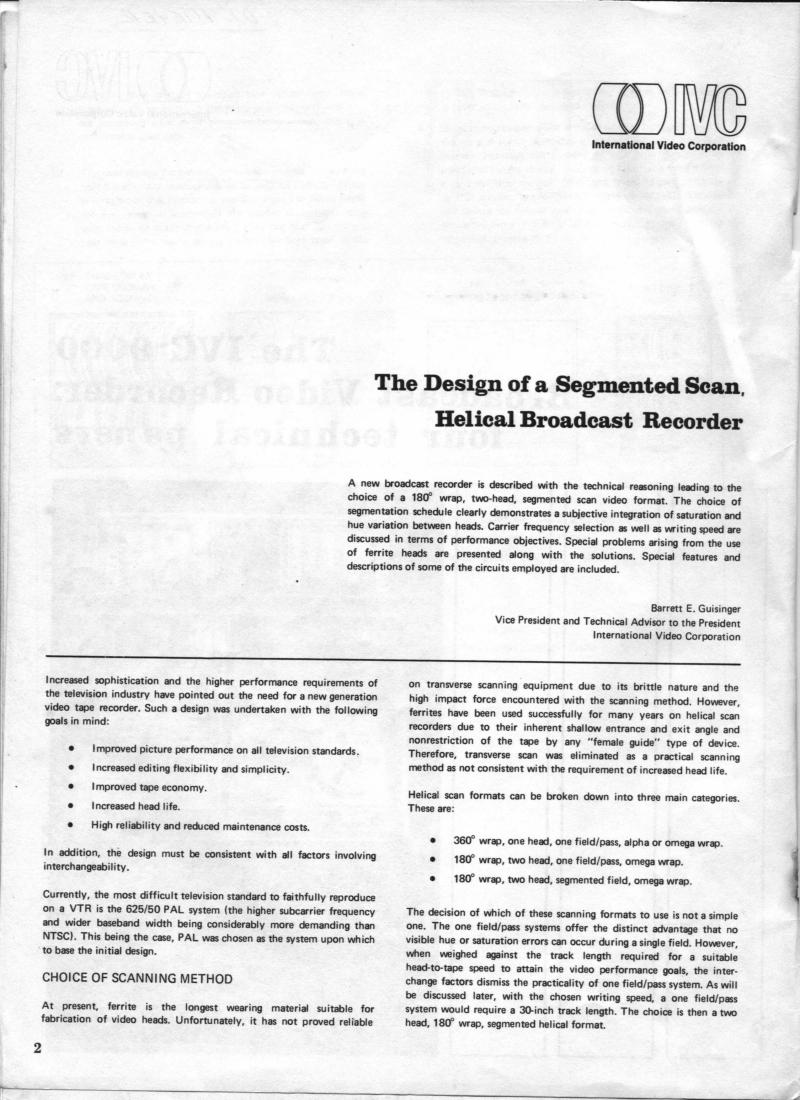

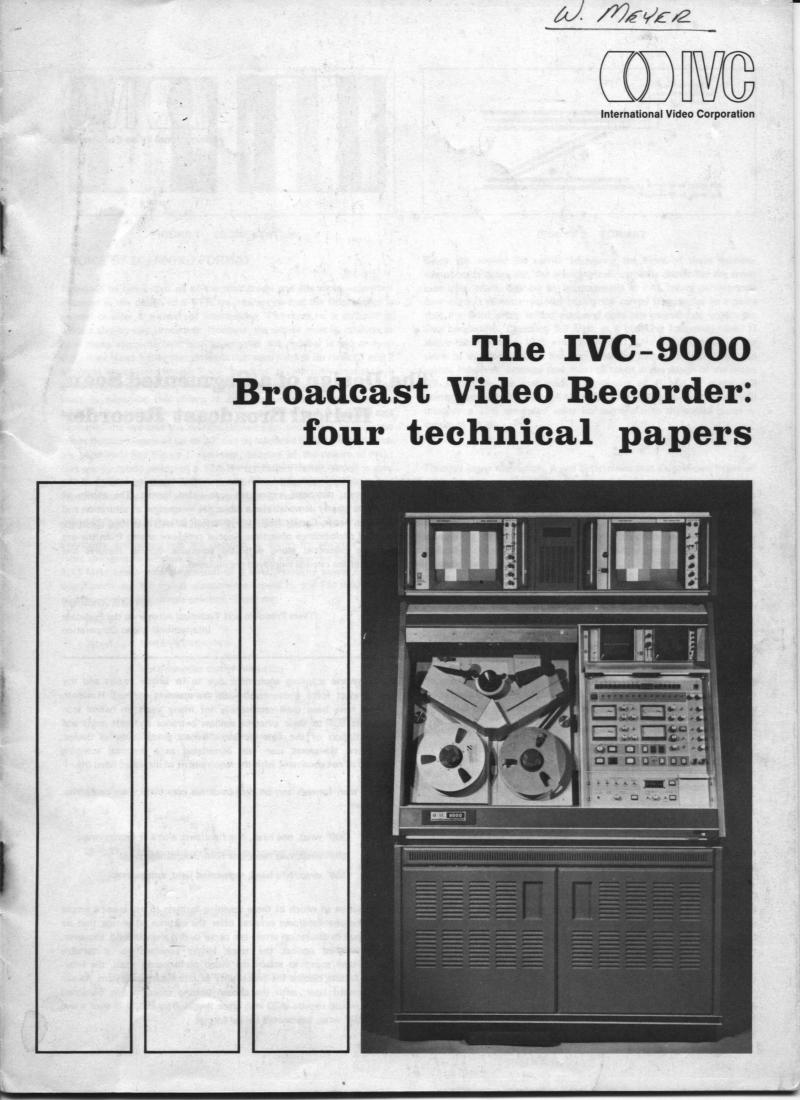

Front Cover
Click to view full size. Back button to return.
Page 2
Click to view full size. Back button to return.

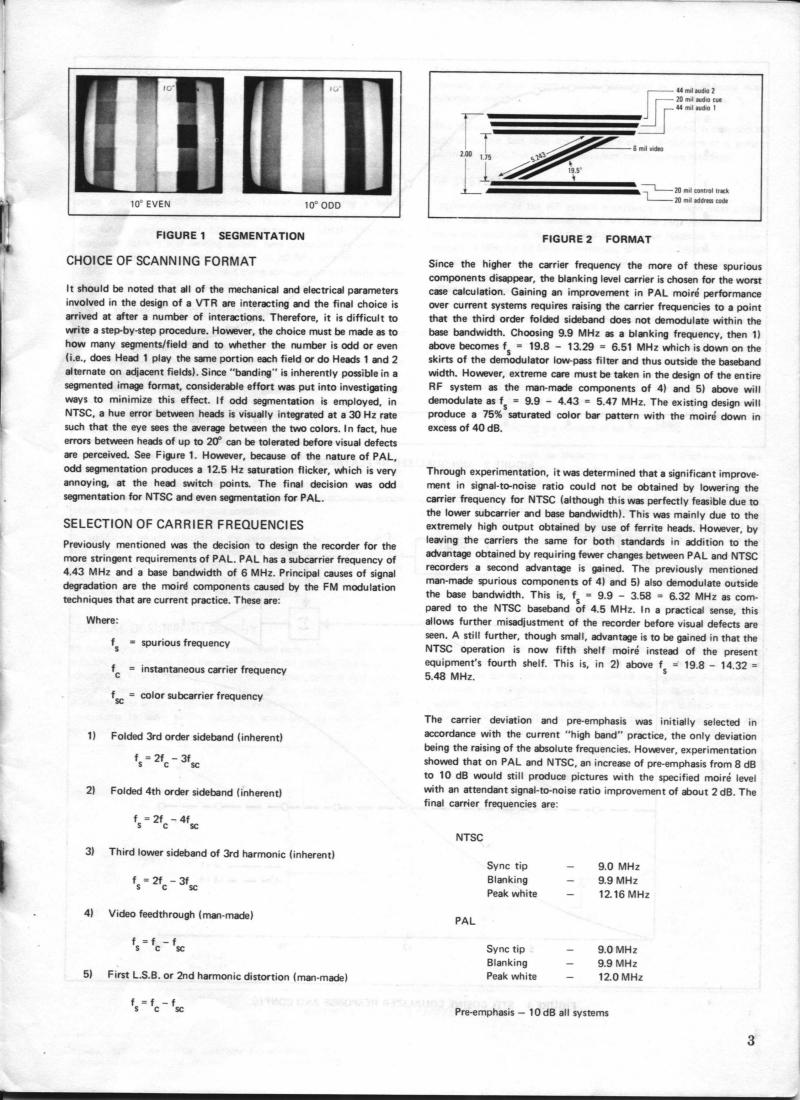

Page 3
Click to view full size. Back button to return.

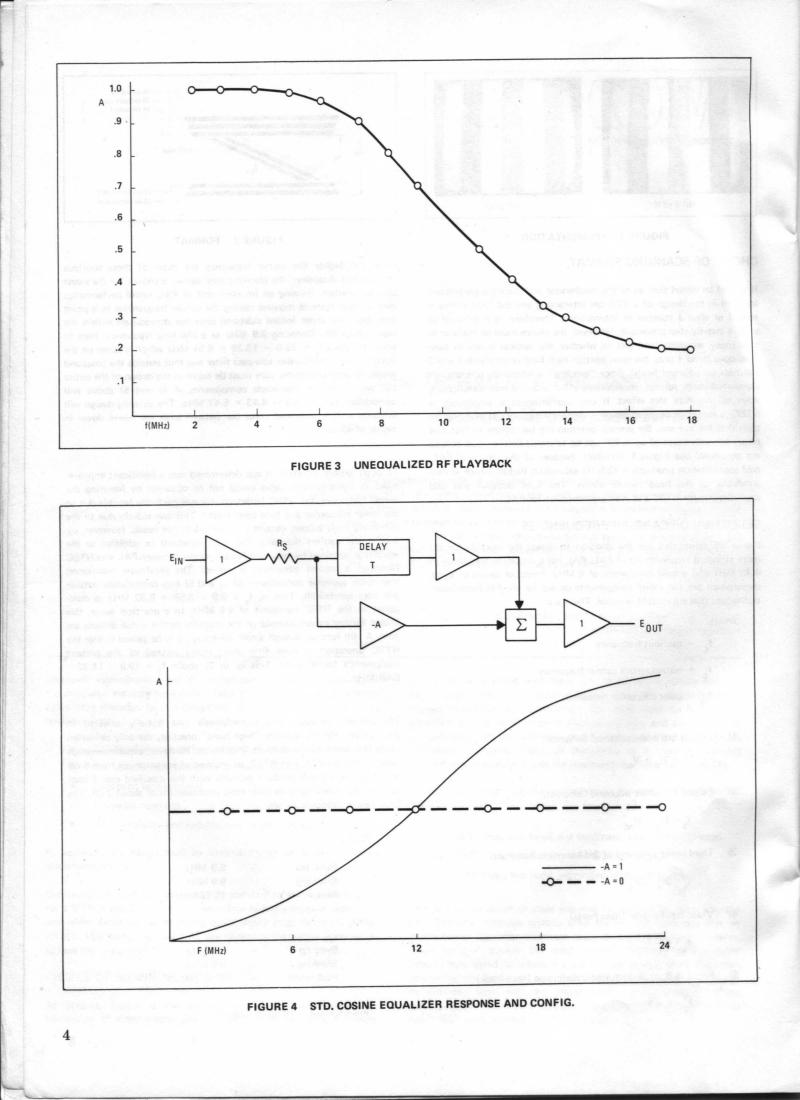

Page 4
Click to view full size. Back button to return.

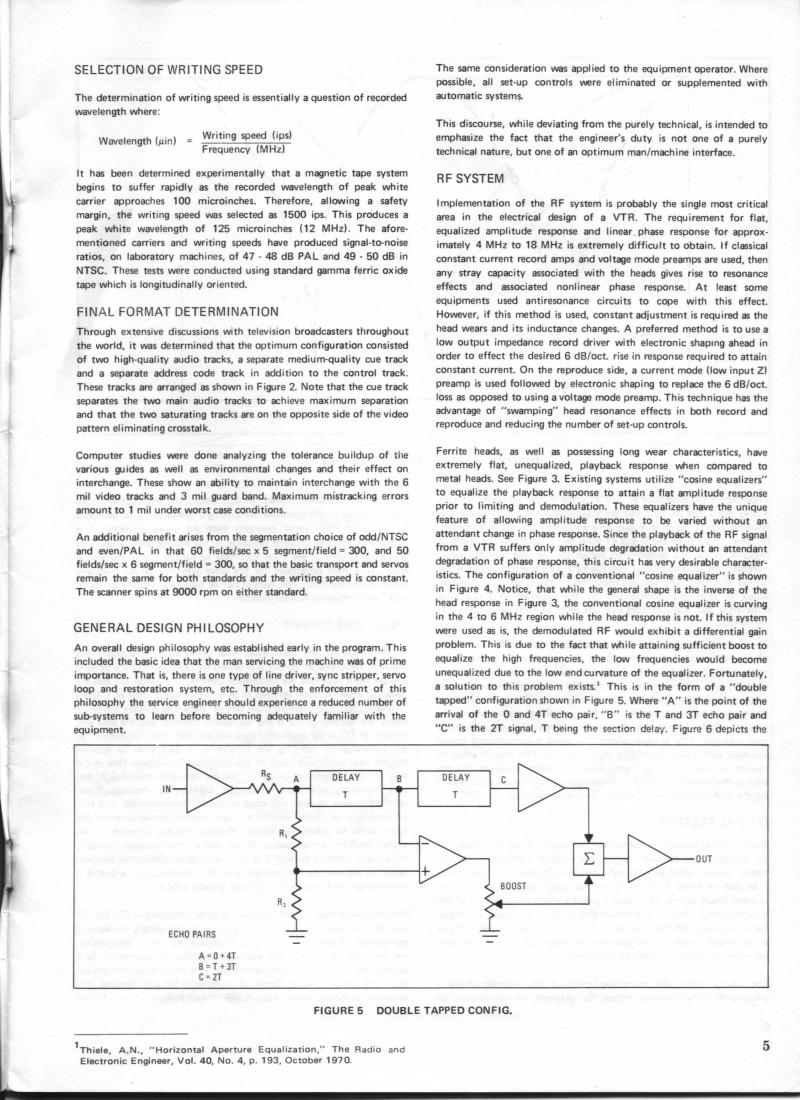

Page 5
Click to view full size. Back button to return.

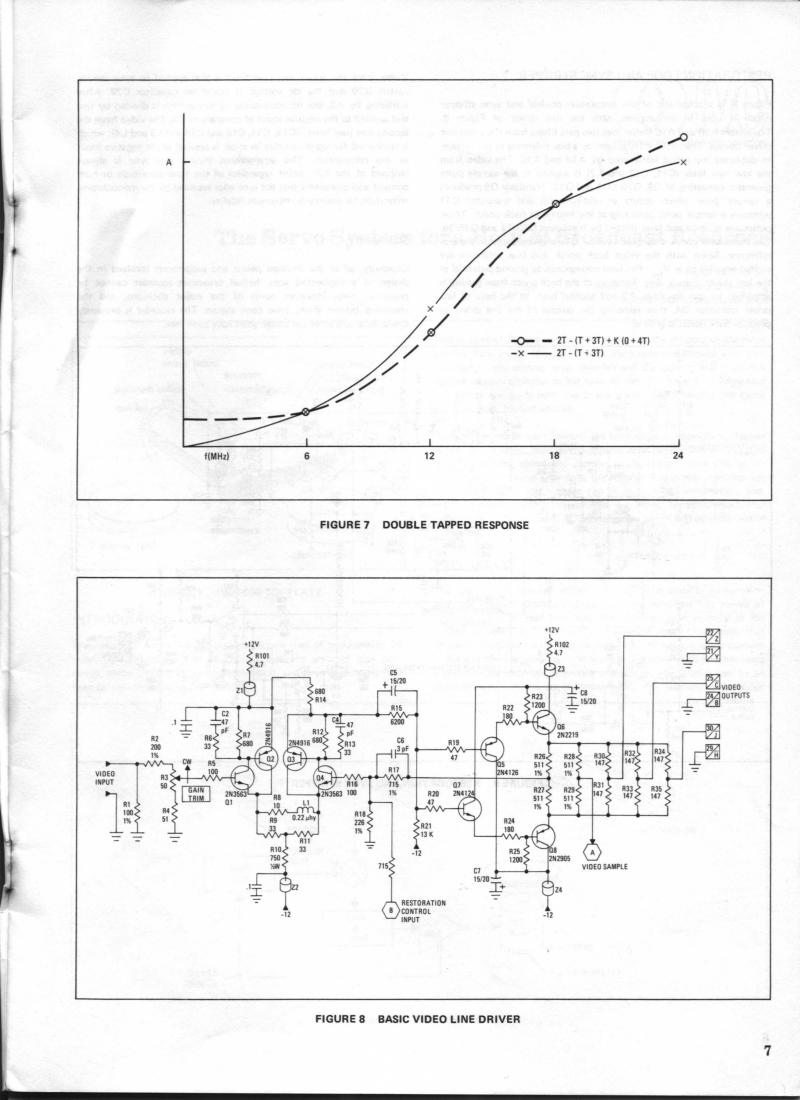

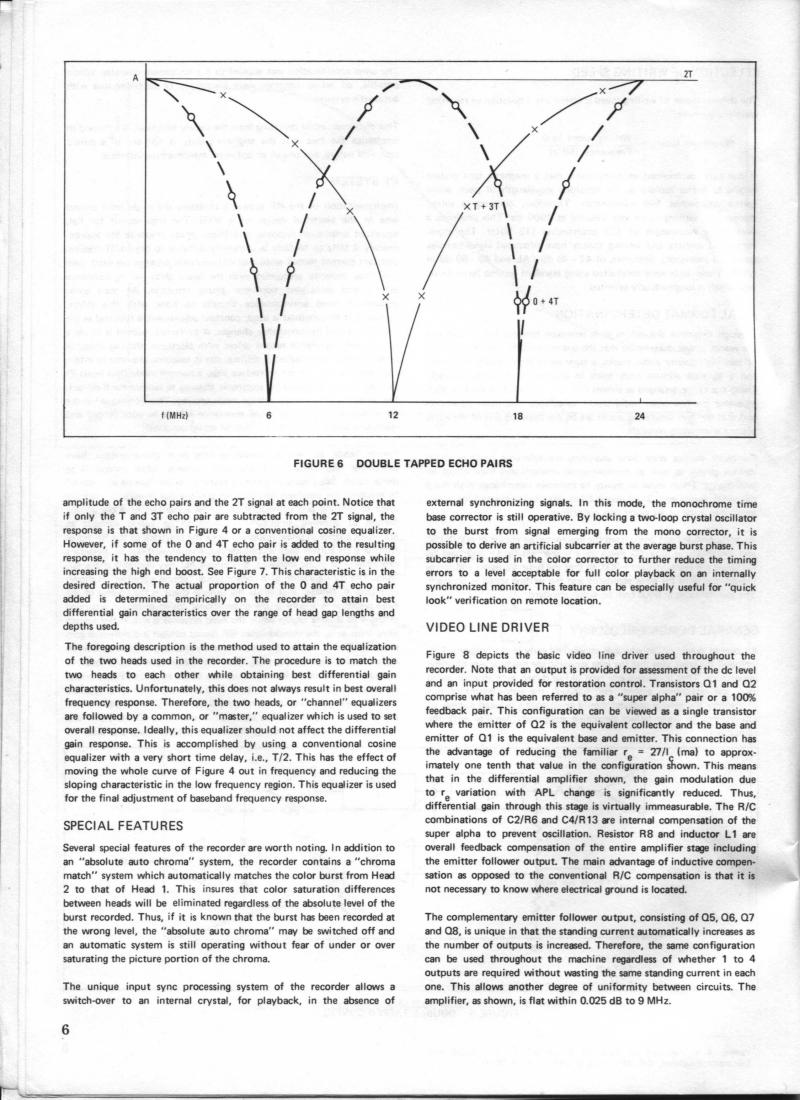

Page 6
Click to view full size. Back button to return.
Page 7
Click to view full size. Back button to return.

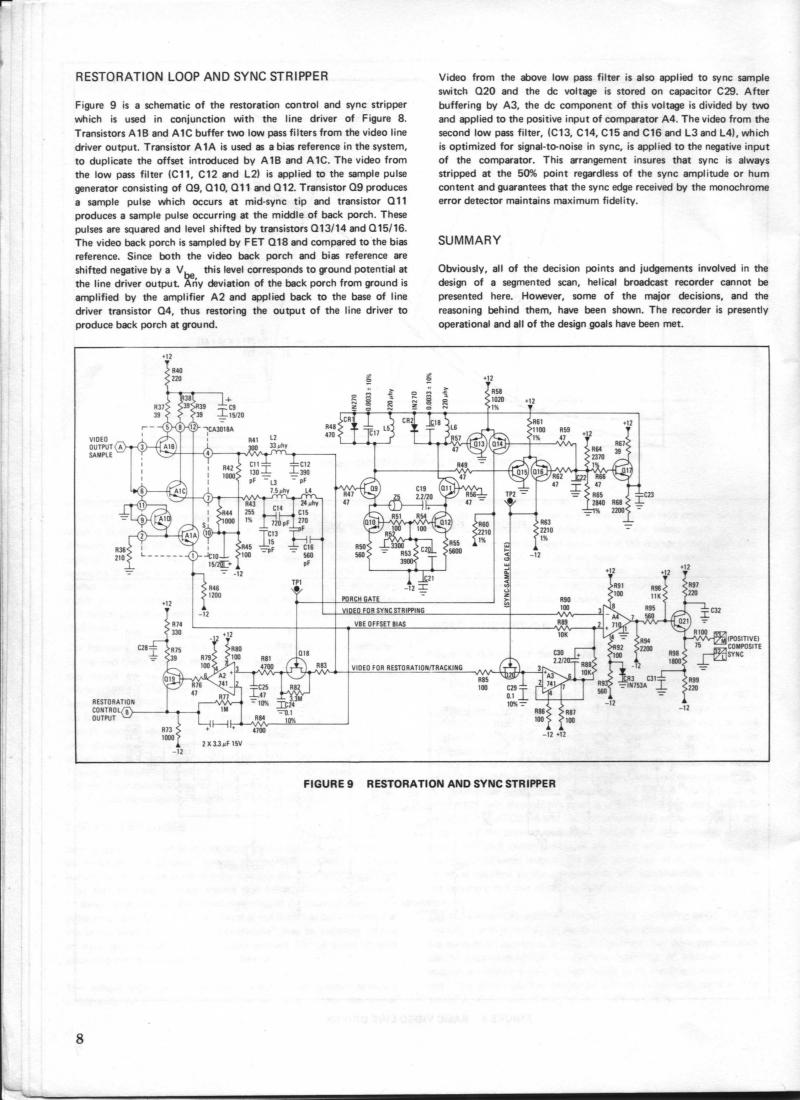

Page 8
Click to view full size. Back button to return.

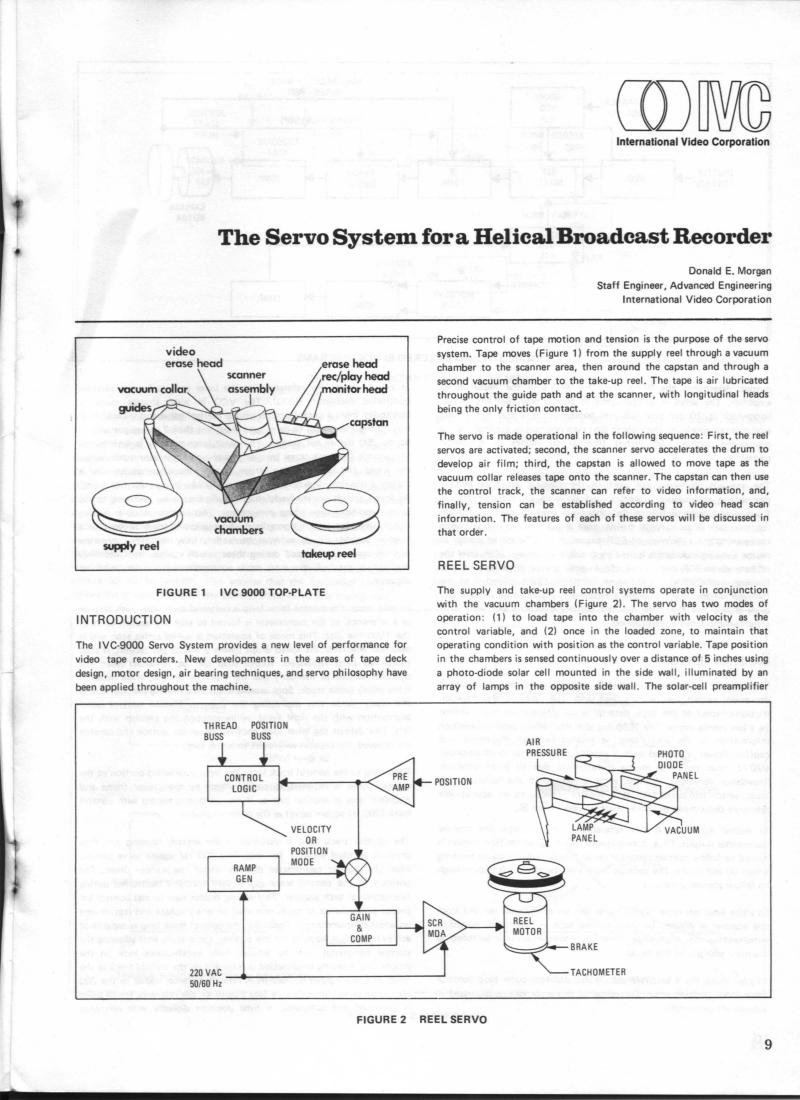

Page 9
Click to view full size. Back button to return.

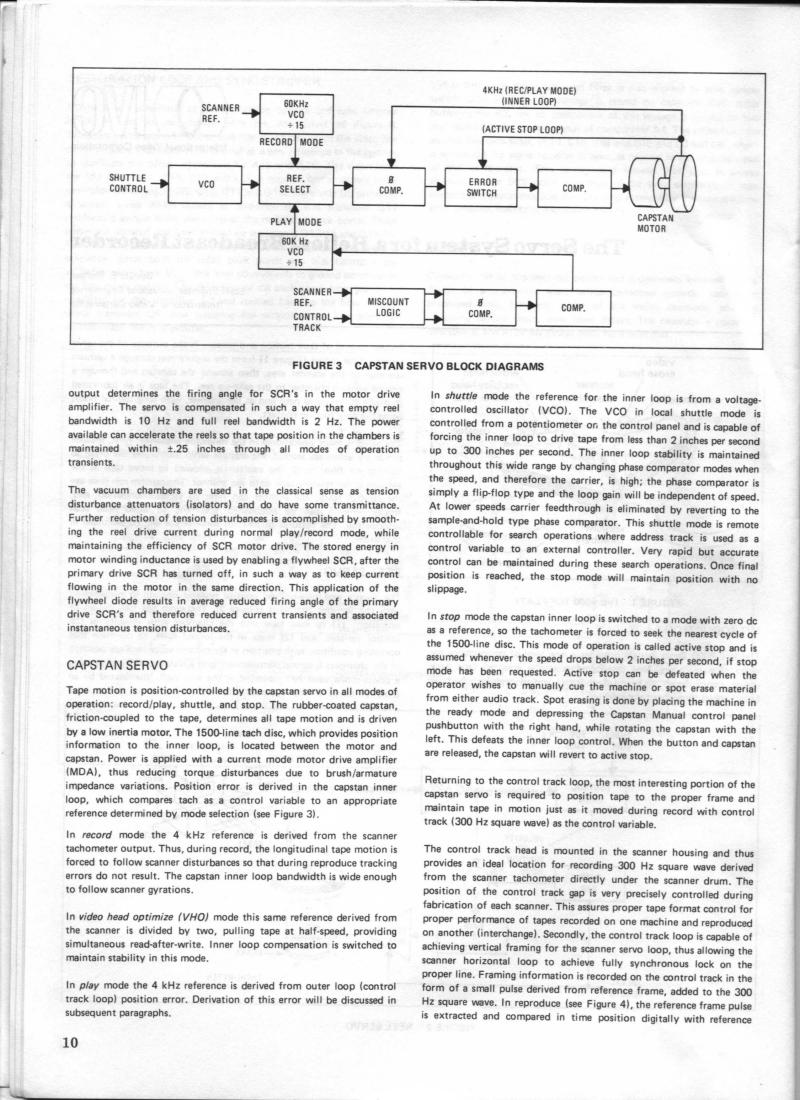

Page 10
Click to view full size. Back button to return.

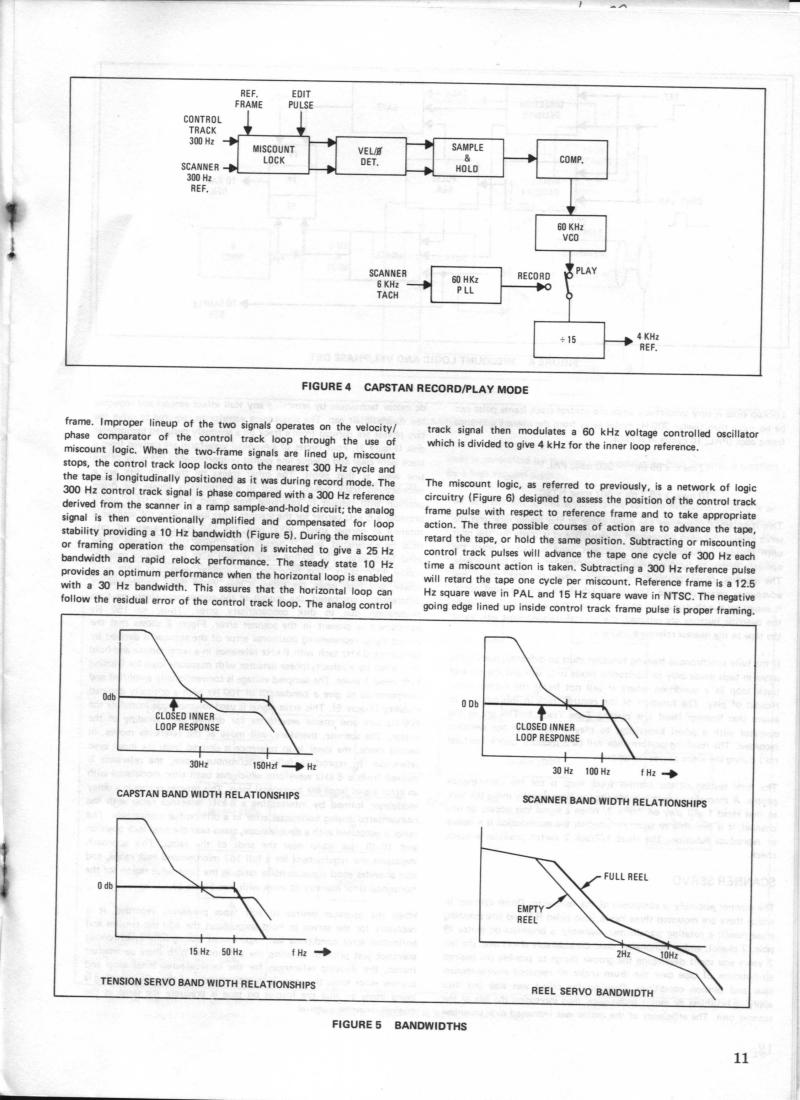

Page 11
Click to view full size. Back button to return.

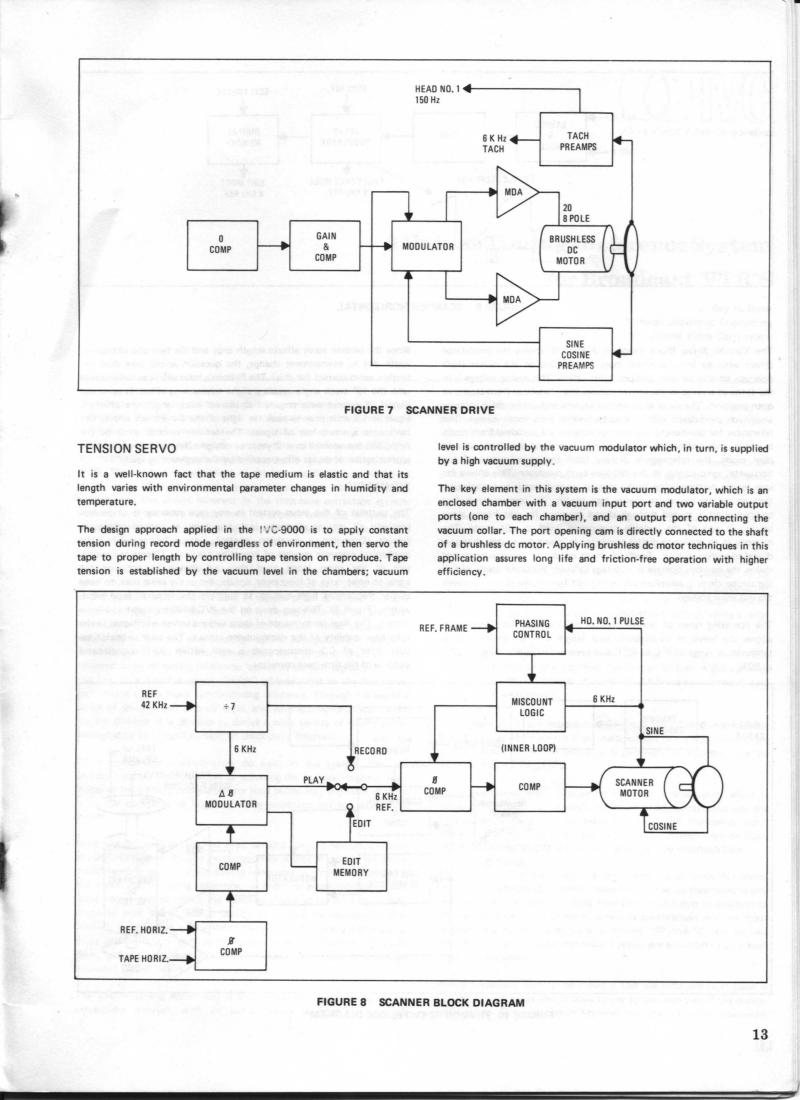

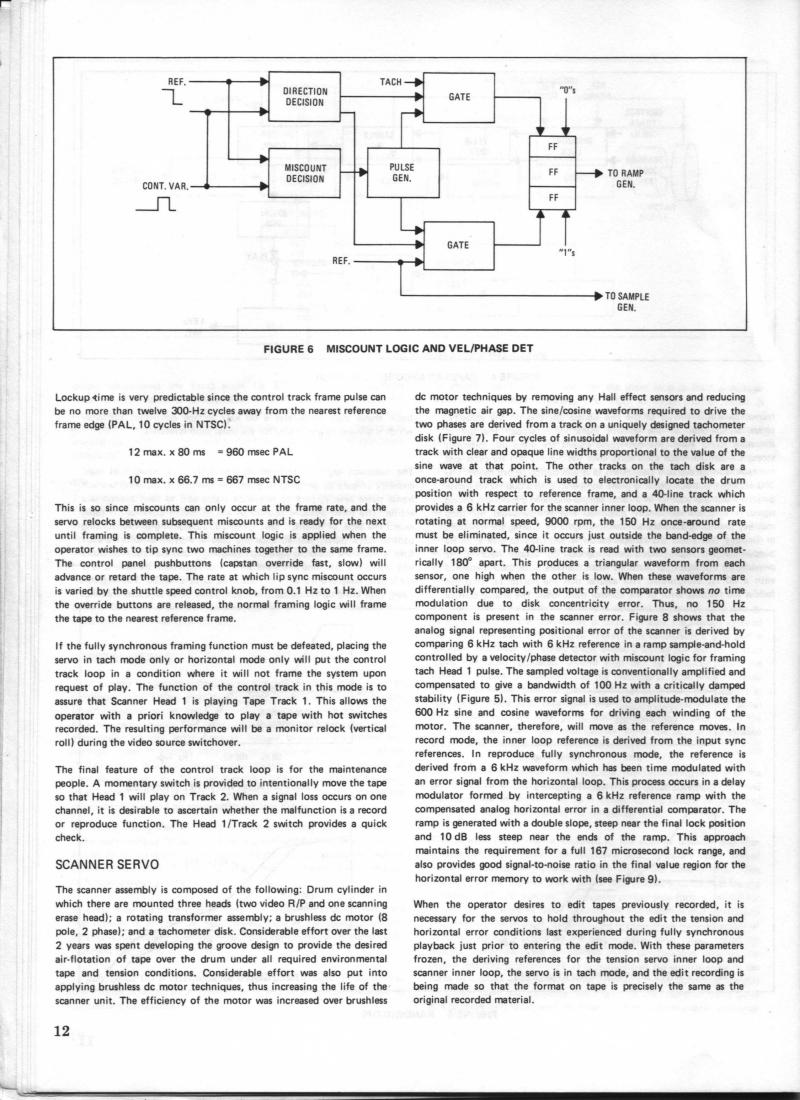

Page 12
Click to view full size. Back button to return.
Page 13
Click to view full size. Back button to return.

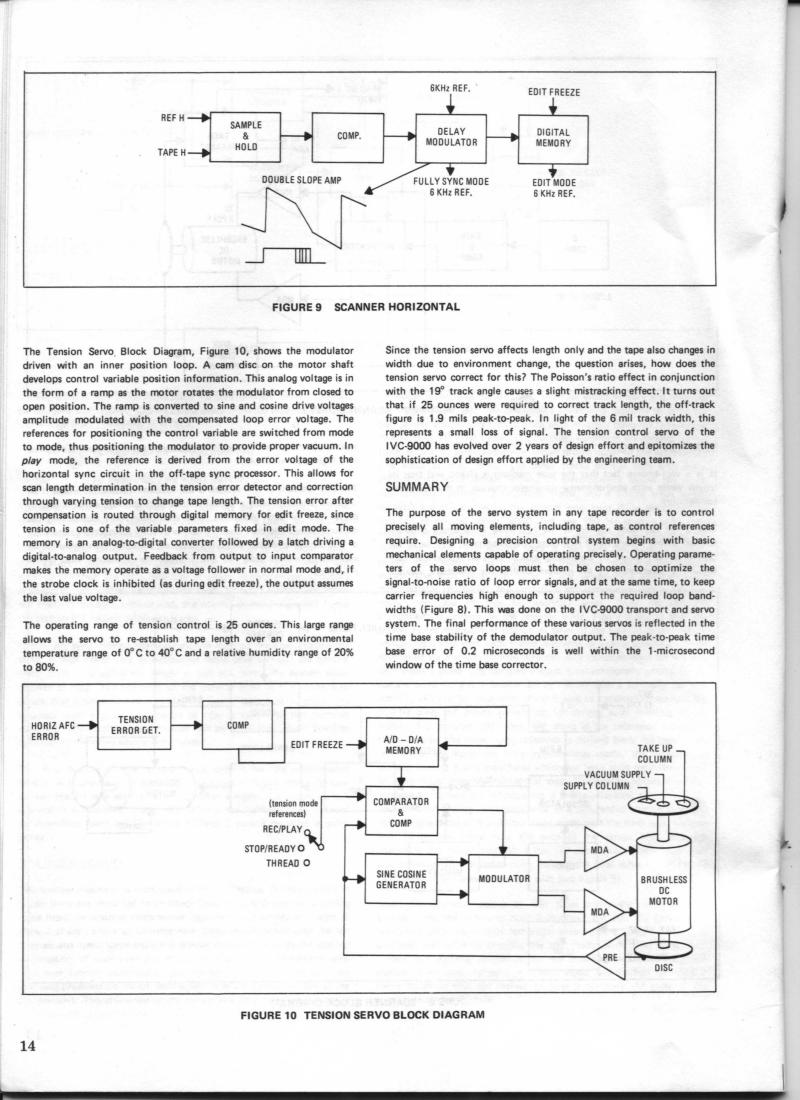

Page 14
Click to view full size. Back button to return.

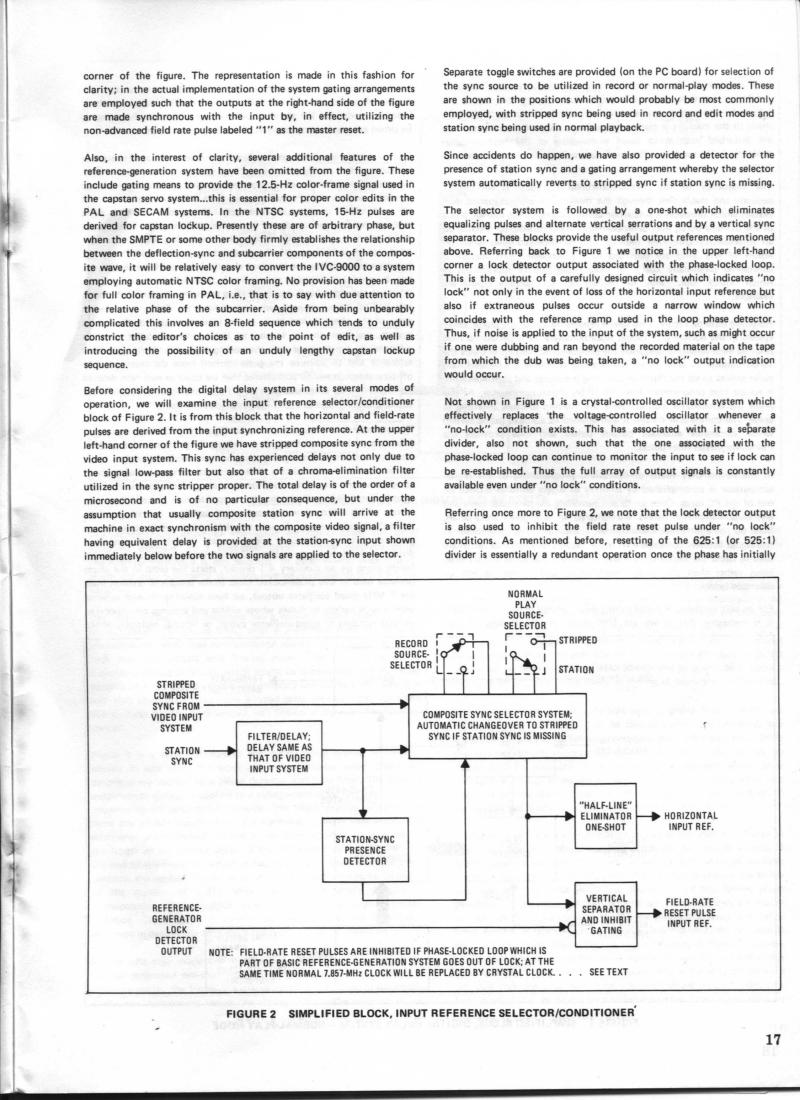

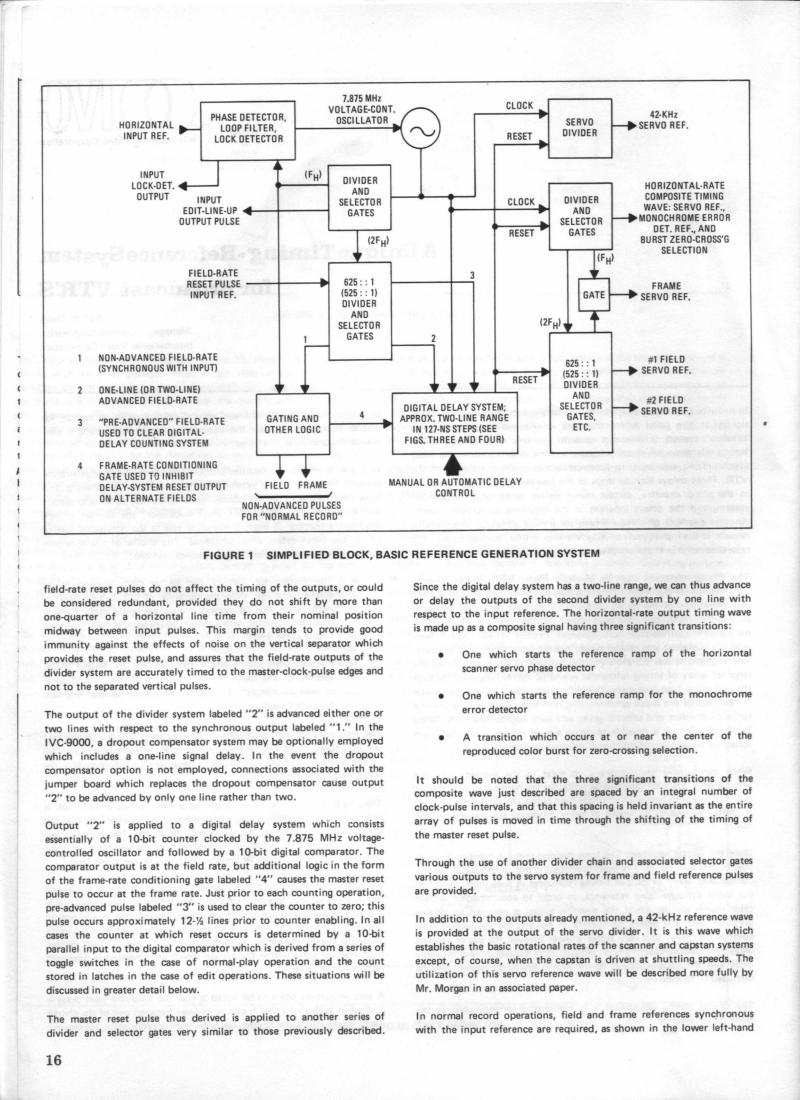

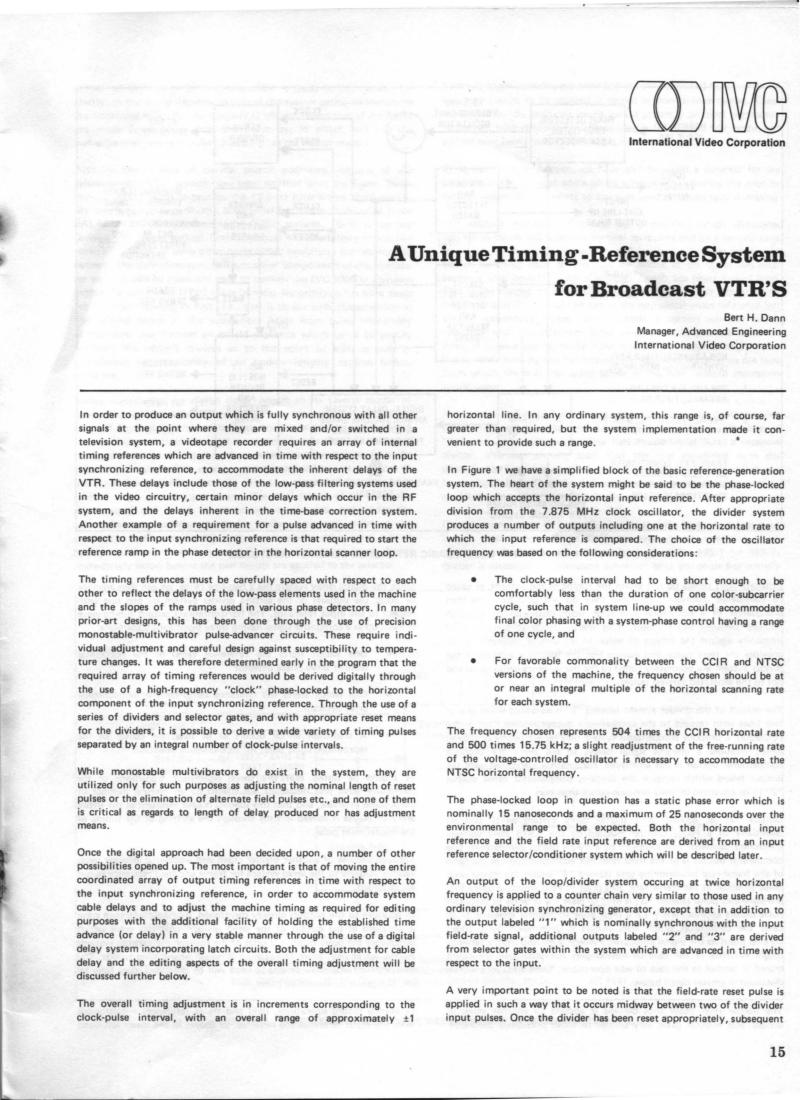

Page 15
Click to view full size. Back button to return.

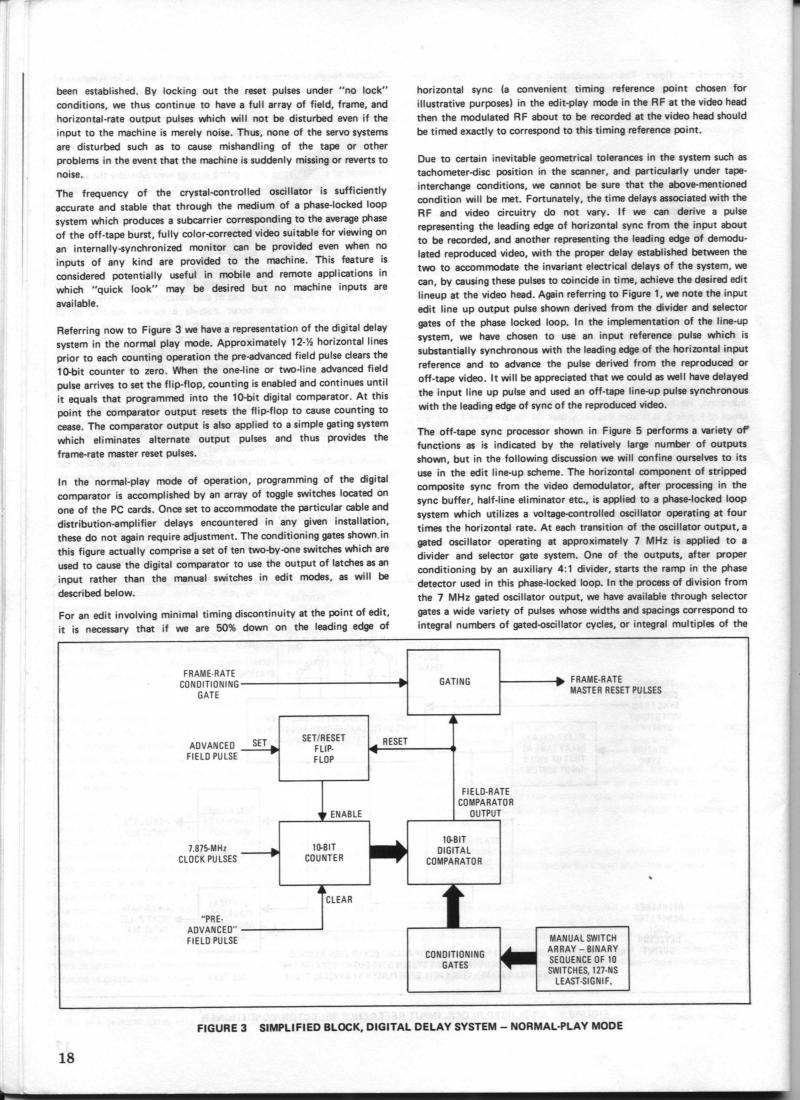

Page 16
Click to view full size. Back button to return.

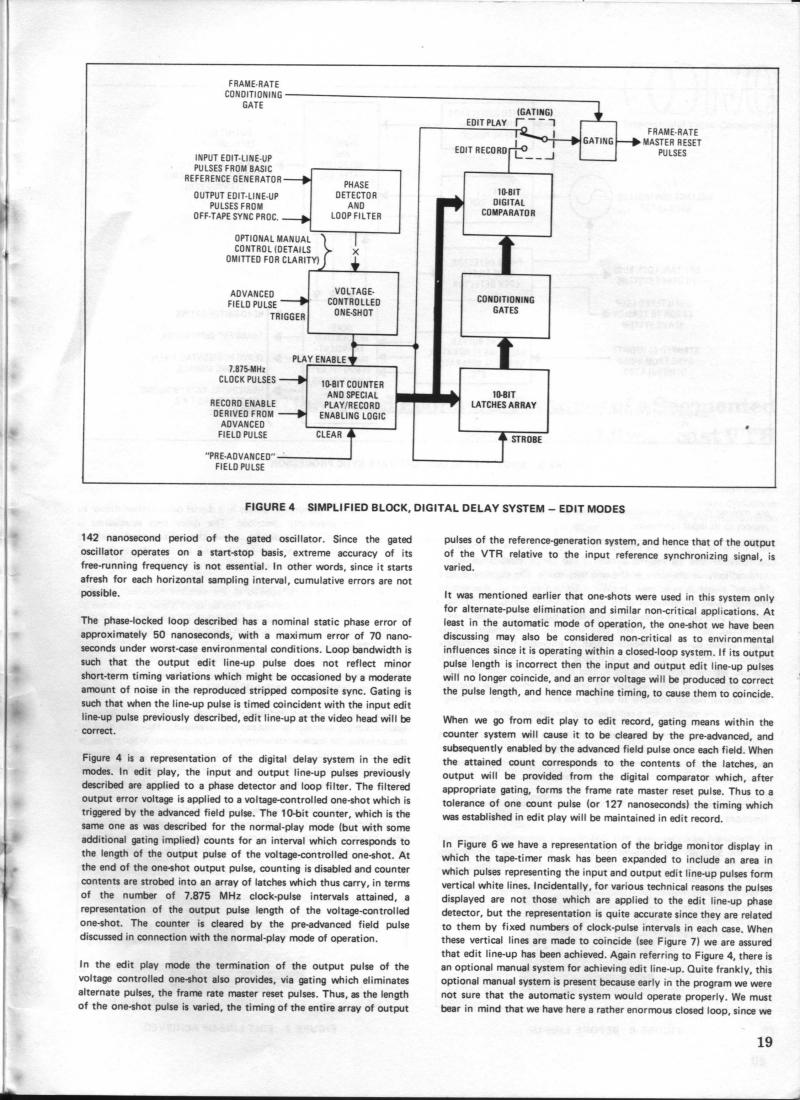

Page 17
Click to view full size. Back button to return.

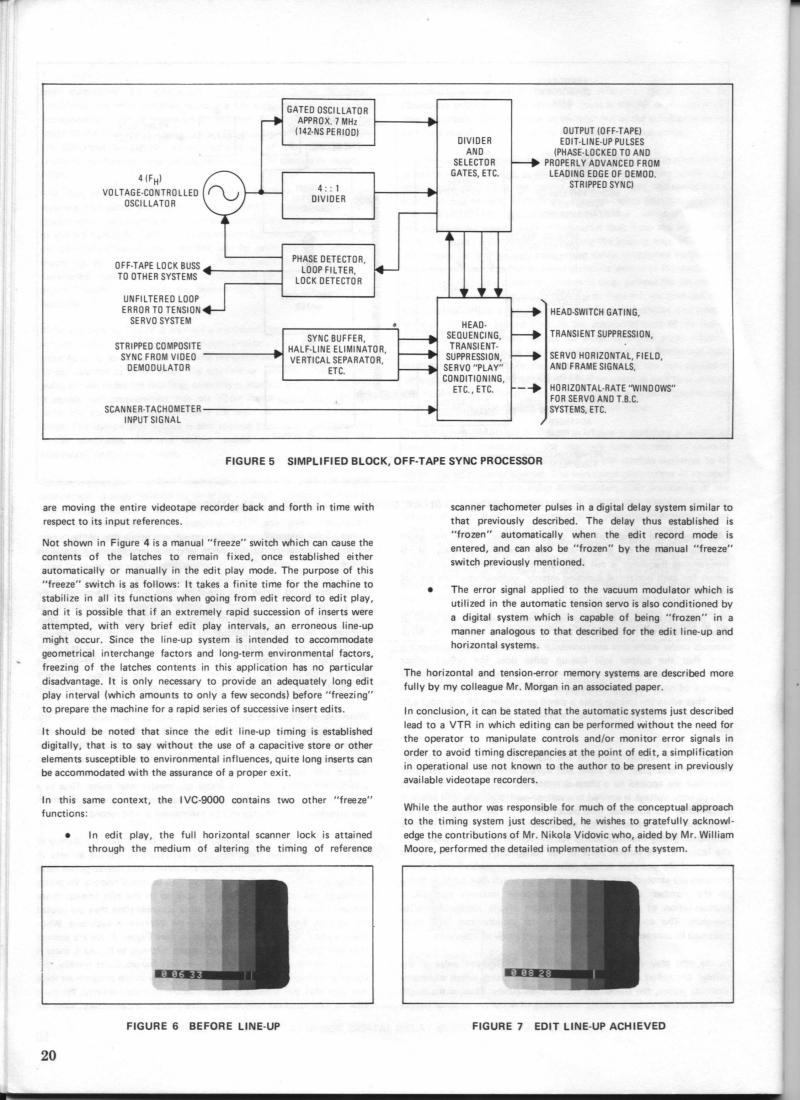

Page 18
Click to view full size. Back button to return.
Page 19
Click to view full size. Back button to return.
Page 20
Click to view full size. Back button to return.

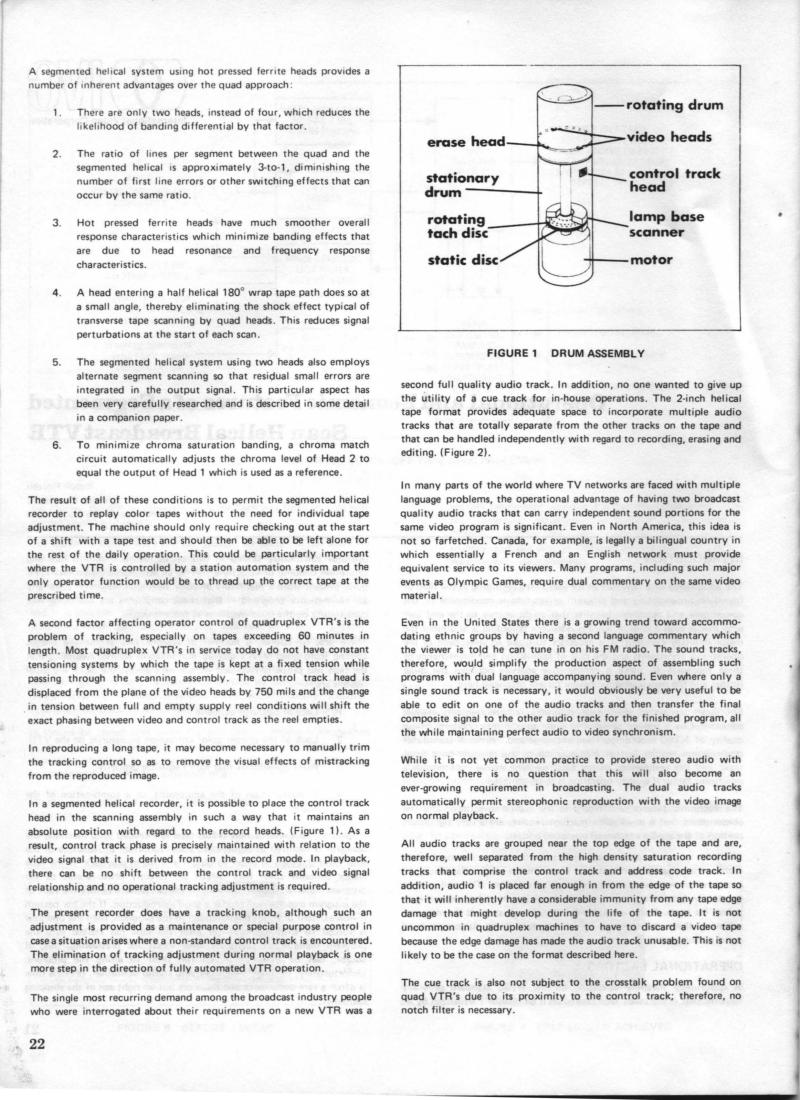

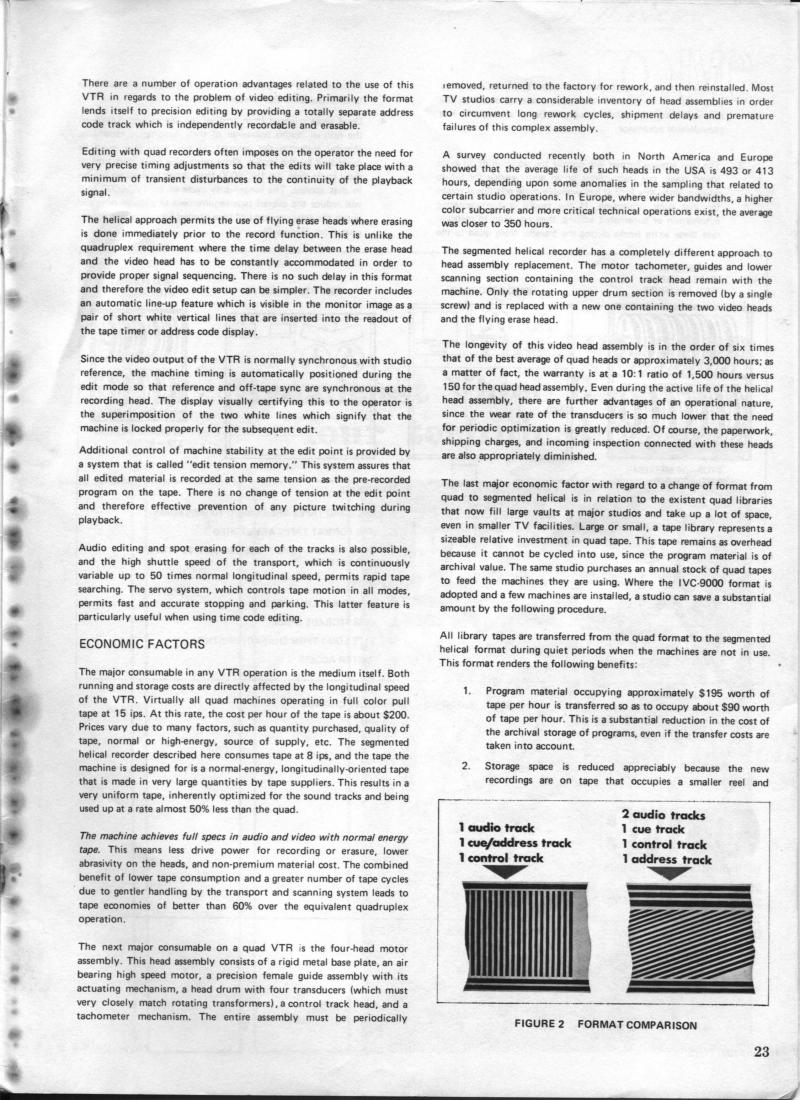

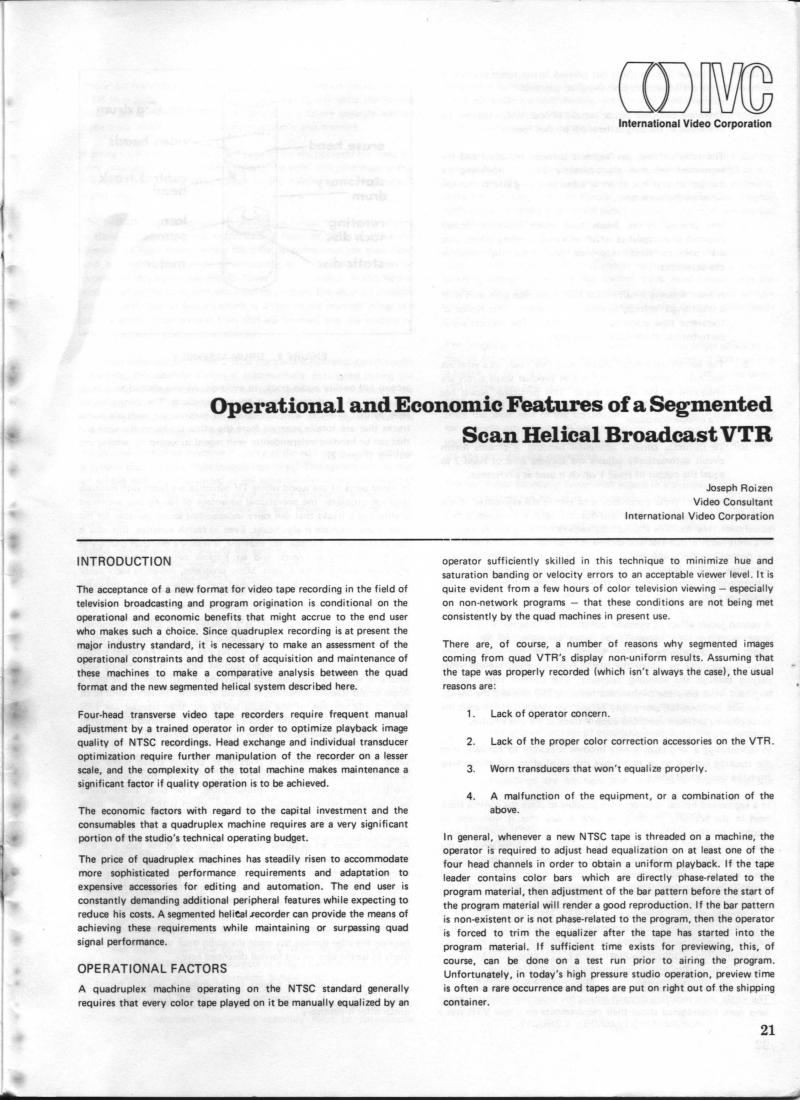

Page 21
Click to view full size. Back button to return.
Page 22
Click to view full size. Back button to return.
Page 23
Click to view full size. Back button to return.

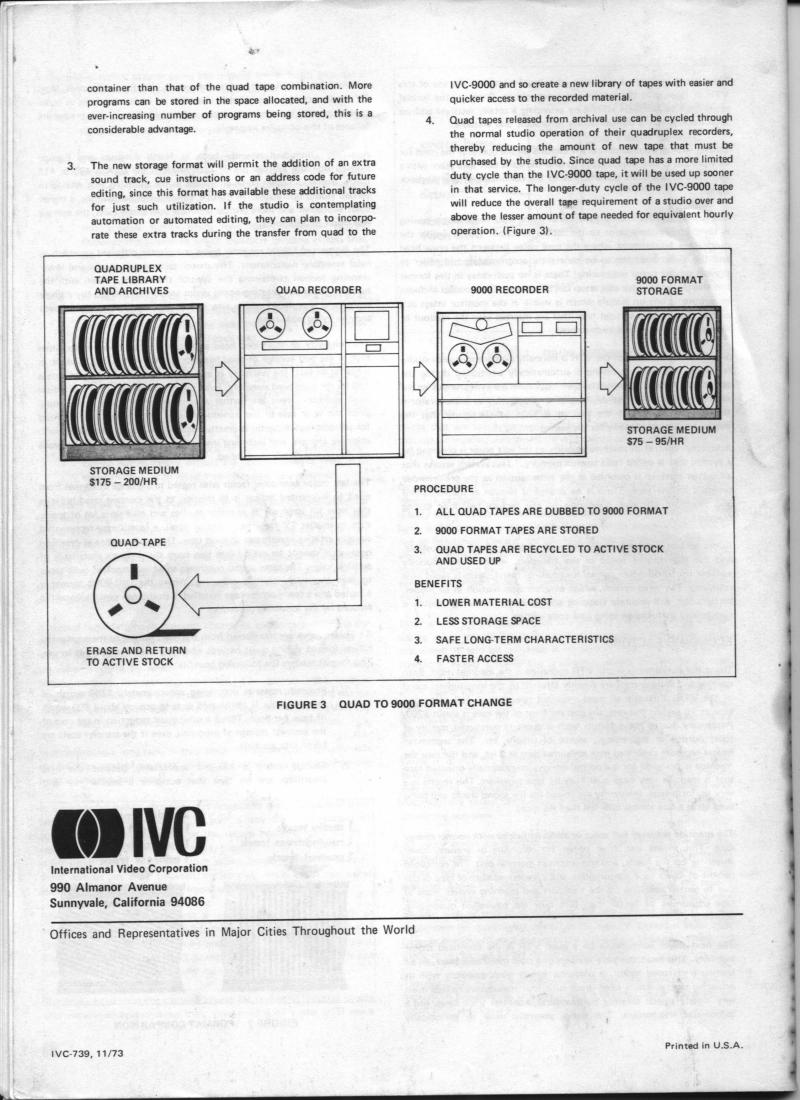

Page 24
