LabGuy's World: 1981 Electronika H-801 Video Camera Operator's Manual
New Addition! 05.01.13
This page may take some time to download. Please, be patient. It is worth the wait. Feel free to save these files and print them out for your own personal use. If you would like to use these photos or text commercially or on your web site, please contact me first at [THIS ADDRESS]
.
This  video camera documentation comes to us from the former Soviet Union. Contributed by Konstantin Mosgalev.
Click to view full size. Back button to return.

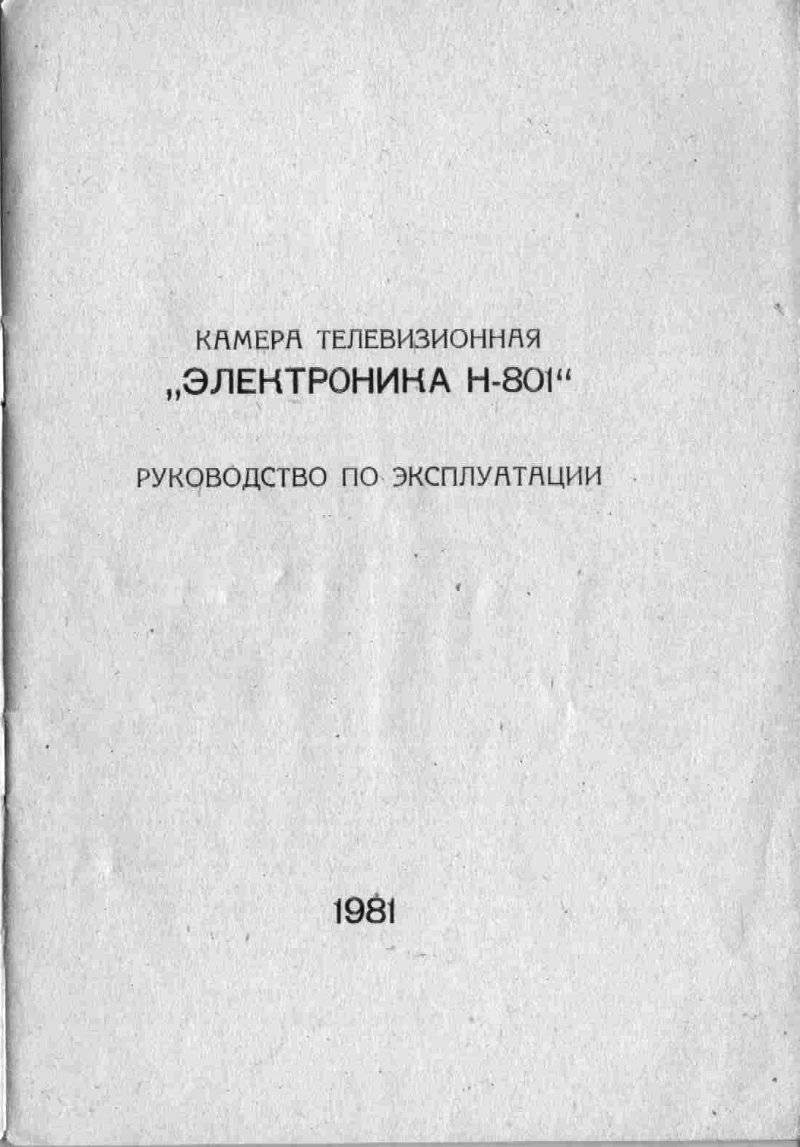

Front Cover		 Click to view full size. Back button to return.
Page 1
Click to view full size. Back button to return.

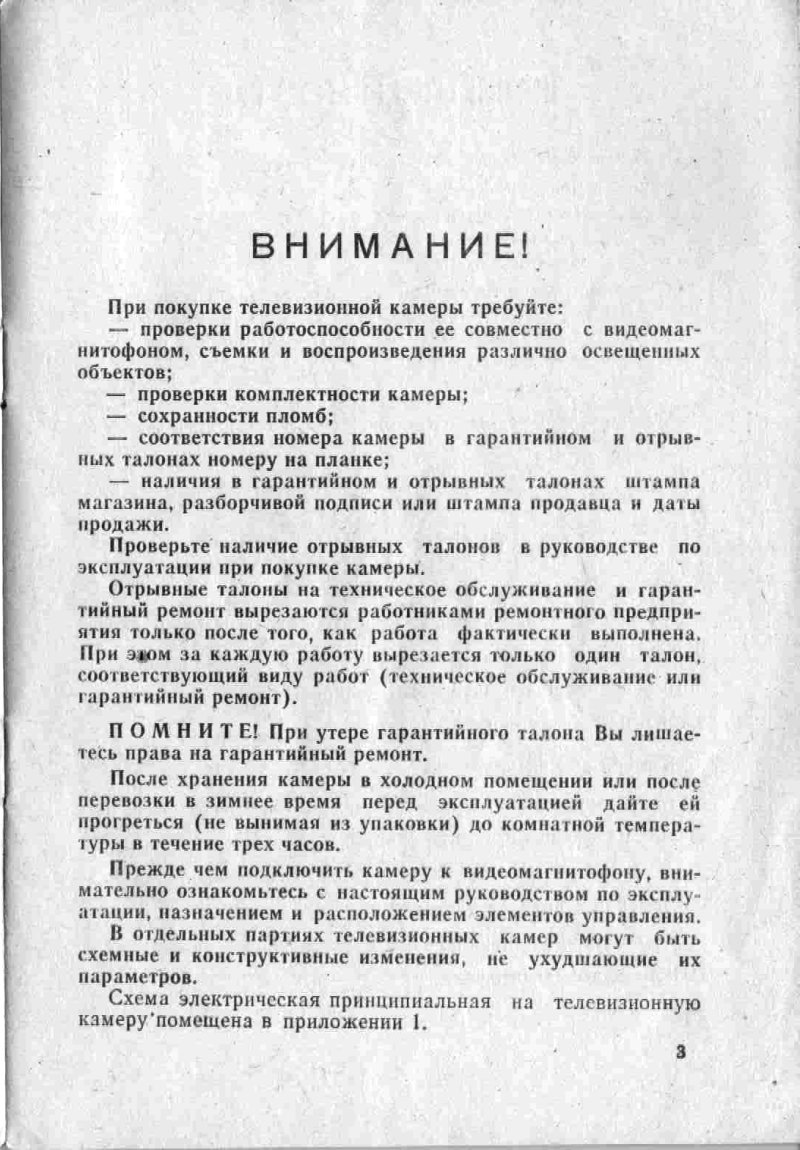

Page 3		 Click to view full size. Back button to return.

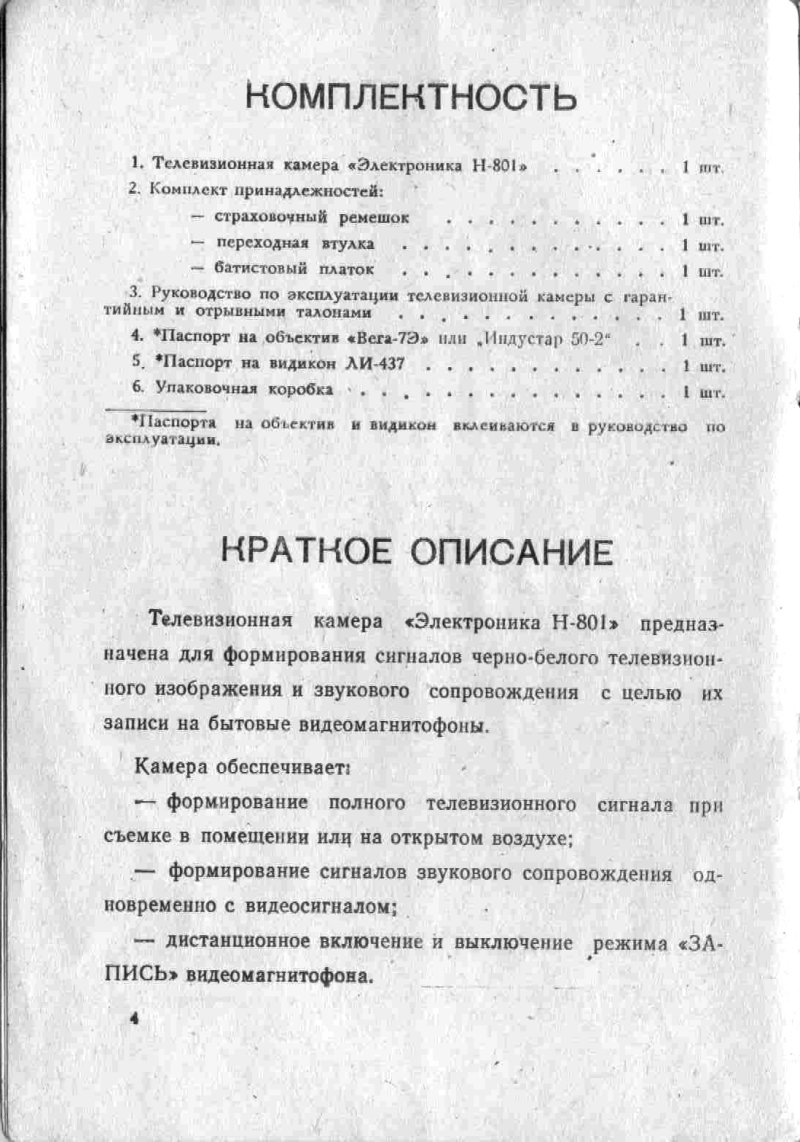

Page 4
Click to view full size. Back button to return.

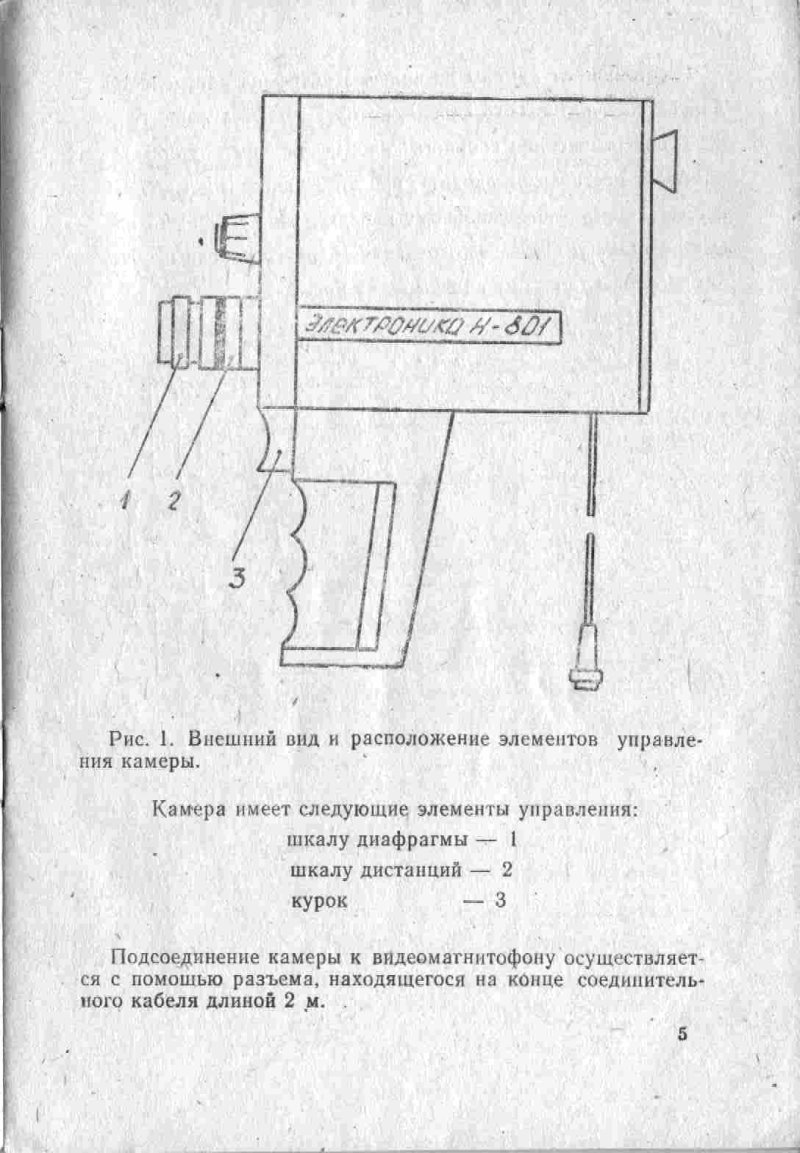

Page 5		 Click to view full size. Back button to return.

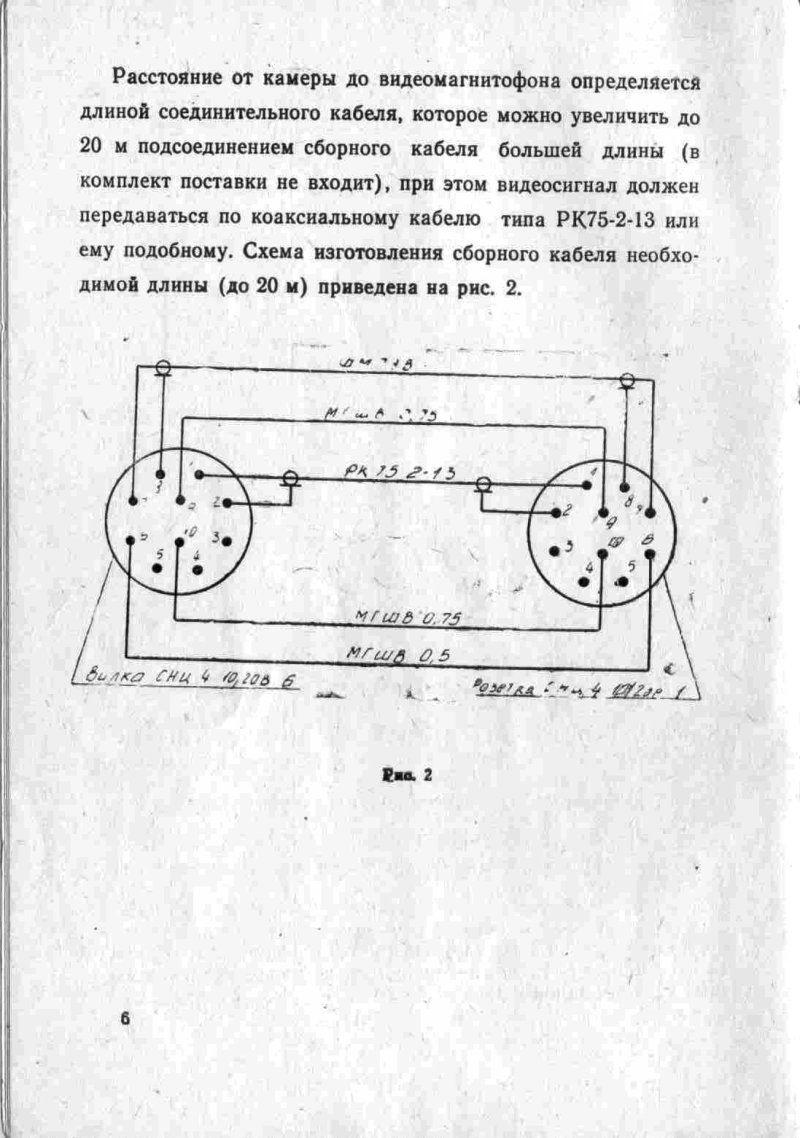

Page 6
Click to view full size. Back button to return.

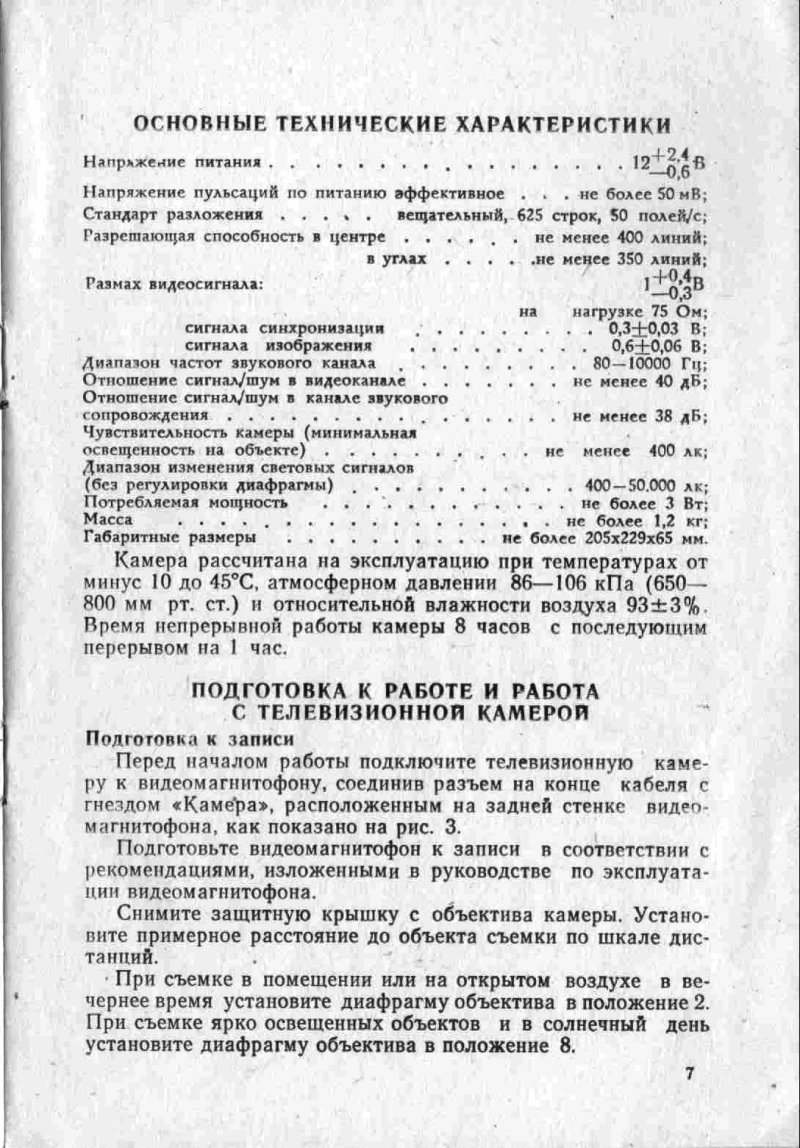

Page 7		 Click to view full size. Back button to return.

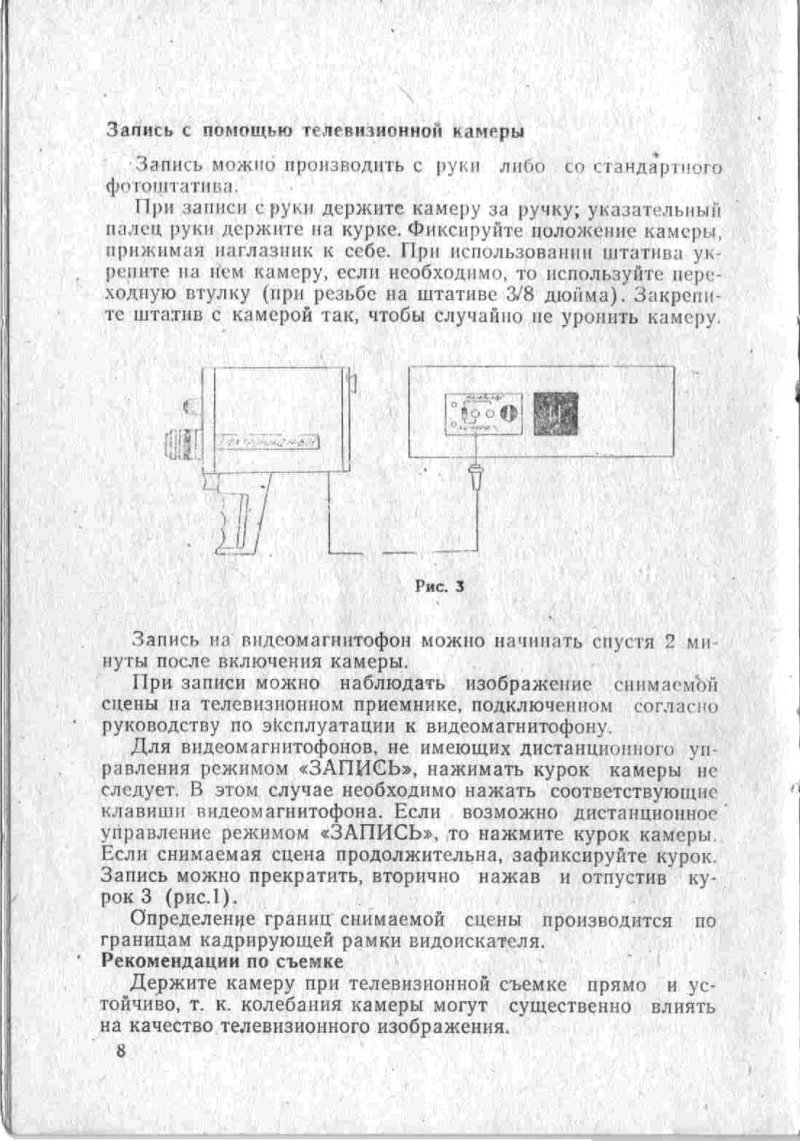

Page 8
Click to view full size. Back button to return.

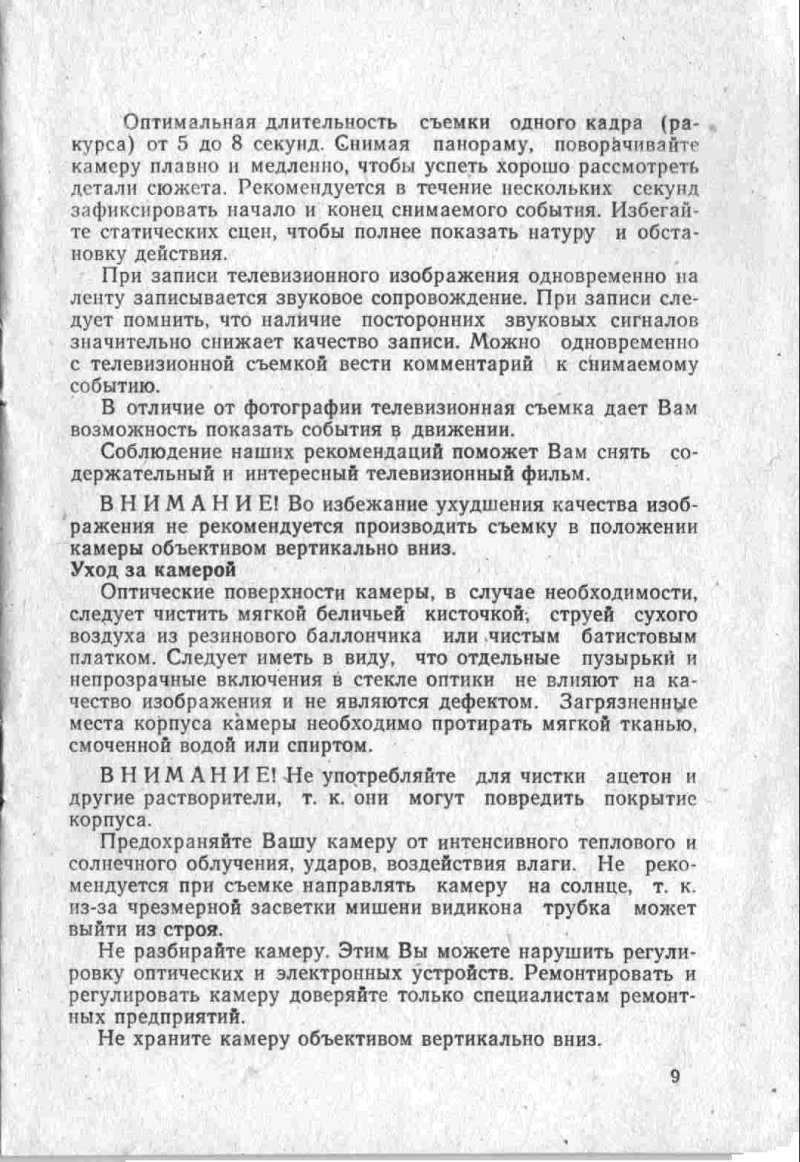

Page 9		 Click to view full size. Back button to return.

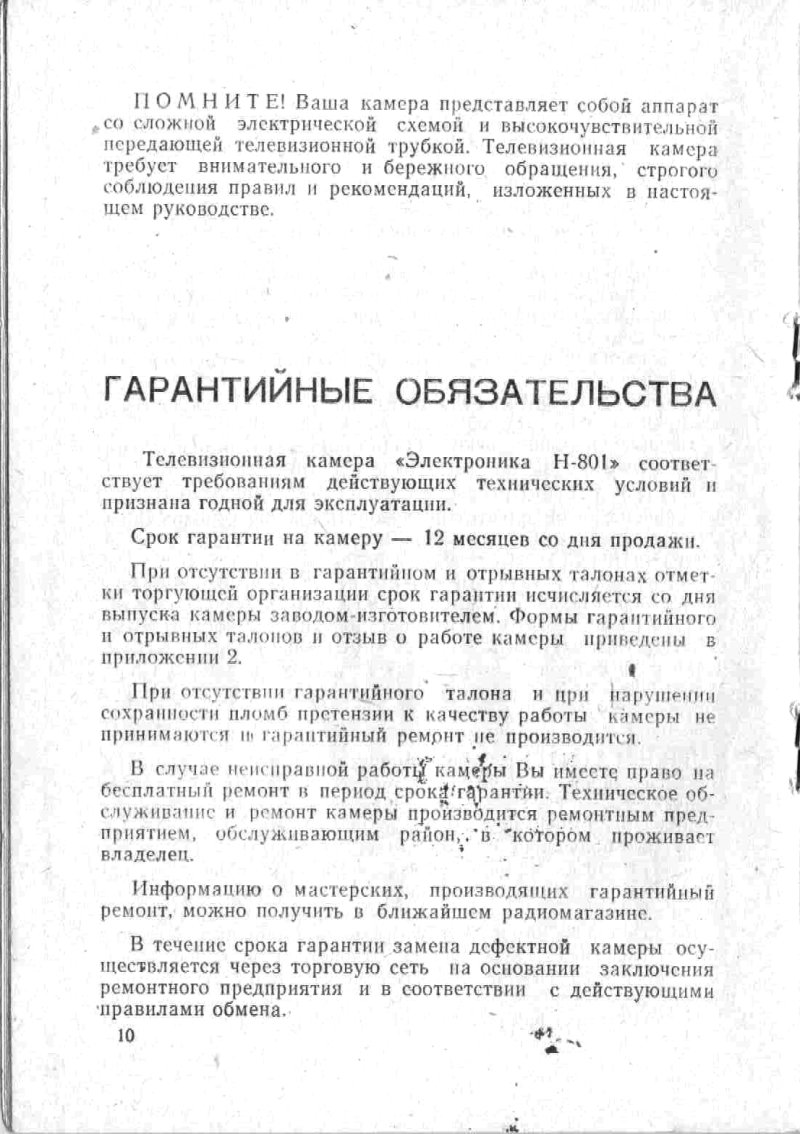

Page 10
Click to view full size. Back button to return.

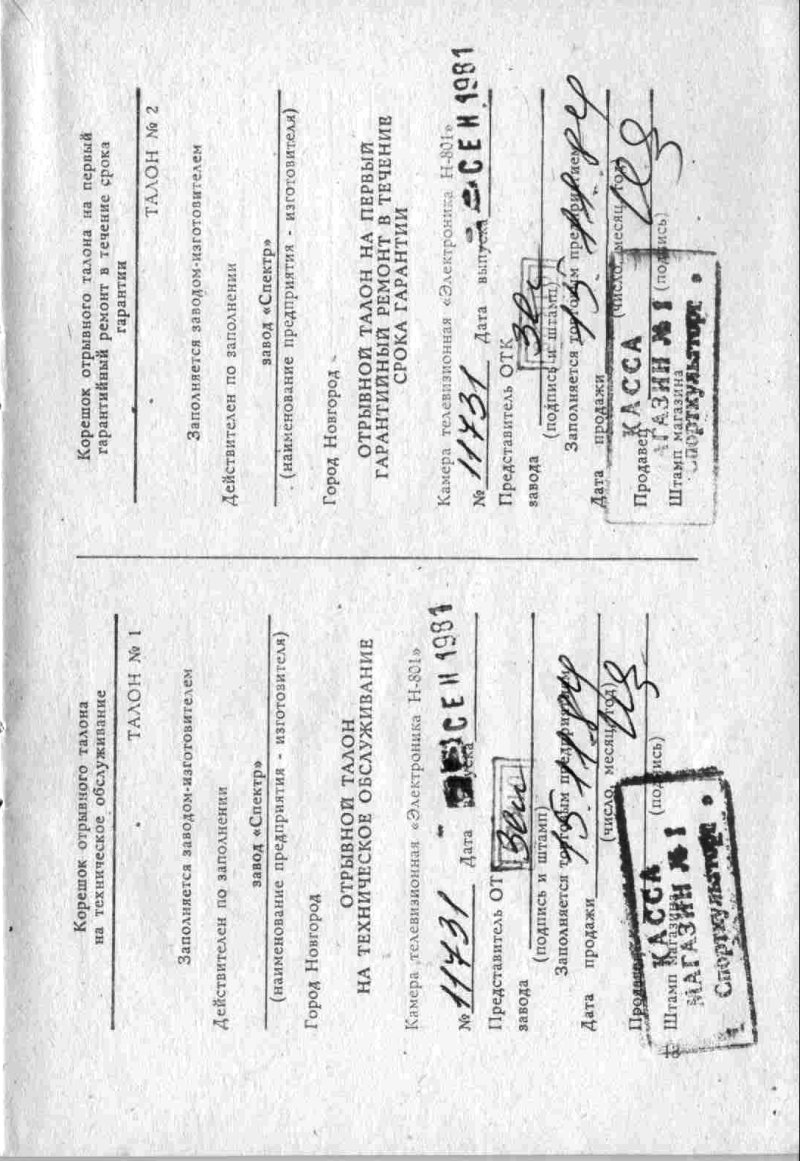

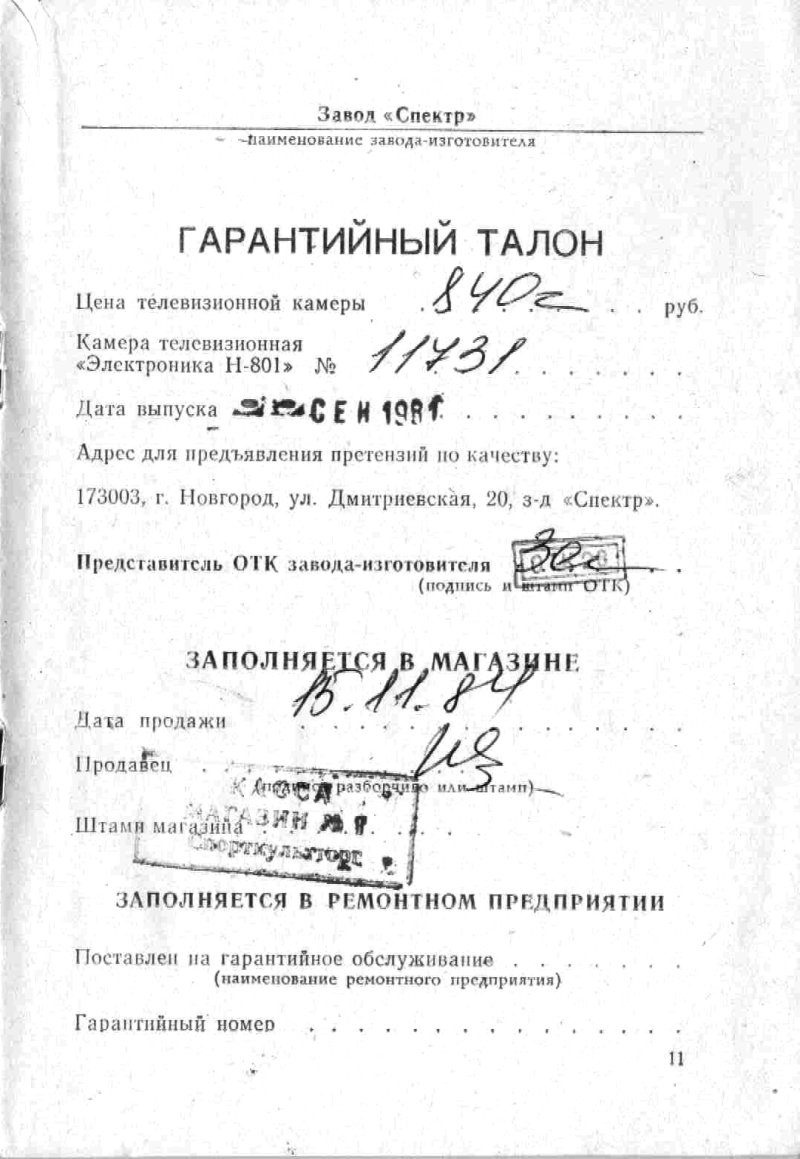

Page 11		 Click to view full size. Back button to return.
Page 12
Click to view full size. Back button to return.

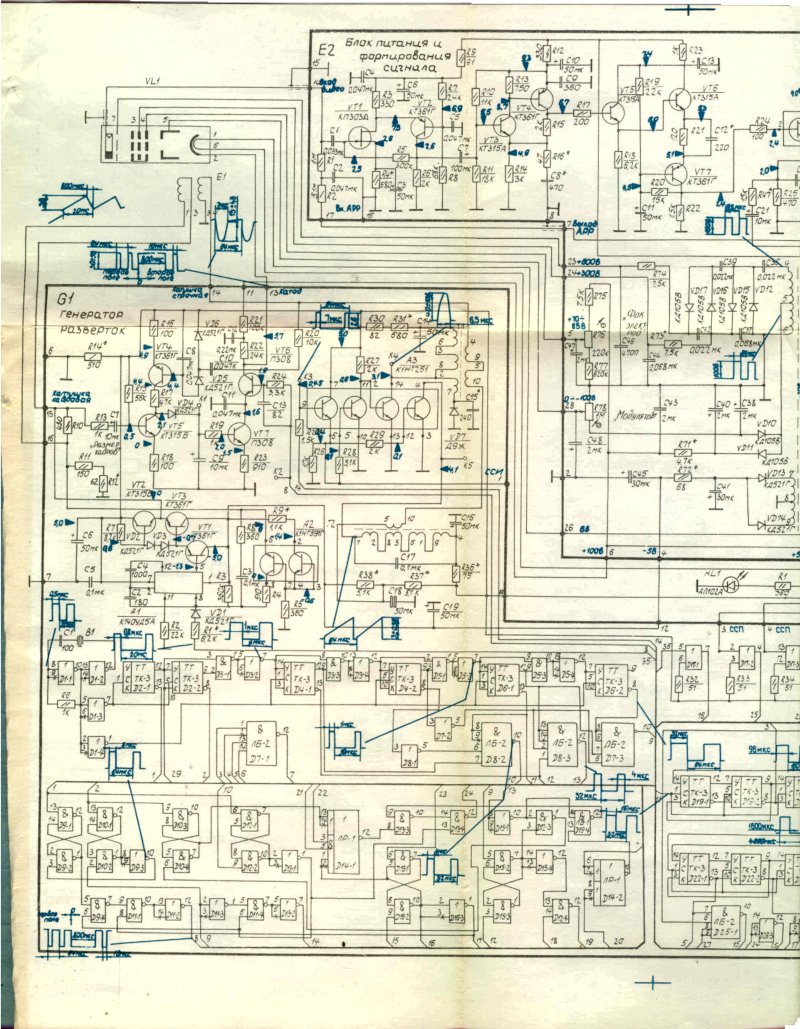

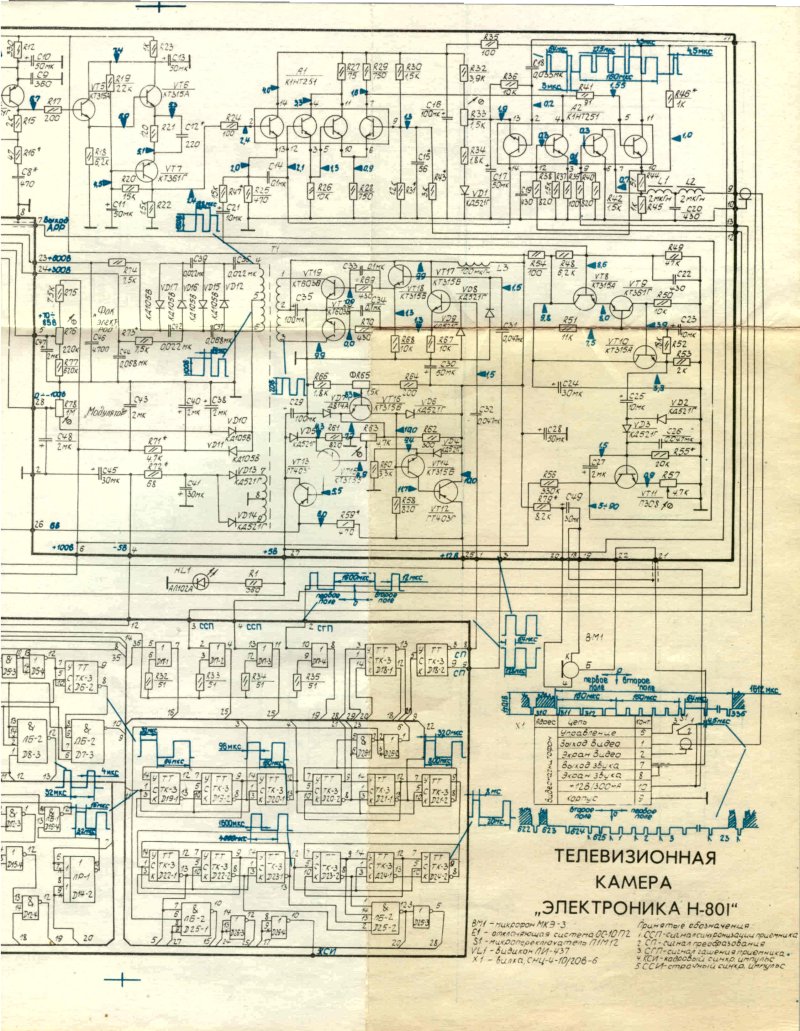

Schematic left		 Click to view full size. Back button to return.
Page 7
Click to view full size. Back button to return.

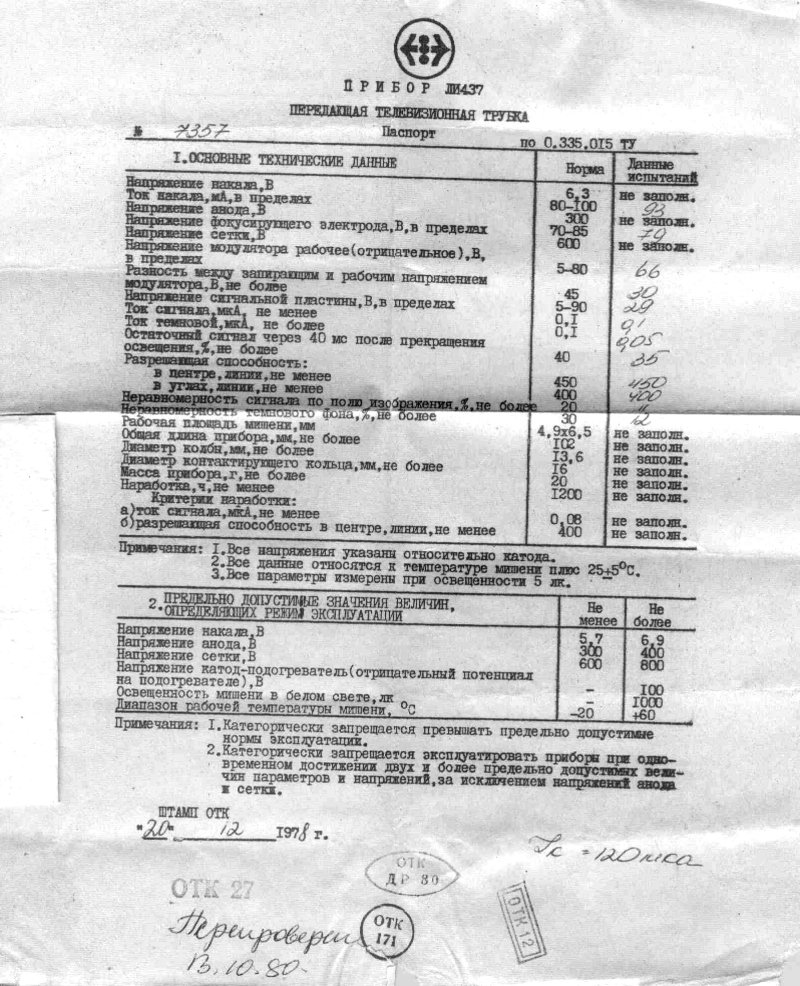

Li-437 Vidicon Tube Specifications Page 1
 Click to view full size. Back button to return.

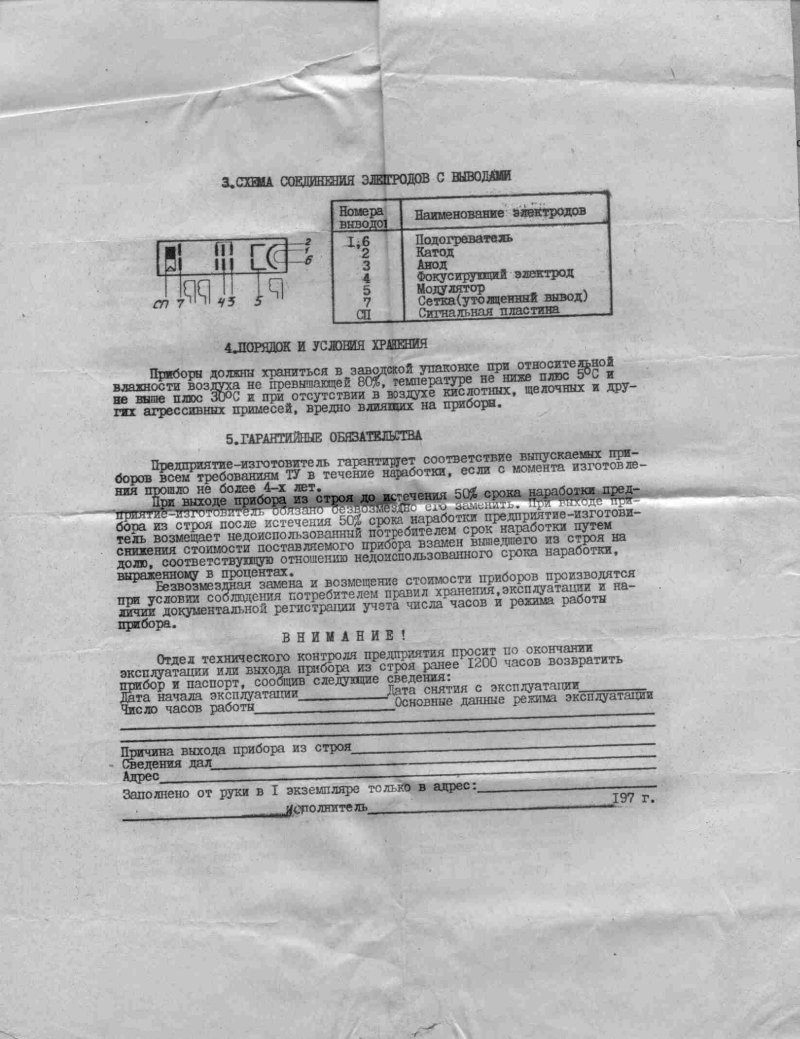

Li-437 Vidicon Tube Specifications Page 2
