|LabGuy's World: 1980 Electronika

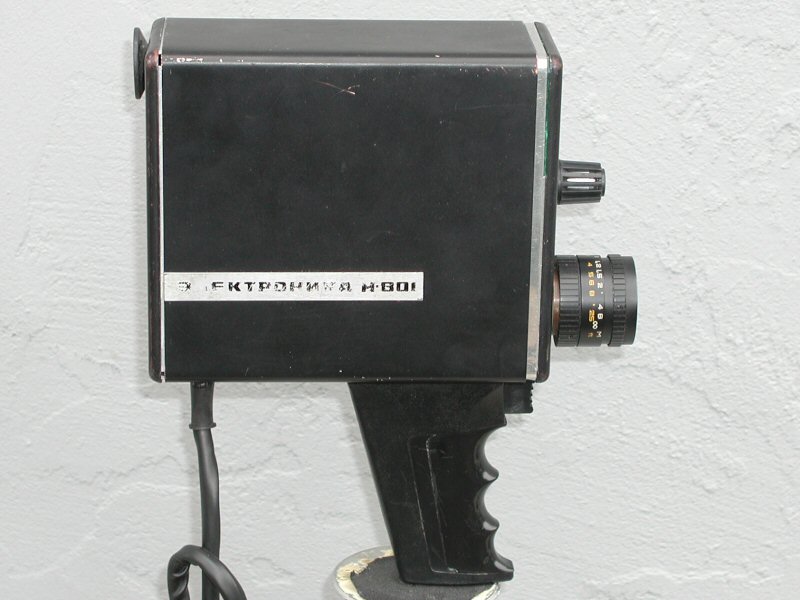

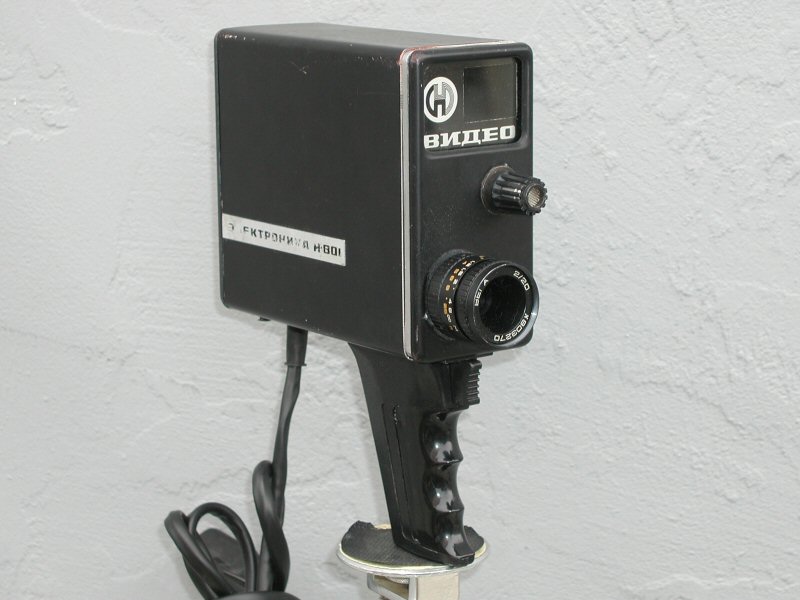

H-801 Vidicon Portapak Camera

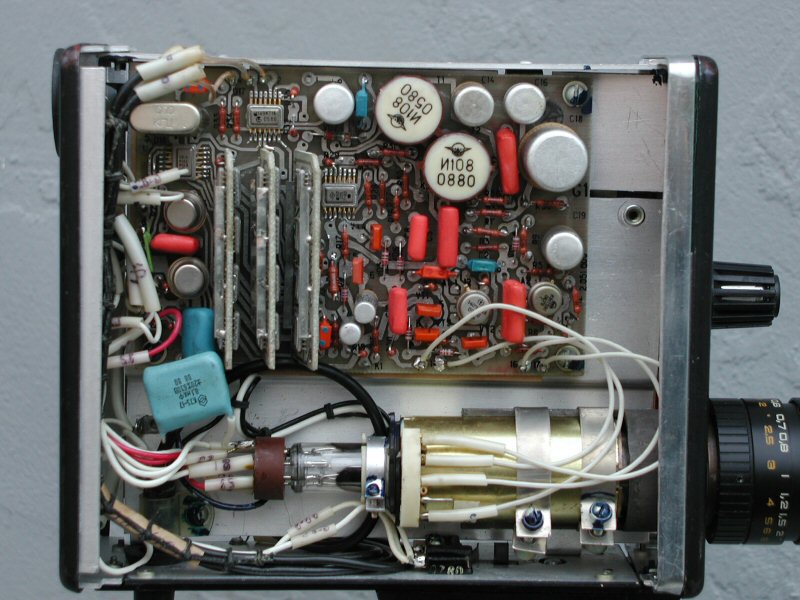

This is the third Russian / Soviet Union camera in my collection. An extremely basic unit, it lacks the electronic viewfinder found on most other hand held cameras. It more than makes up for this with a built-in, crystal controlled digital 2:1 CCIR sync generator. It does not depend on an outside source of sync. Most likely the mate to a matching VTR ensemble. Does anyone know what that VTR was?.

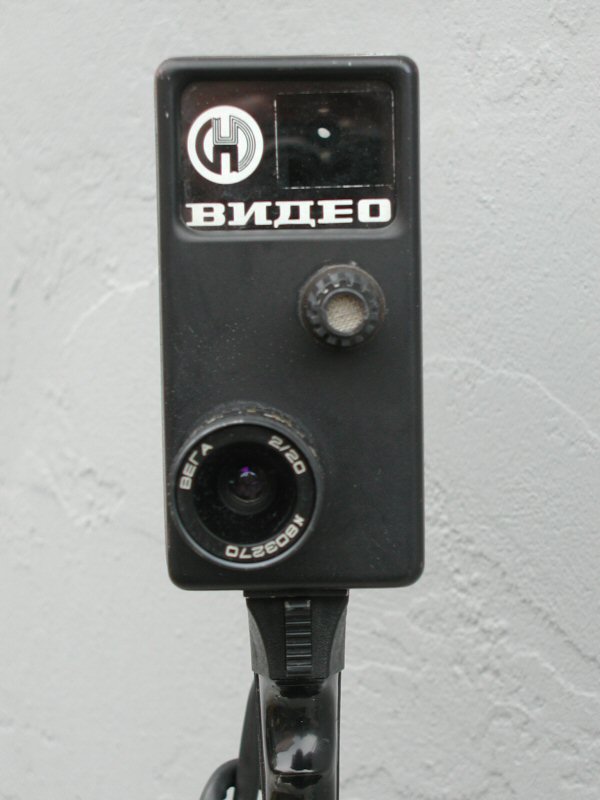

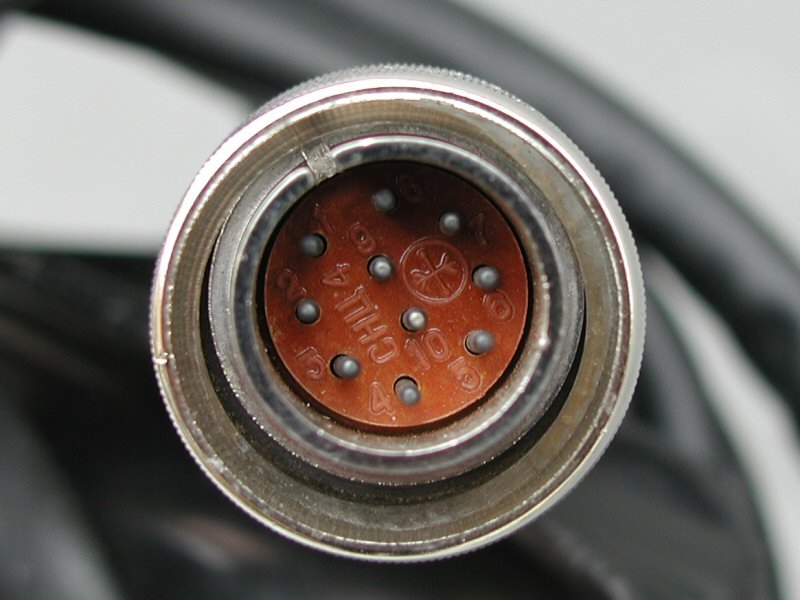

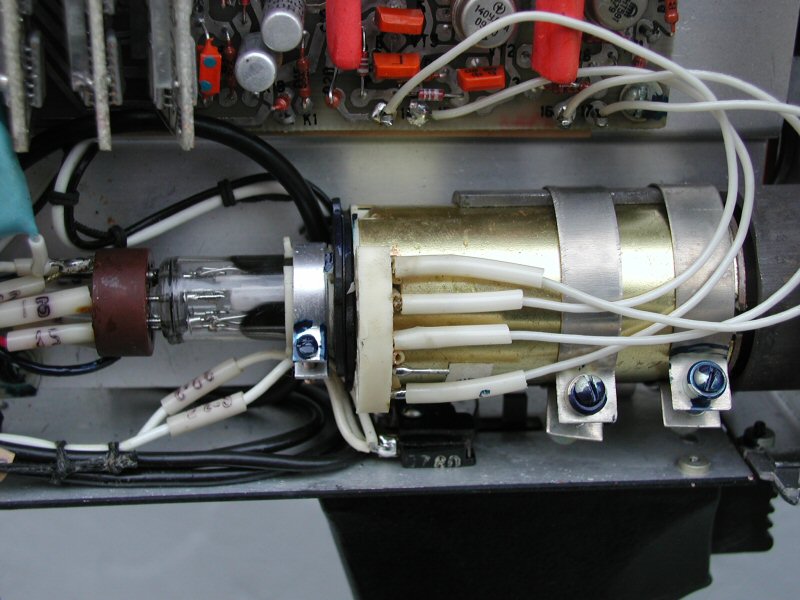

There is a built-in microphone as well as a hand trigger start/stop switch. The connecting cable terminates in a standard 10 pin EIAJ style plug. Pin out is EIAJ compatible. The vidicon tube is tiny, measuring a mere half inch in diameter and four inches long.
