LabGuy's World: Ampex VR-7000 Operator's Manual
NEW: 050226
This page may take some time to download. Please, be patient. It is worth the wait. Feel free to save these files and print them out for your own personal use. If you would like to use these photos or text commercially or on your web site, please contact me first at [THIS ADDRESS]
Click to view full size. Back button to return.

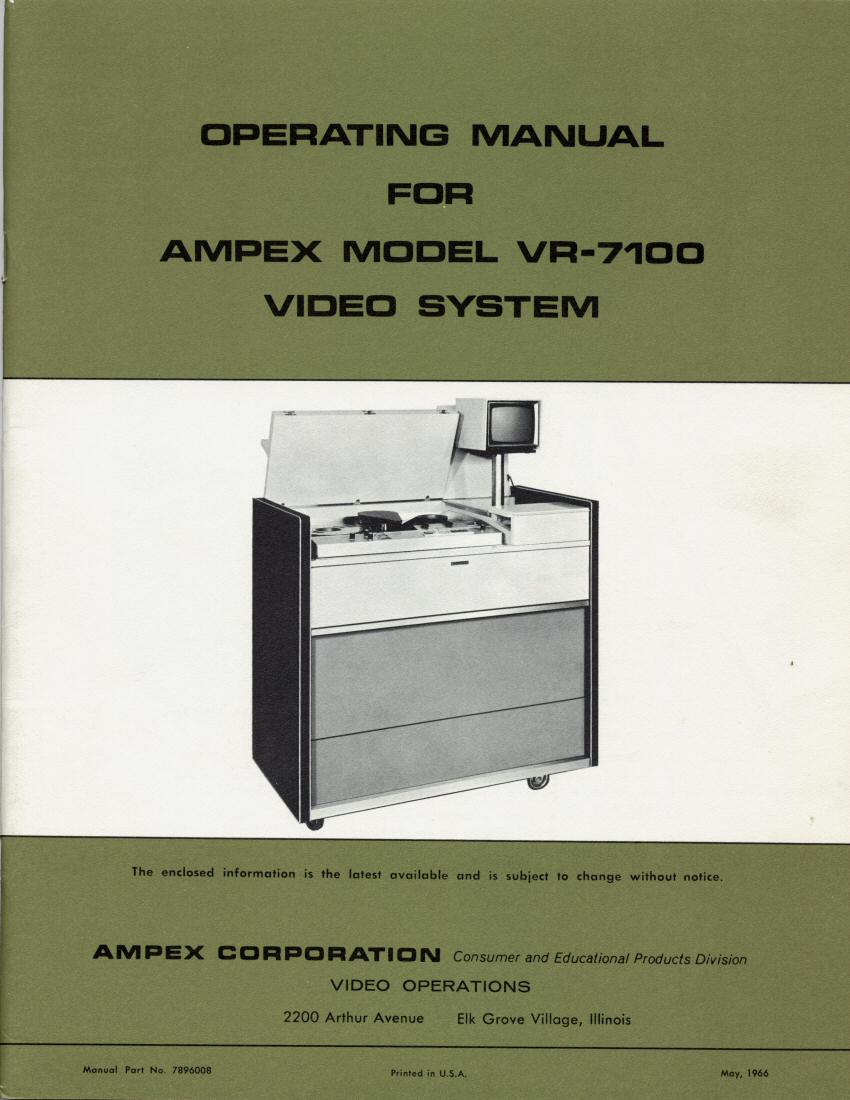

Front Cover		 Click to view full size. Back button to return.

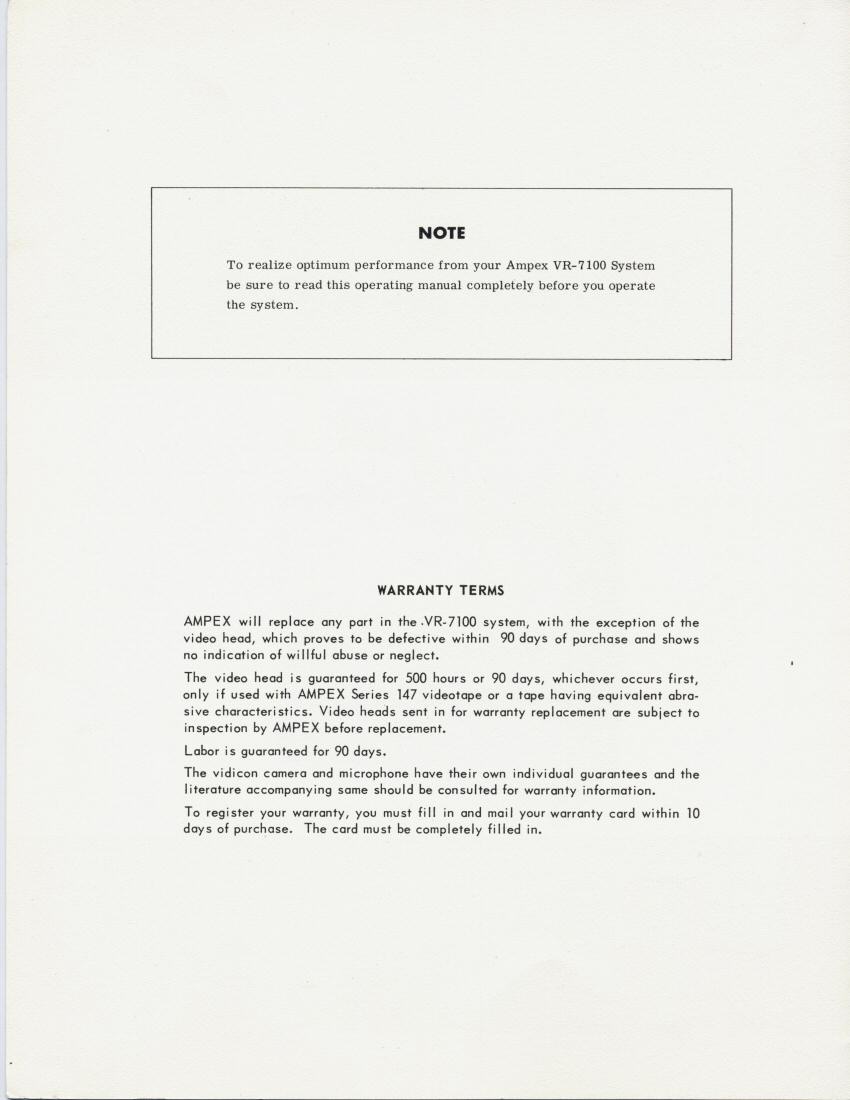

Warranty
Click to view full size. Back button to return.

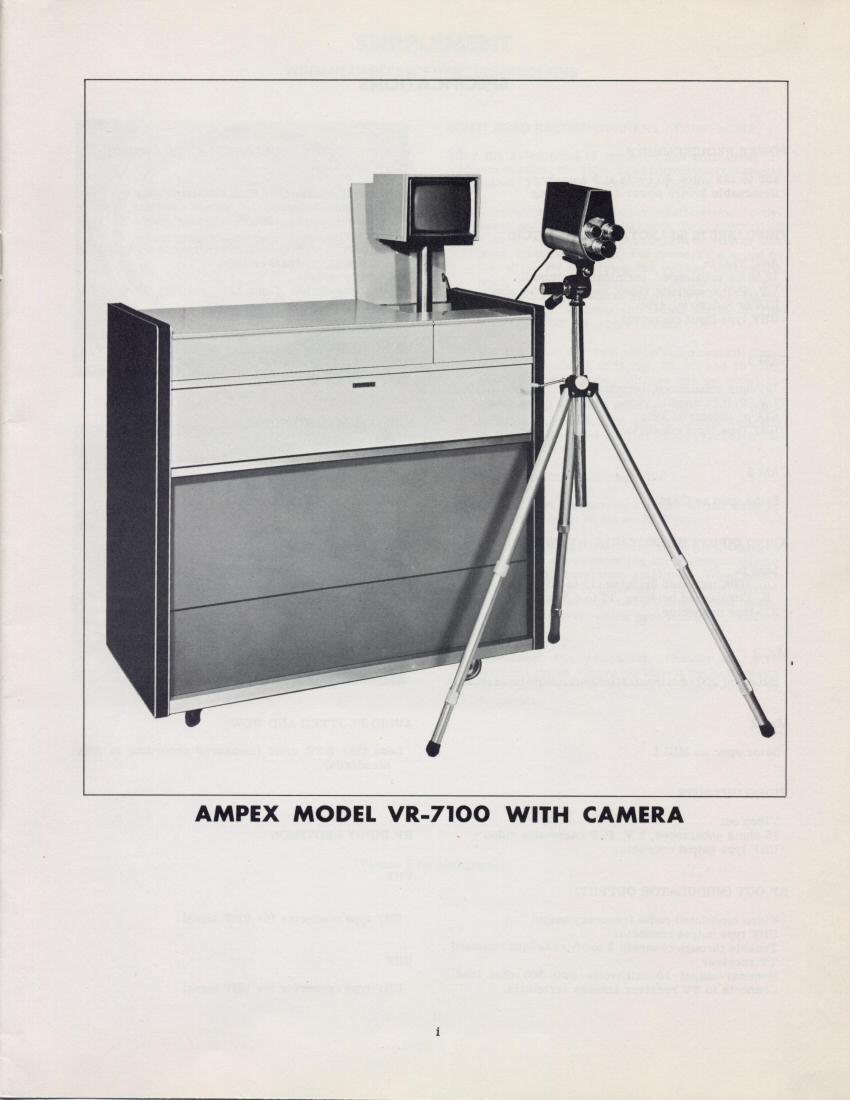

Page i		 Click to view full size. Back button to return.

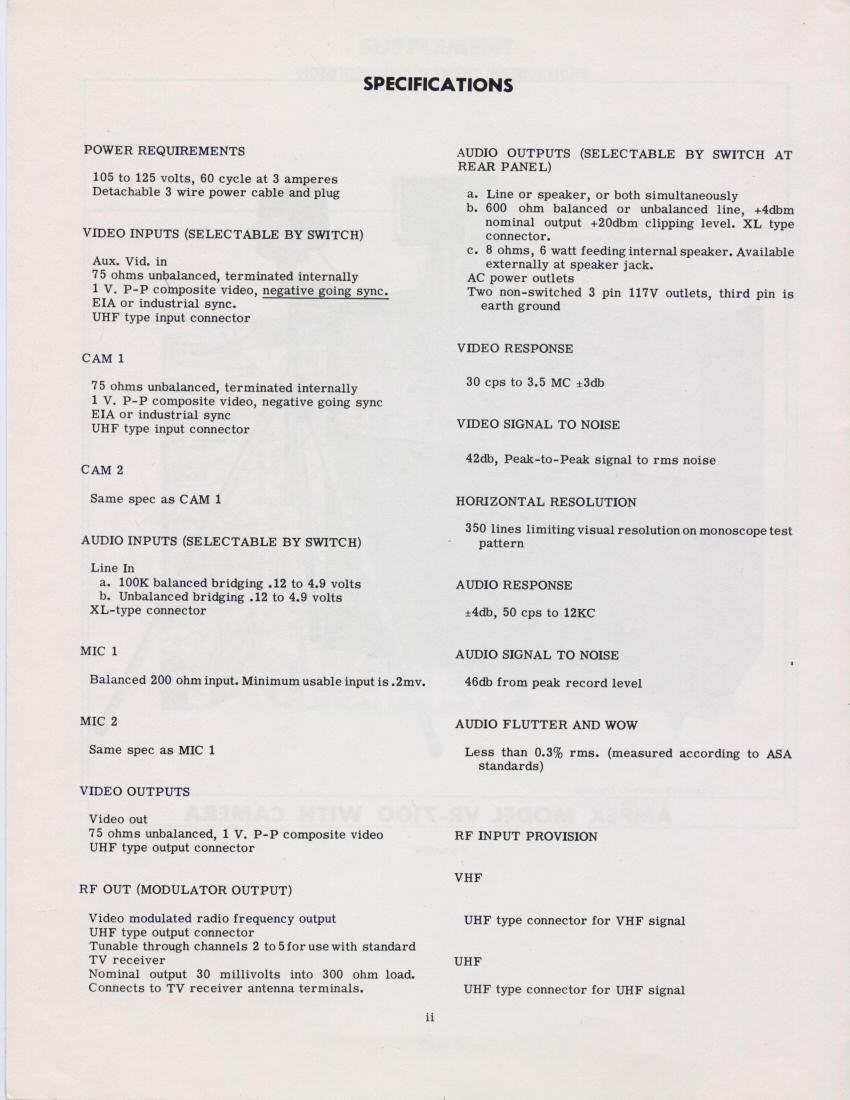

Page ii
Click to view full size. Back button to return.

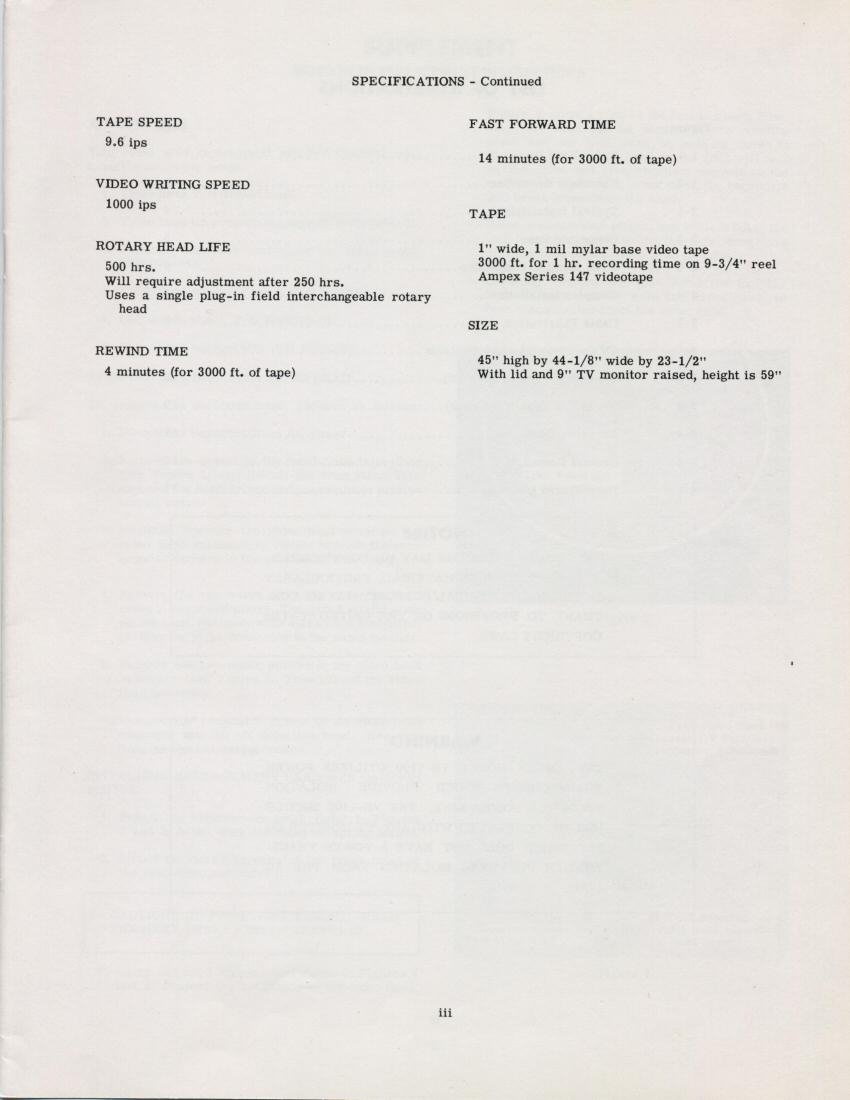

Page iii		 Click to view full size. Back button to return.

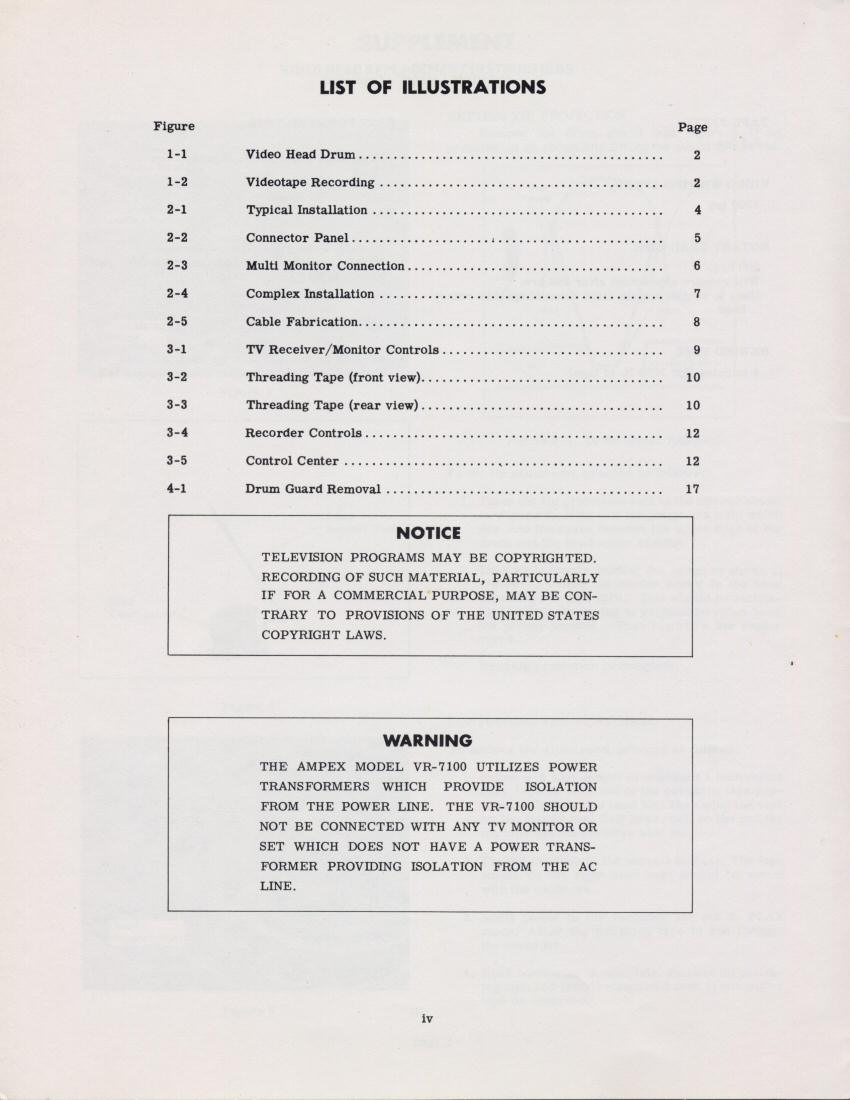

Page iv
BLANK PAGE Click to view full size. Back button to return.

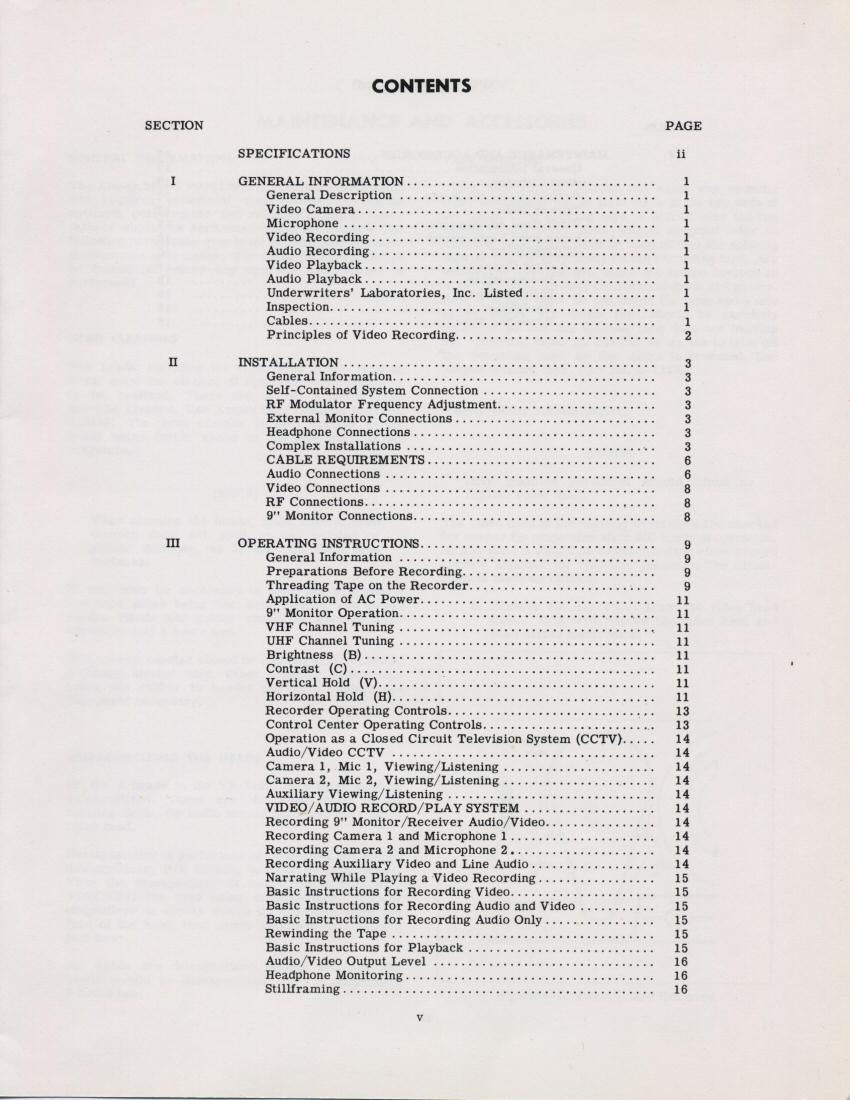

Page v
Click to view full size. Back button to return.

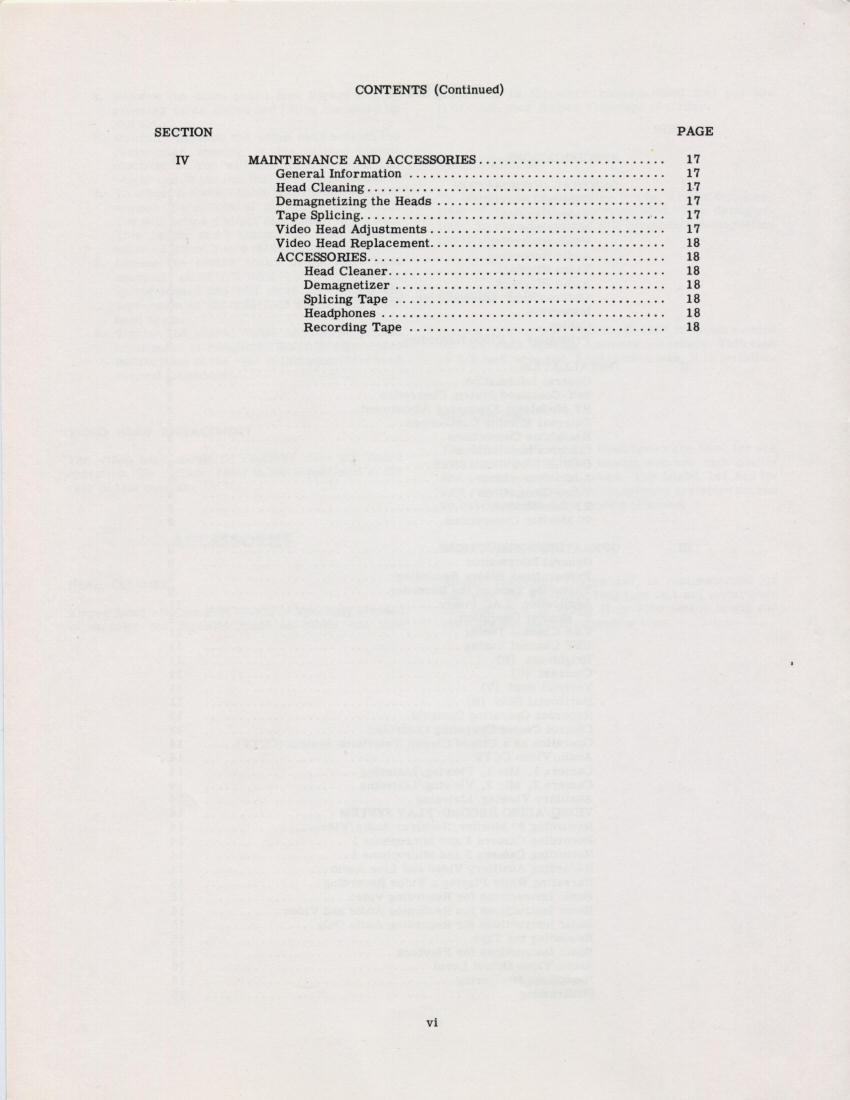

Page VI		 Click to view full size. Back button to return.

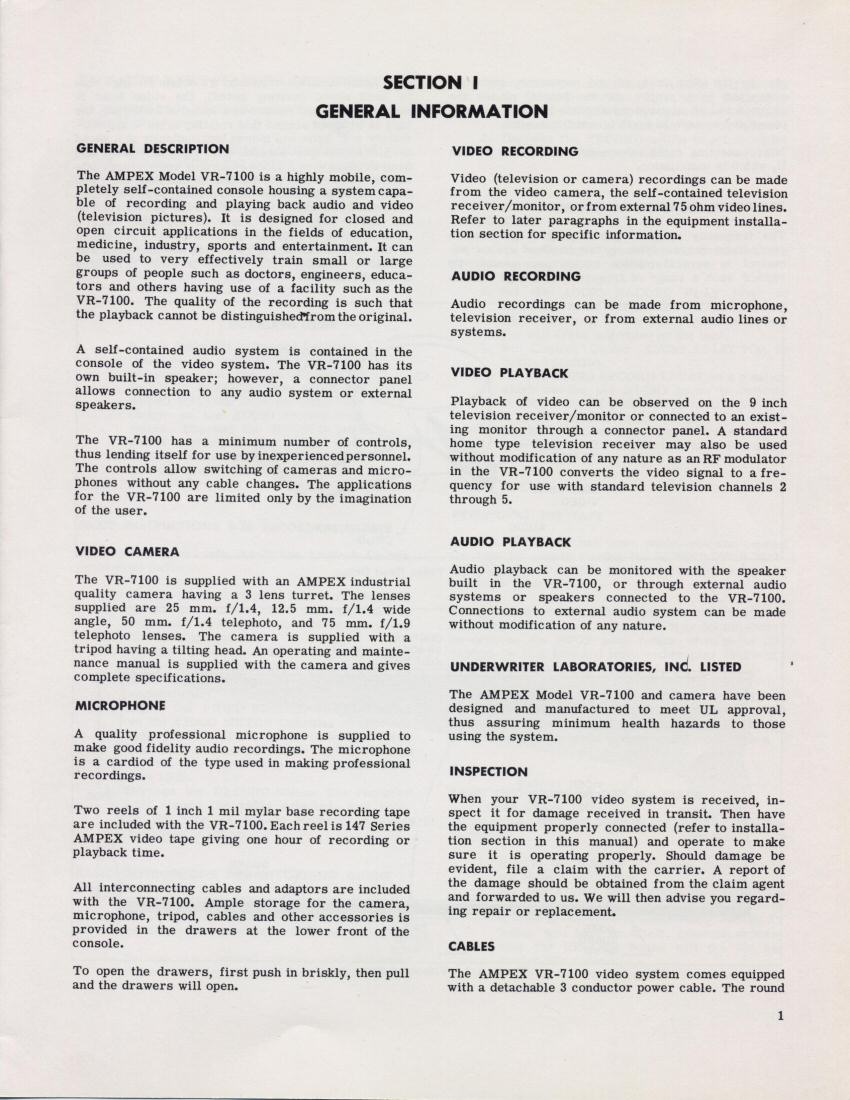

Page 1
Click to view full size. Back button to return.

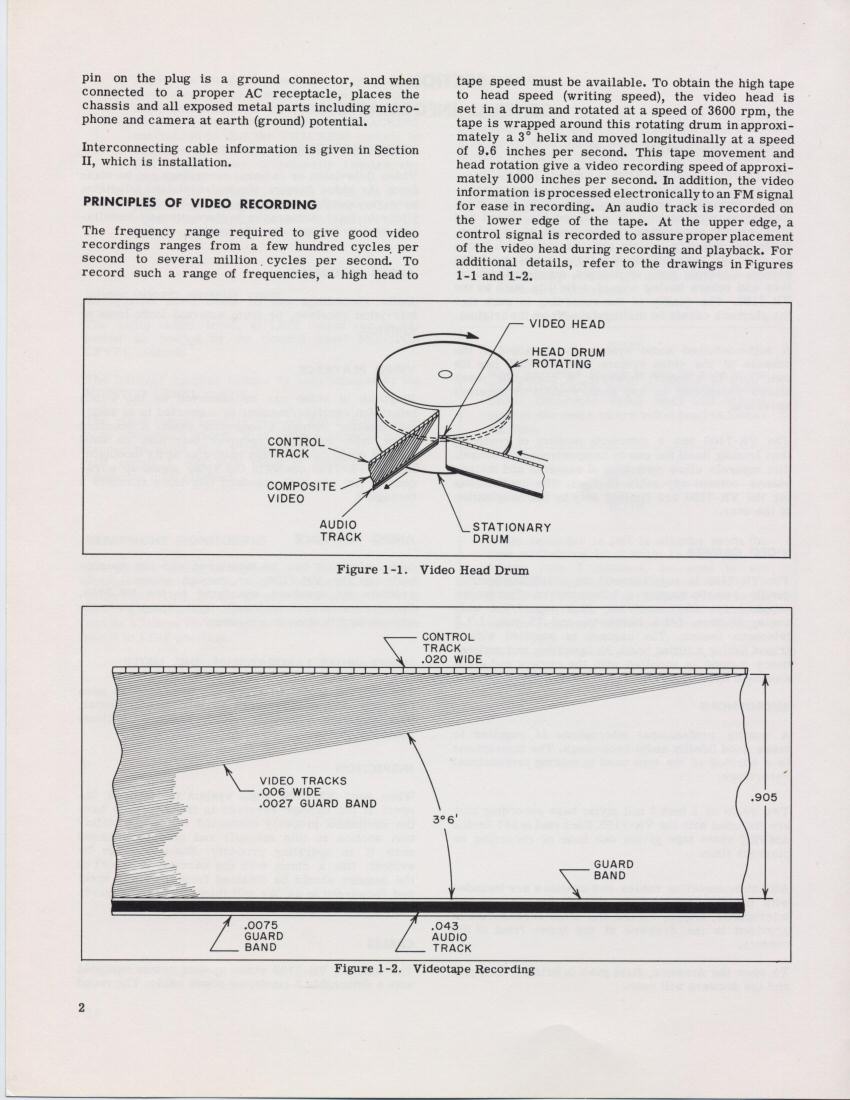

Page 2		 Click to view full size. Back button to return.

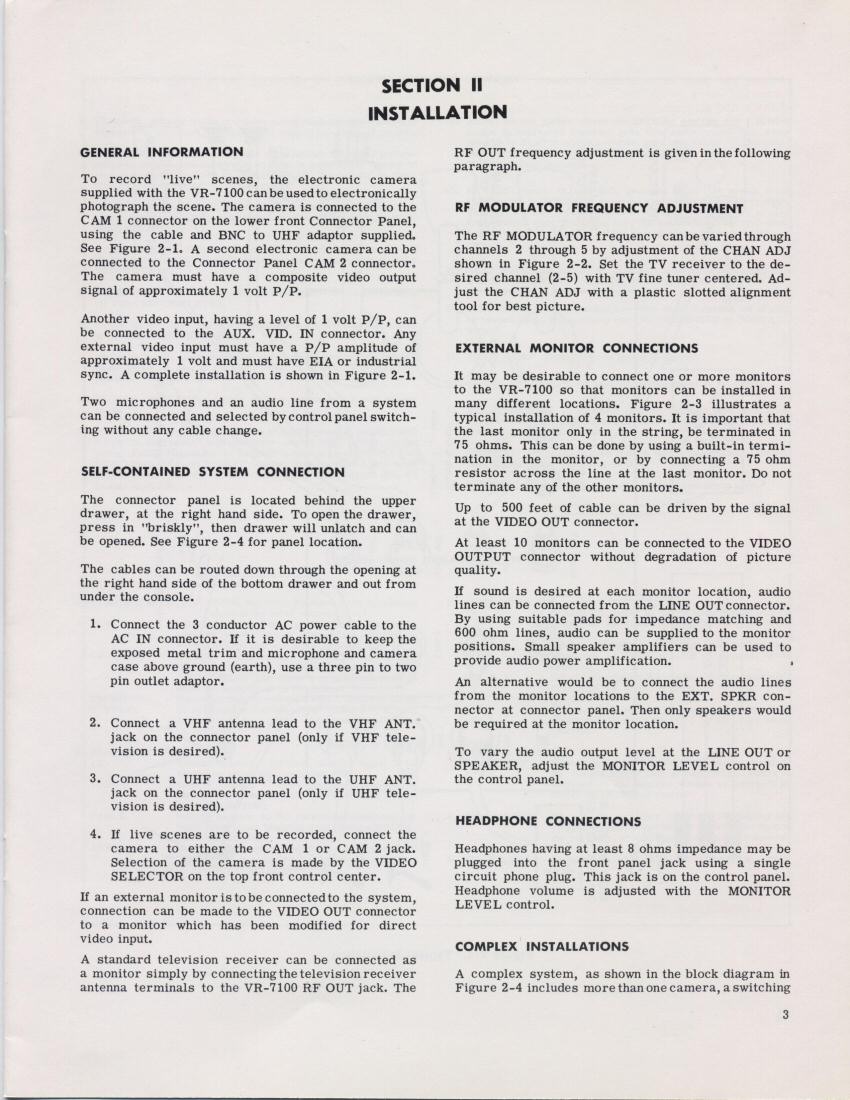

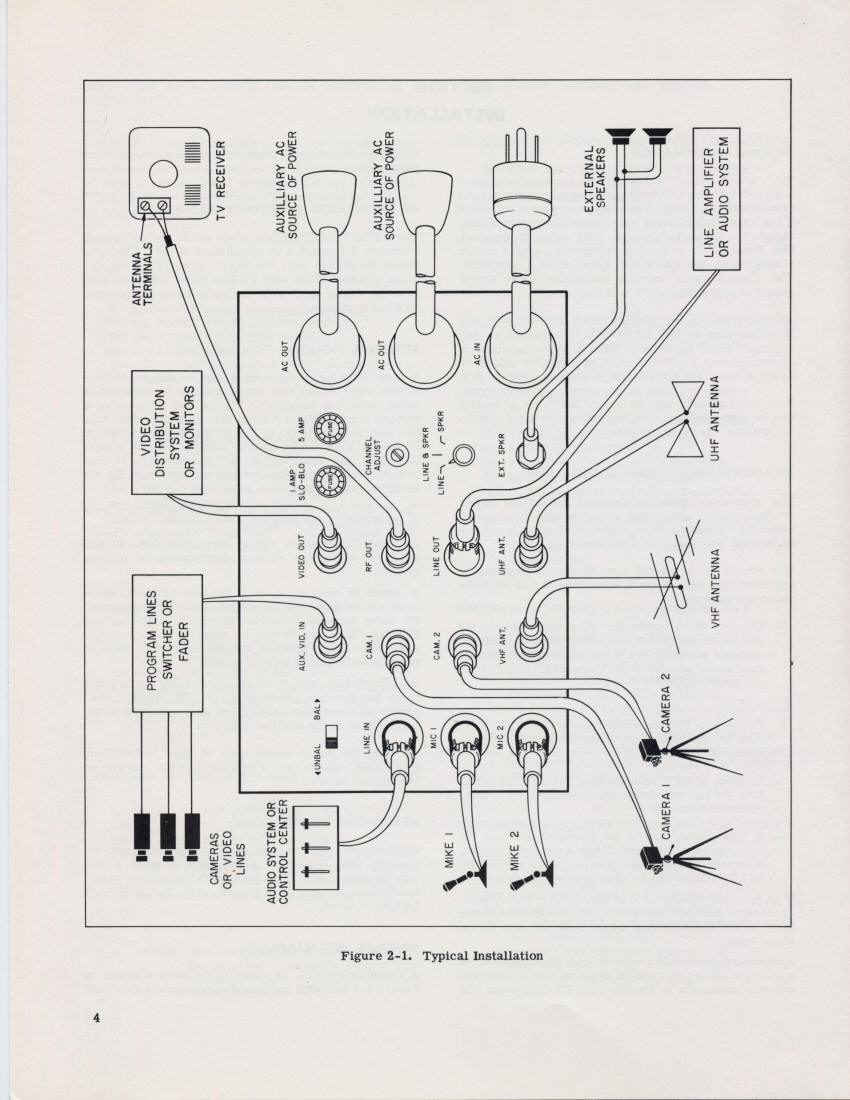

Page 3
Click to view full size. Back button to return.
Page 4		 Click to view full size. Back button to return.

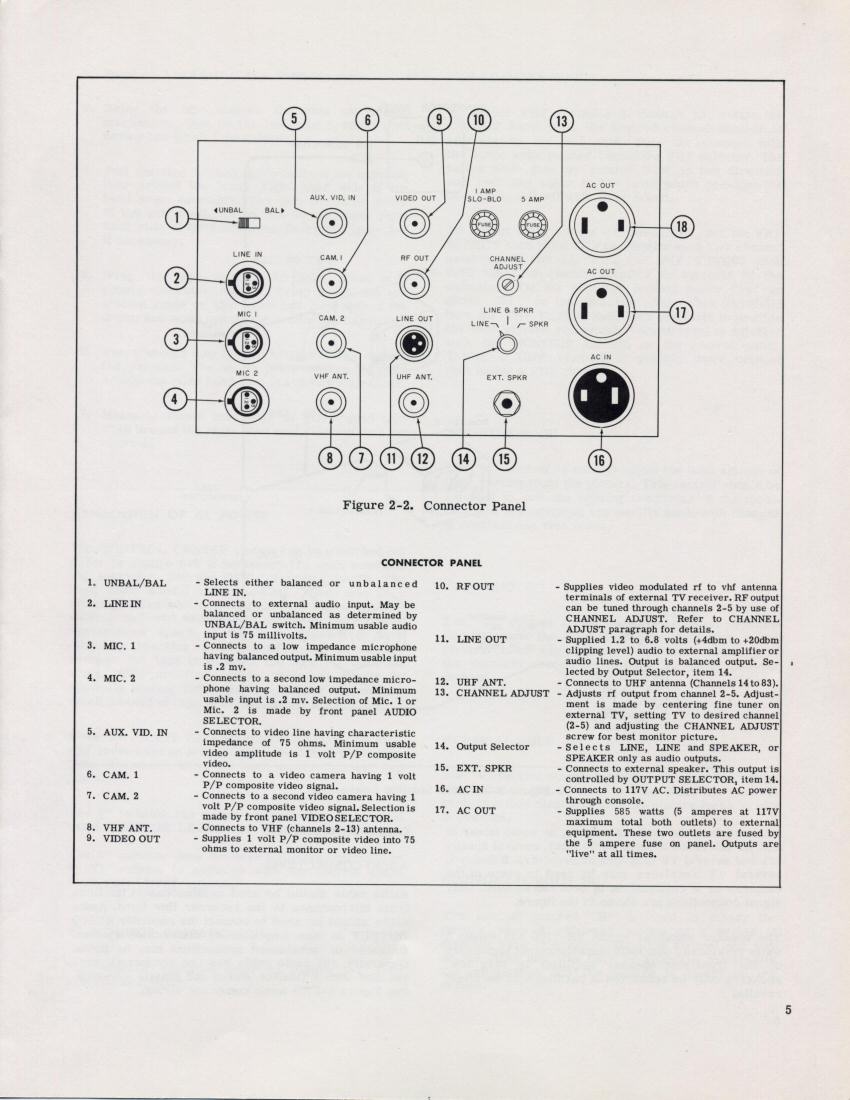

Page 5
Click to view full size. Back button to return.

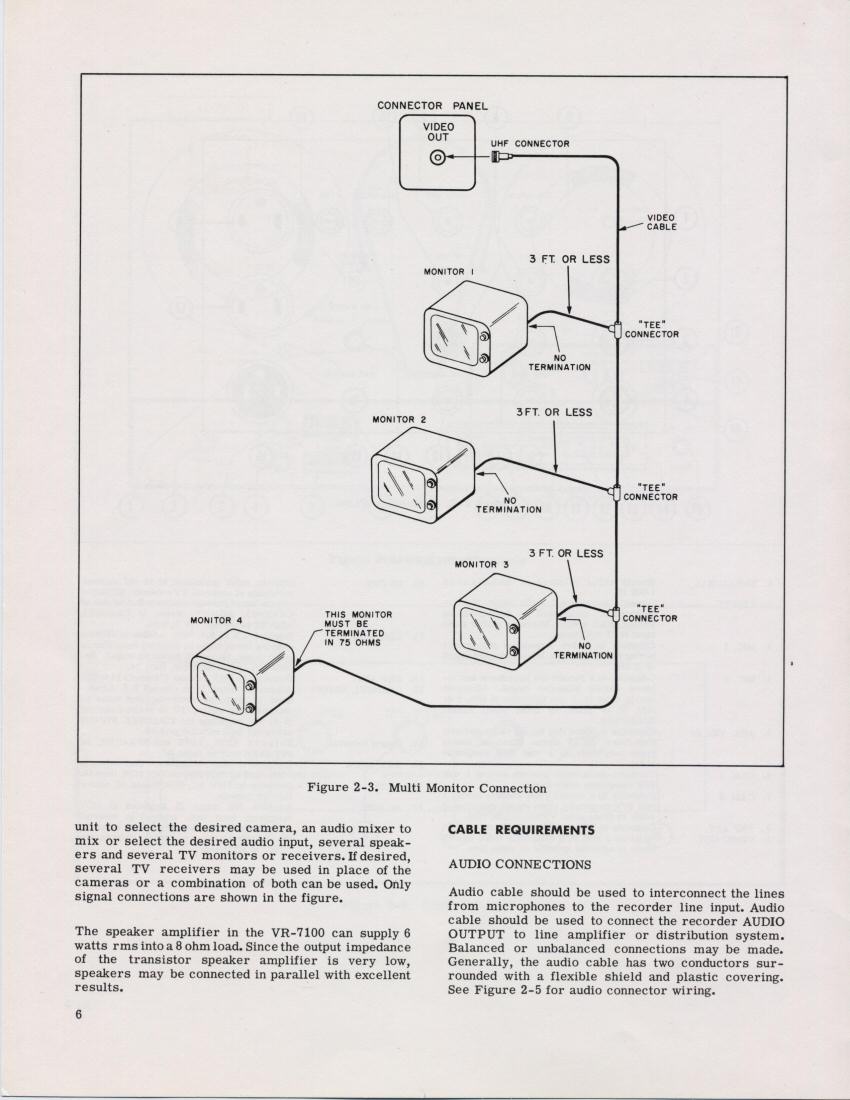

Page 6		 Click to view full size. Back button to return.

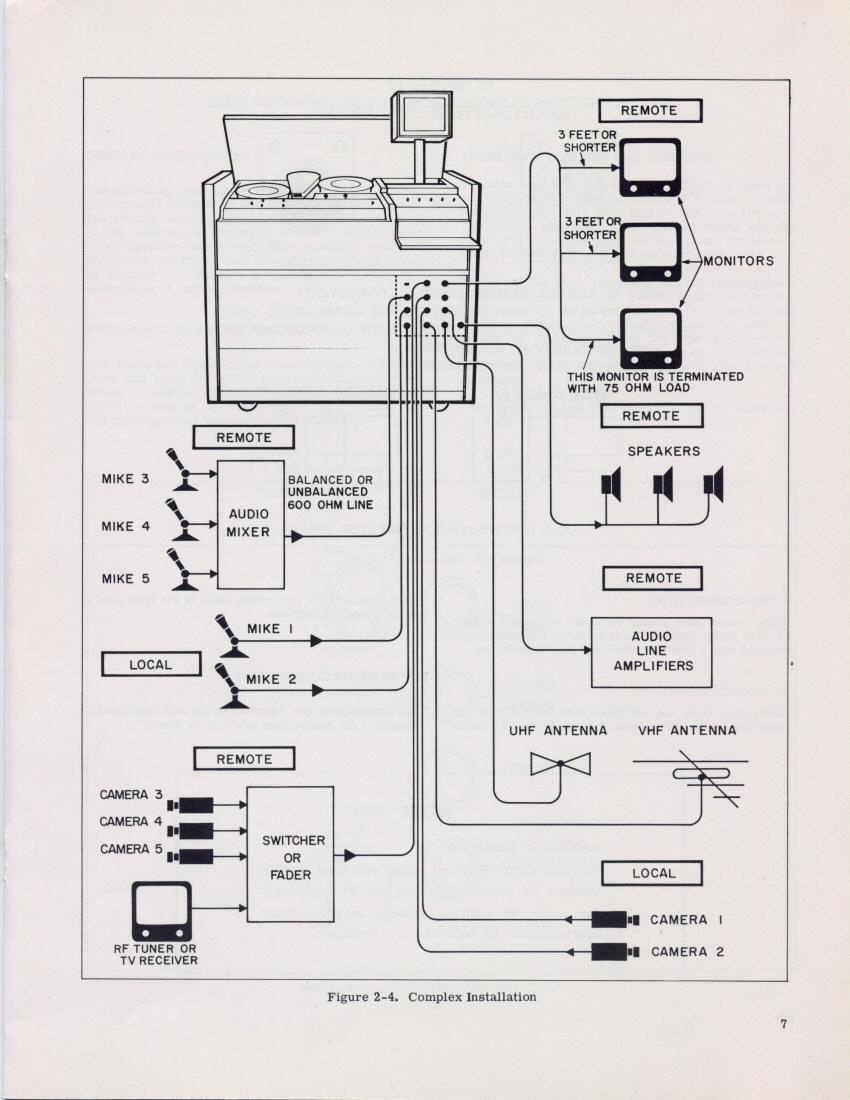

Page 7
Click to view full size. Back button to return.
Page 8		 Click to view full size. Back button to return.

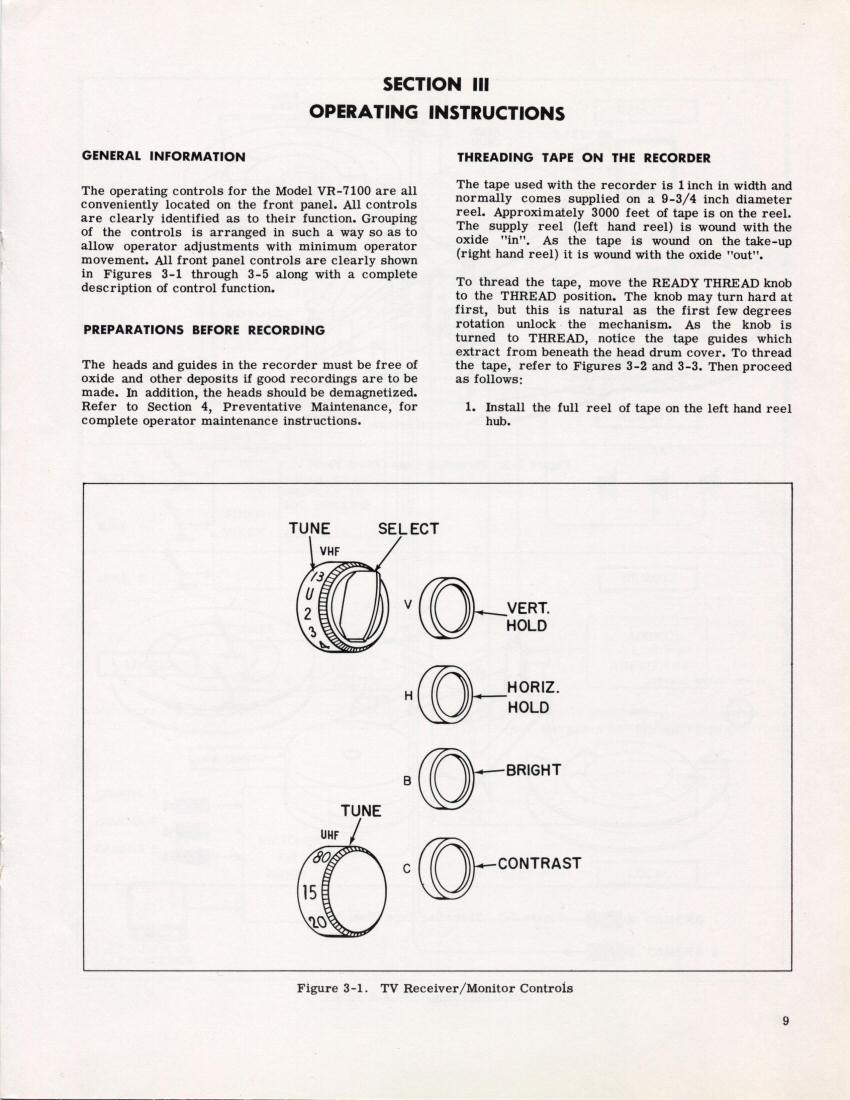

Page 9
Click to view full size. Back button to return.

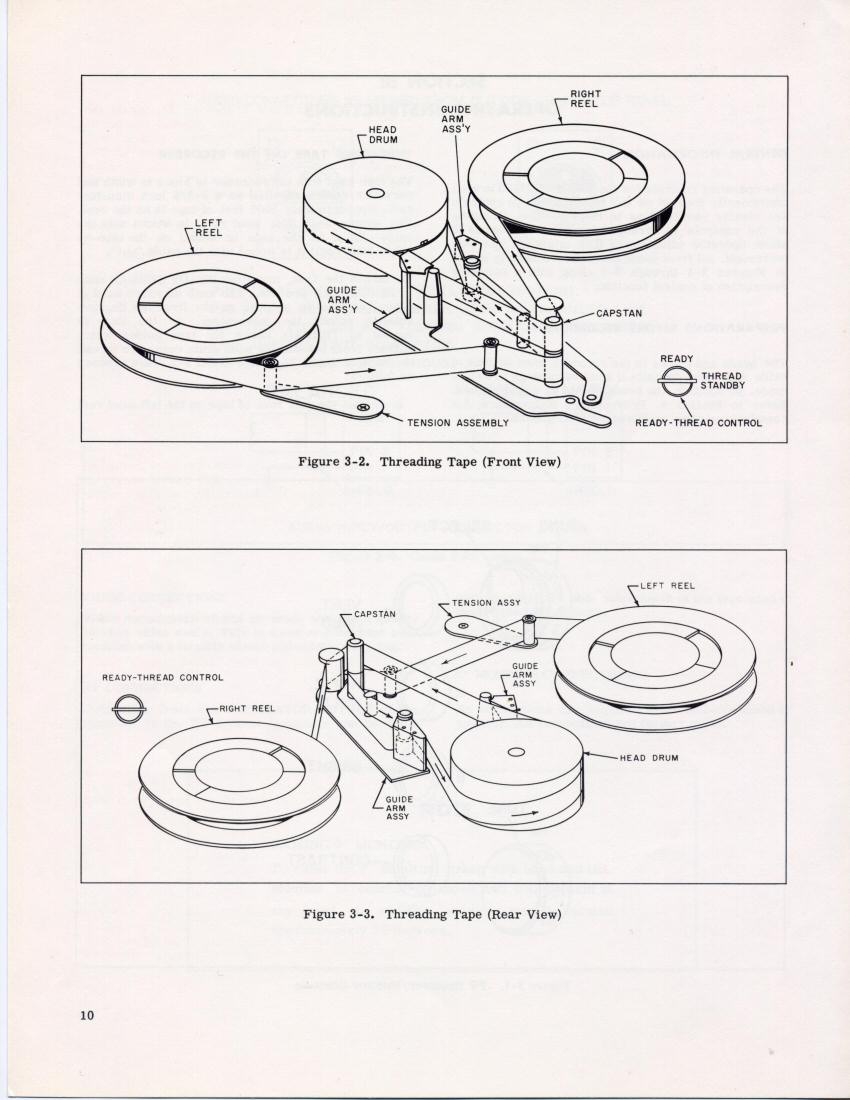

Page 10		 Click to view full size. Back button to return.

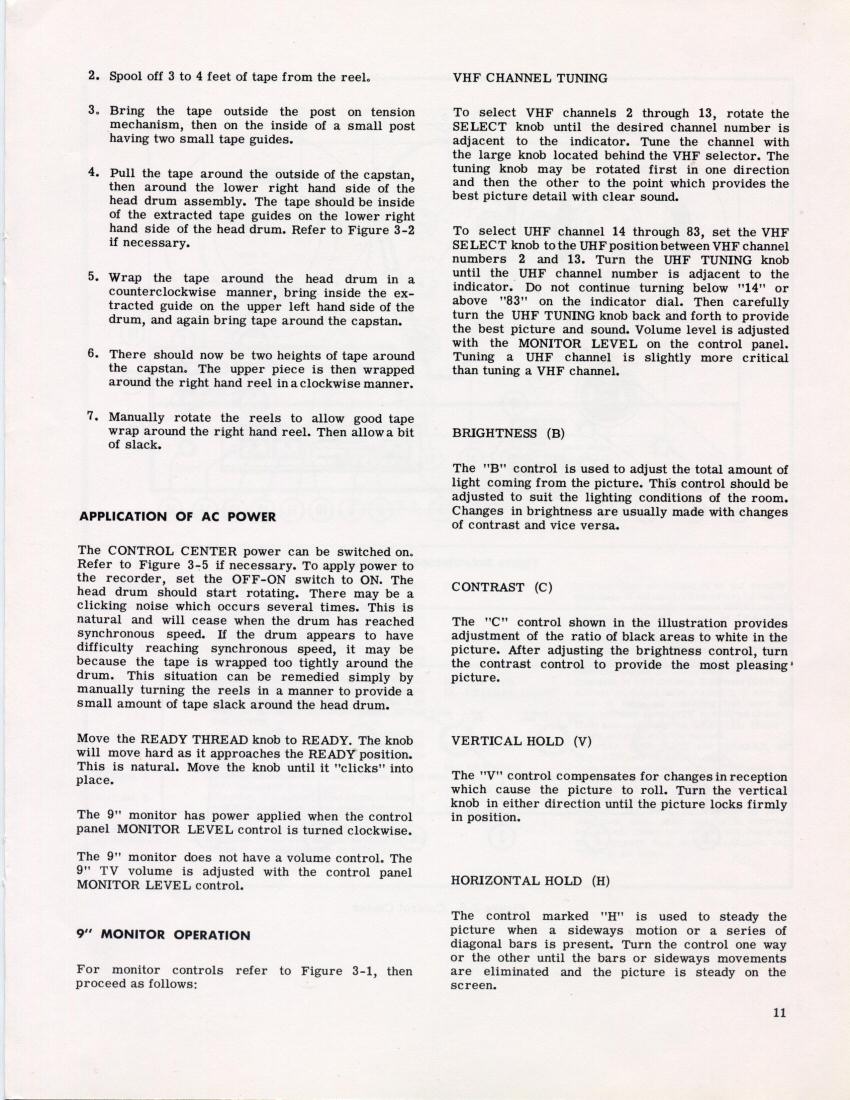

Page 11
Click to view full size. Back button to return.

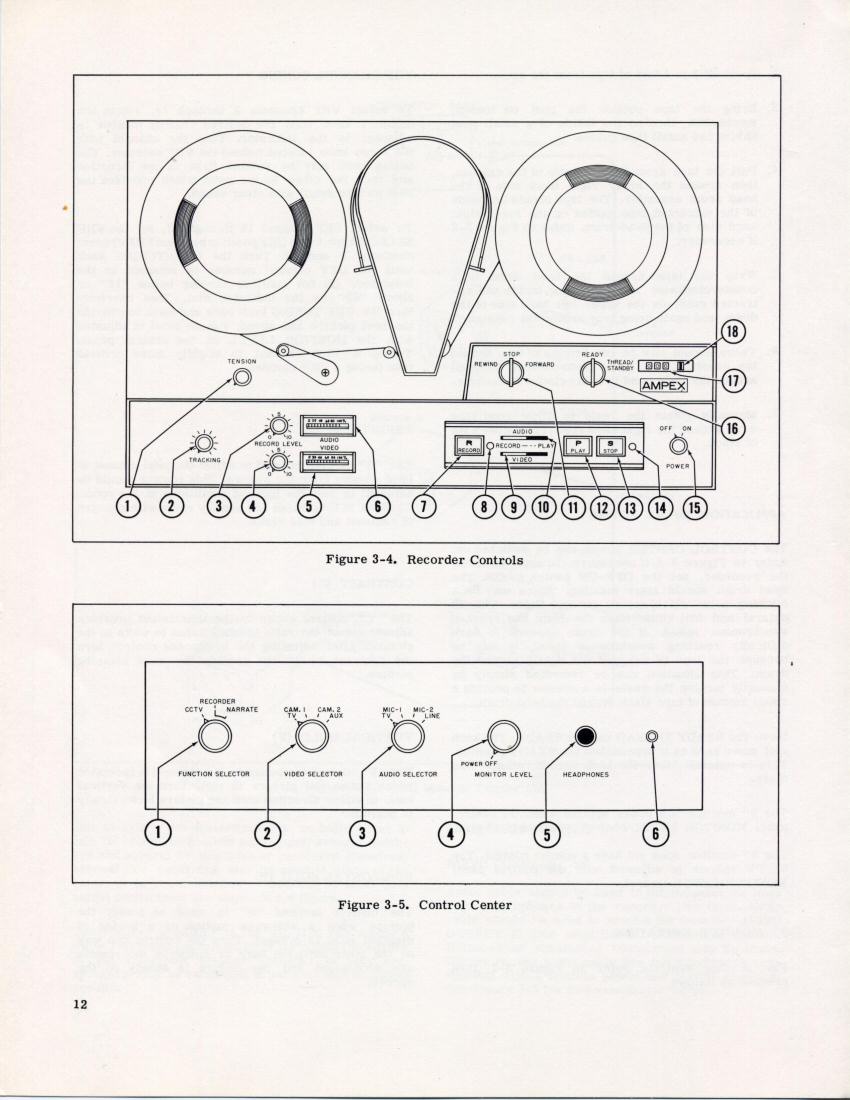

Page 12		 Click to view full size. Back button to return.

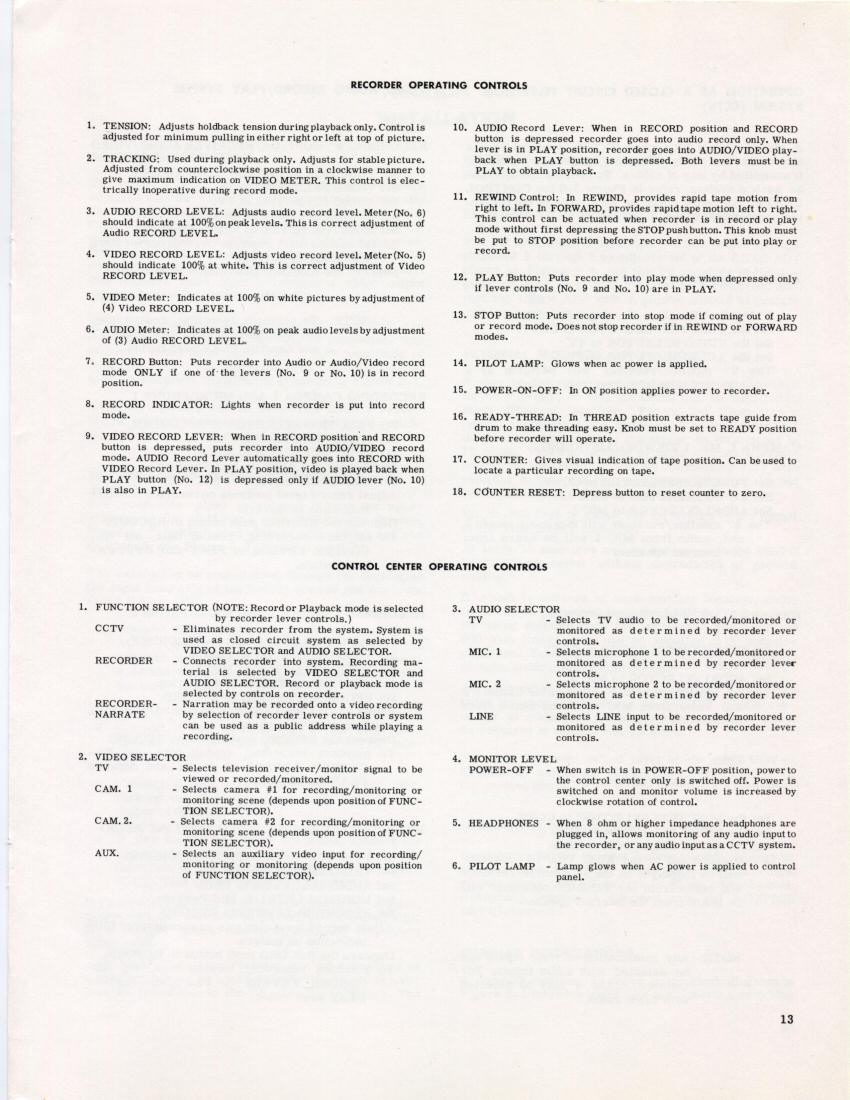

Page 13
Click to view full size. Back button to return.

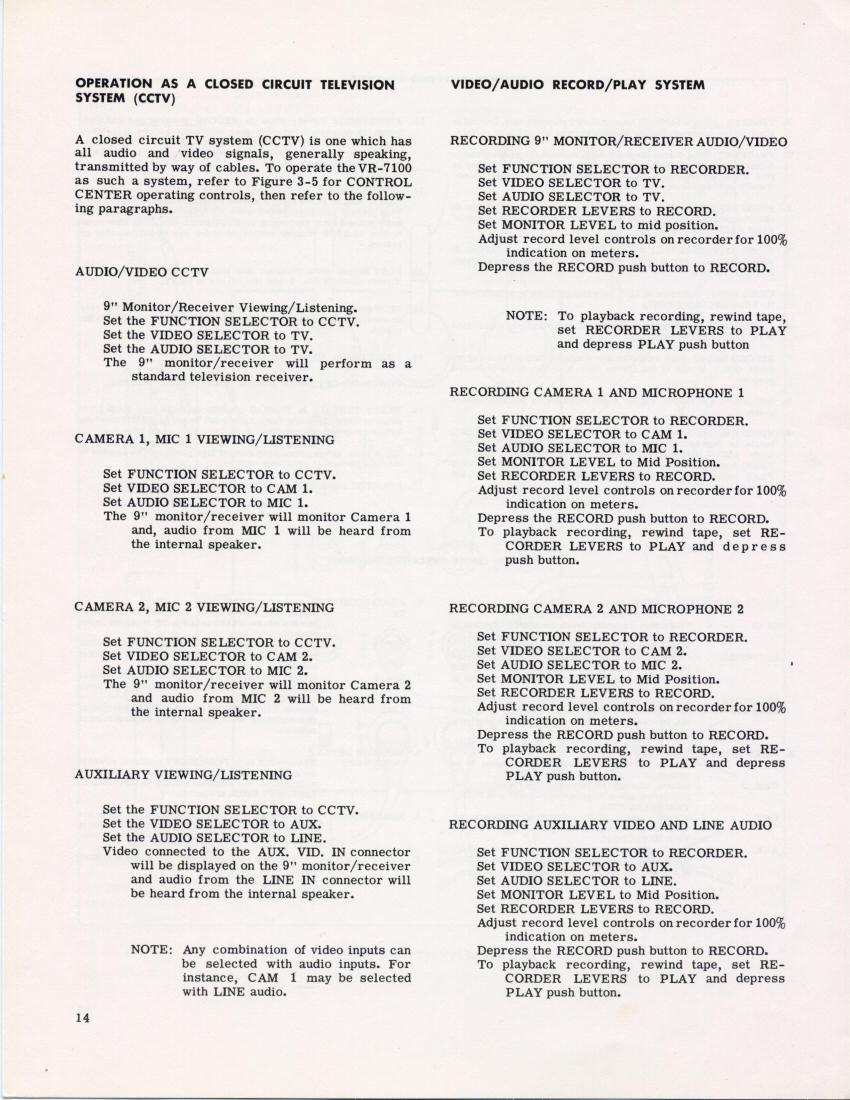

Page 14		 Click to view full size. Back button to return.

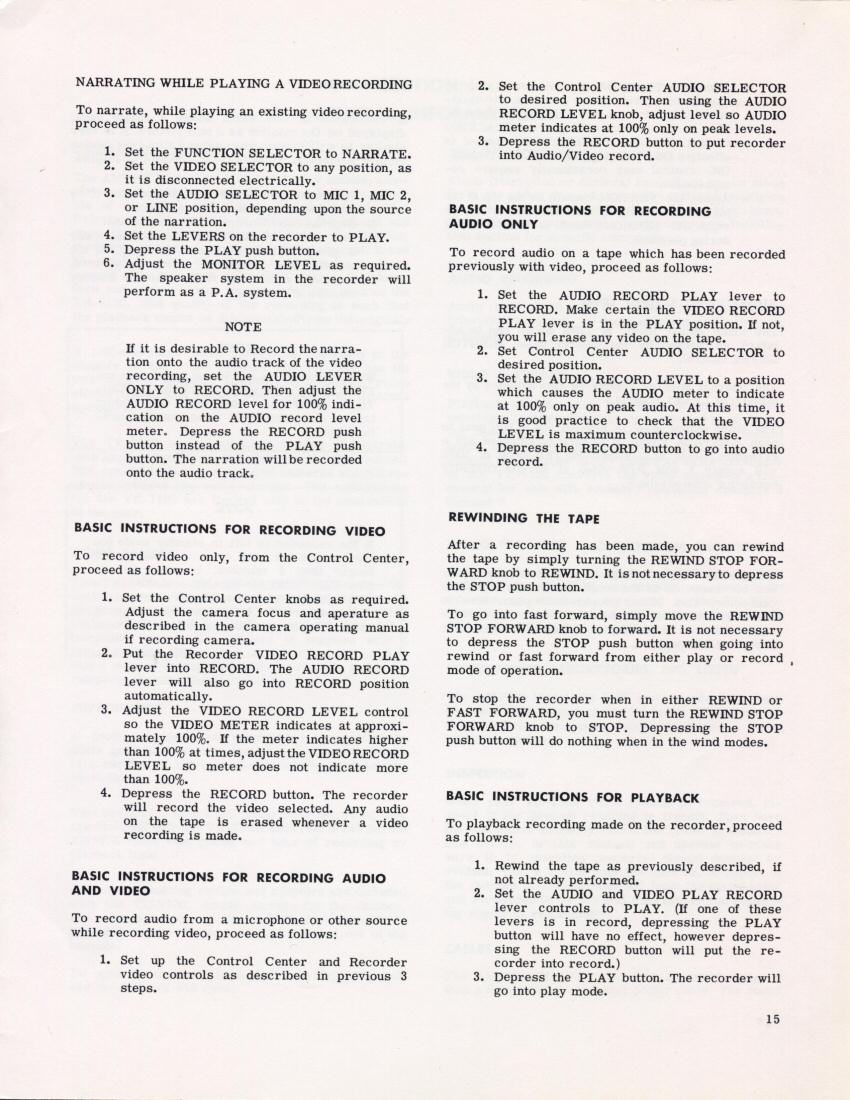

Page 15
Click to view full size. Back button to return.

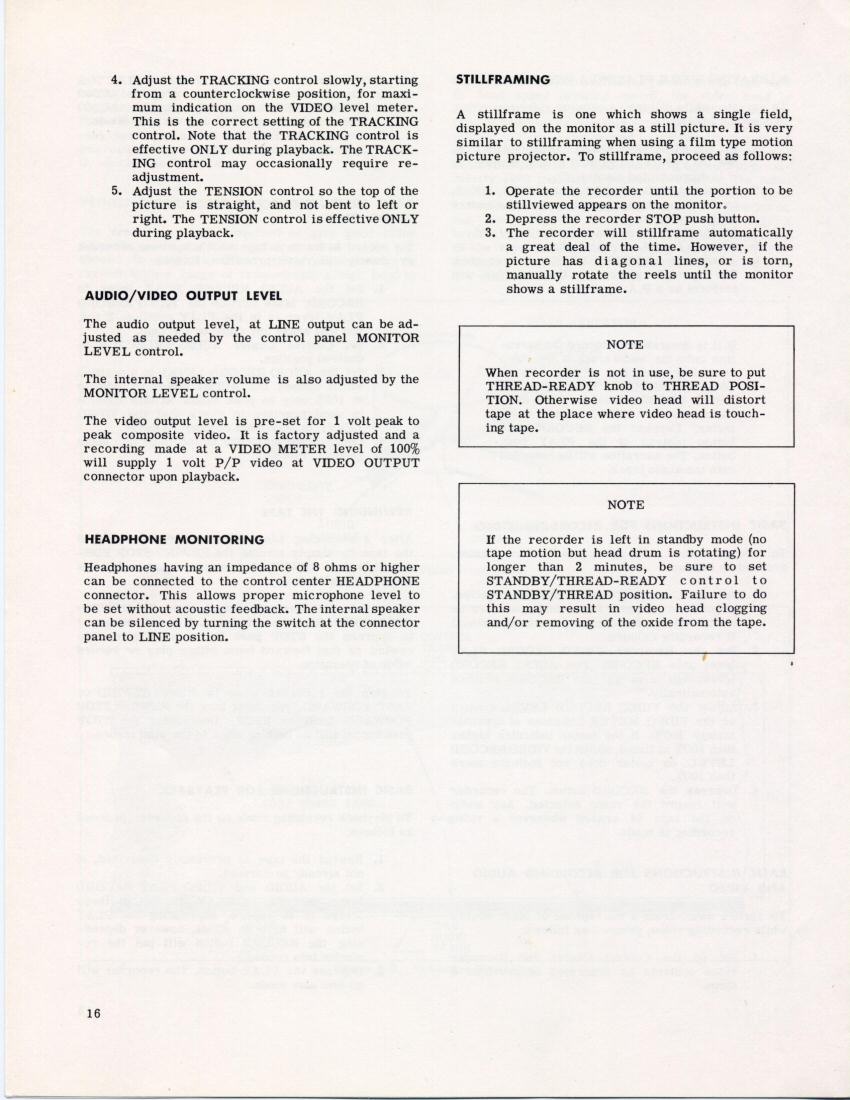

Page 16		 Click to view full size. Back button to return.

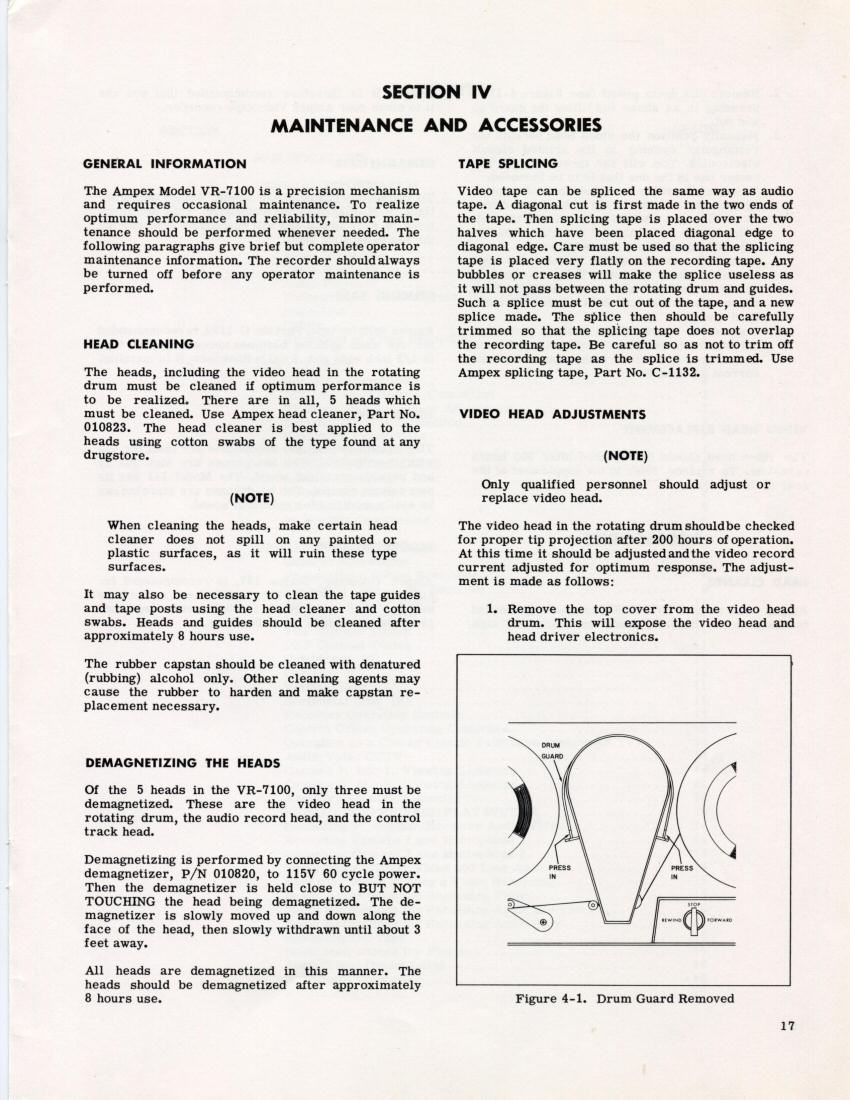

Page 17
Click to view full size. Back button to return.

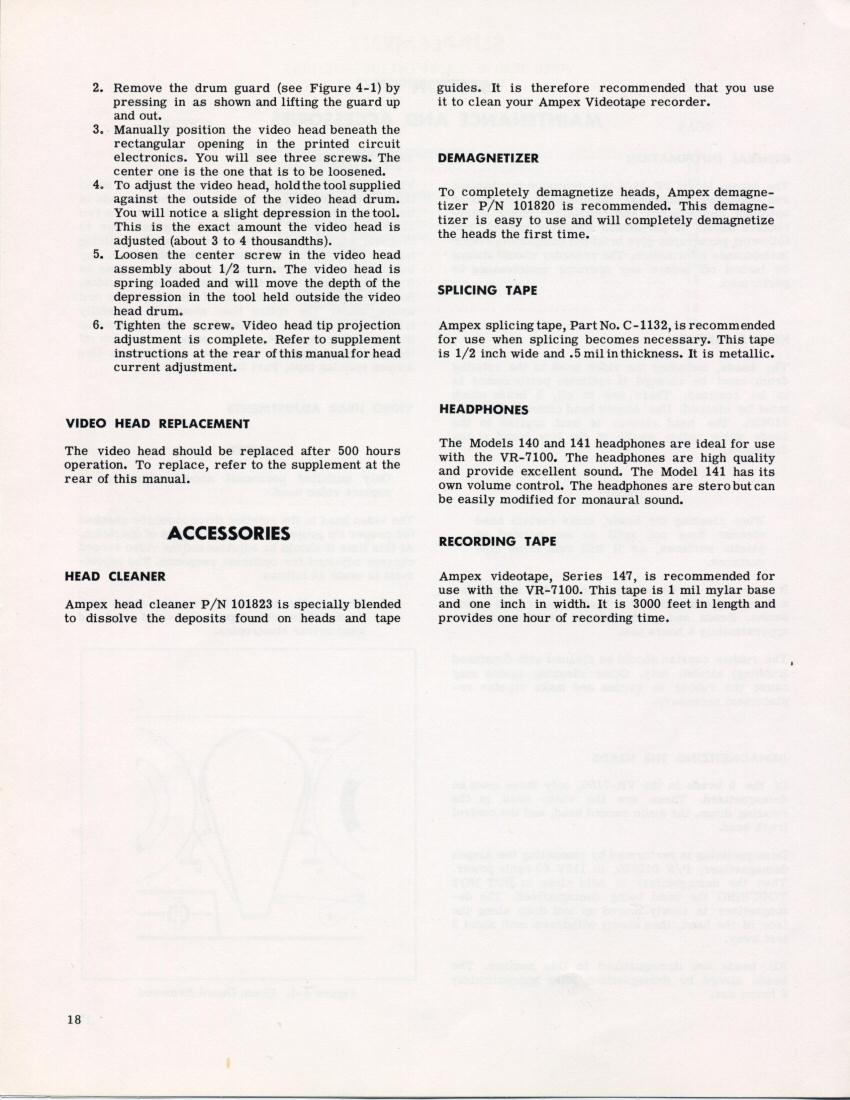

Page 18
Click to view full size. Back button to return.

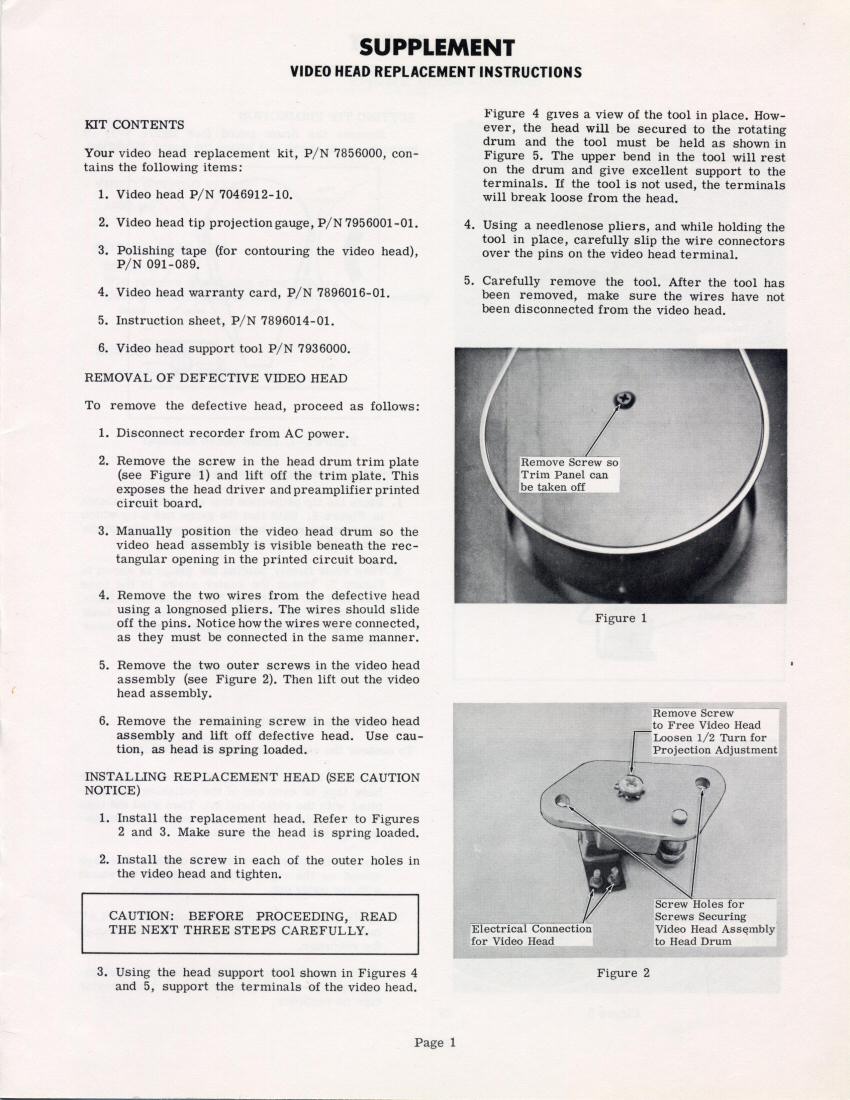

Supplement Page 1
Click to view full size. Back button to return.
Supplement Page 2
Click to view full size. Back button to return.

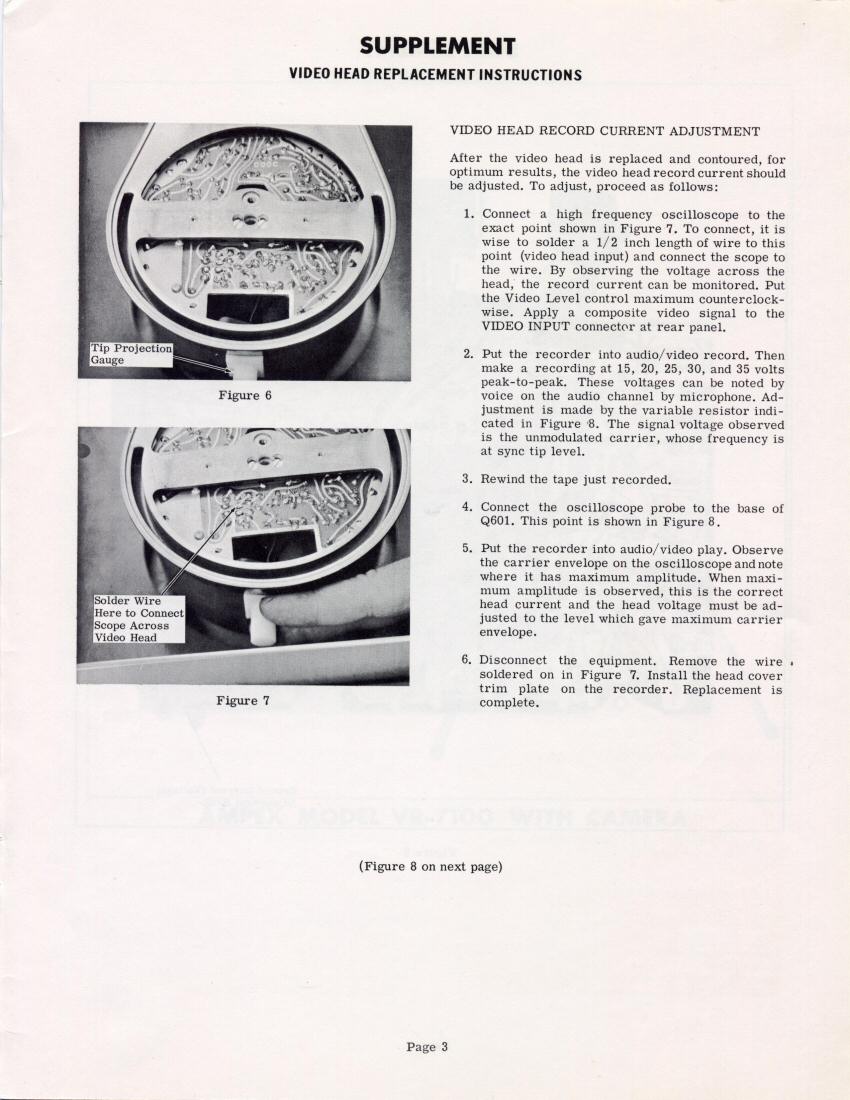

Supplement Page 3
Click to view full size. Back button to return.

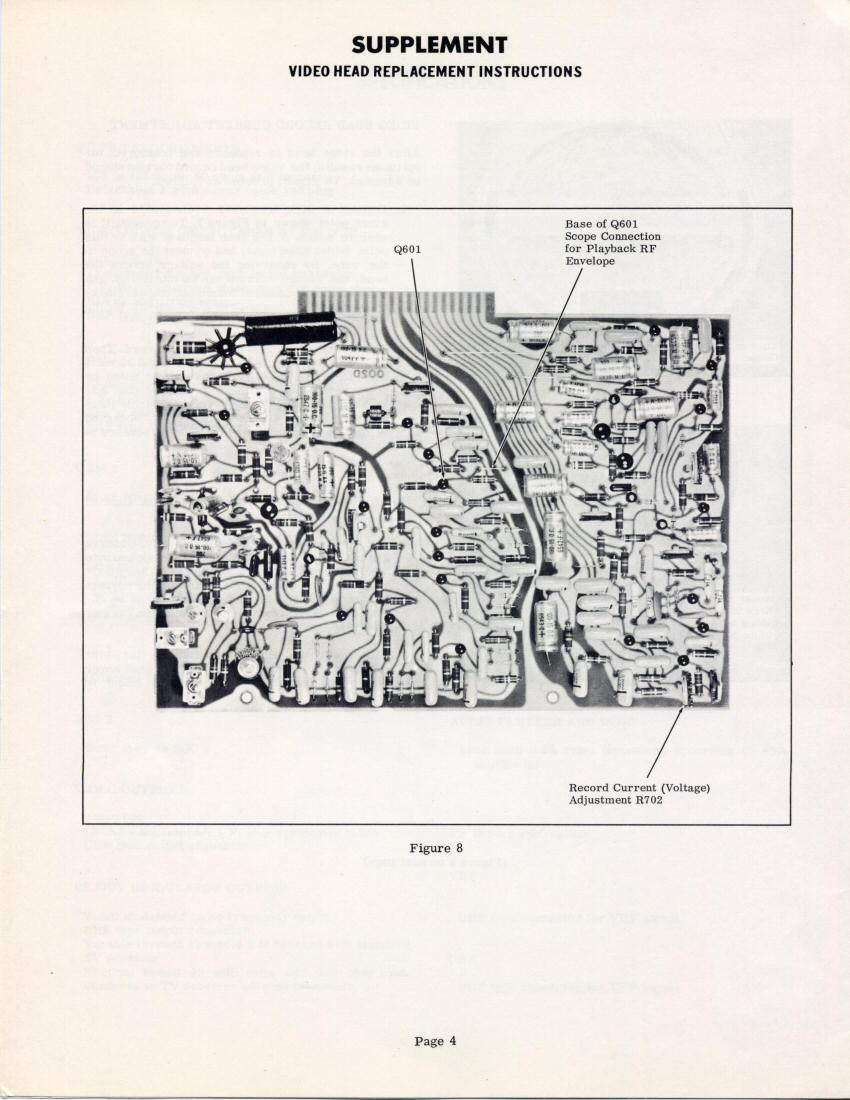

Supplement Page 4
Click to view full size. Back button to return.

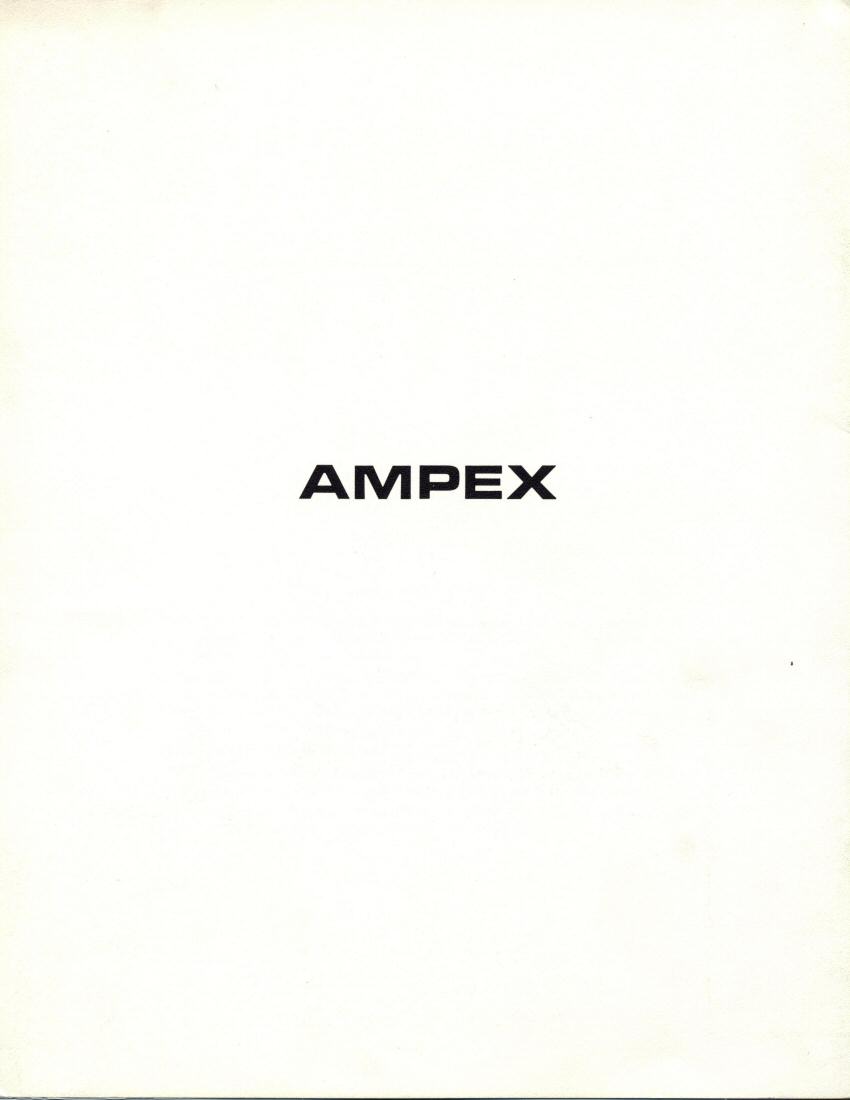

Back Cover
Click to view full size. Back button to return.

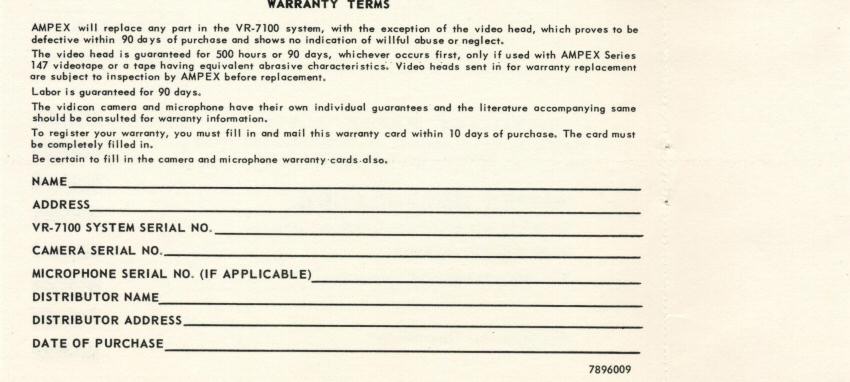

Warranty Post Card Front
Click to view full size. Back button to return.
Warranty Post Card Back
